HydroDrive (5900806) - Ferris HydroDrive Series 48" Walk-Behind Mower, 16hp Engine Deck Group (S/N: 2013700899 & Below) Parts Diagram

HydroDrive Series 48" Walk-Behind Mower, 16hp

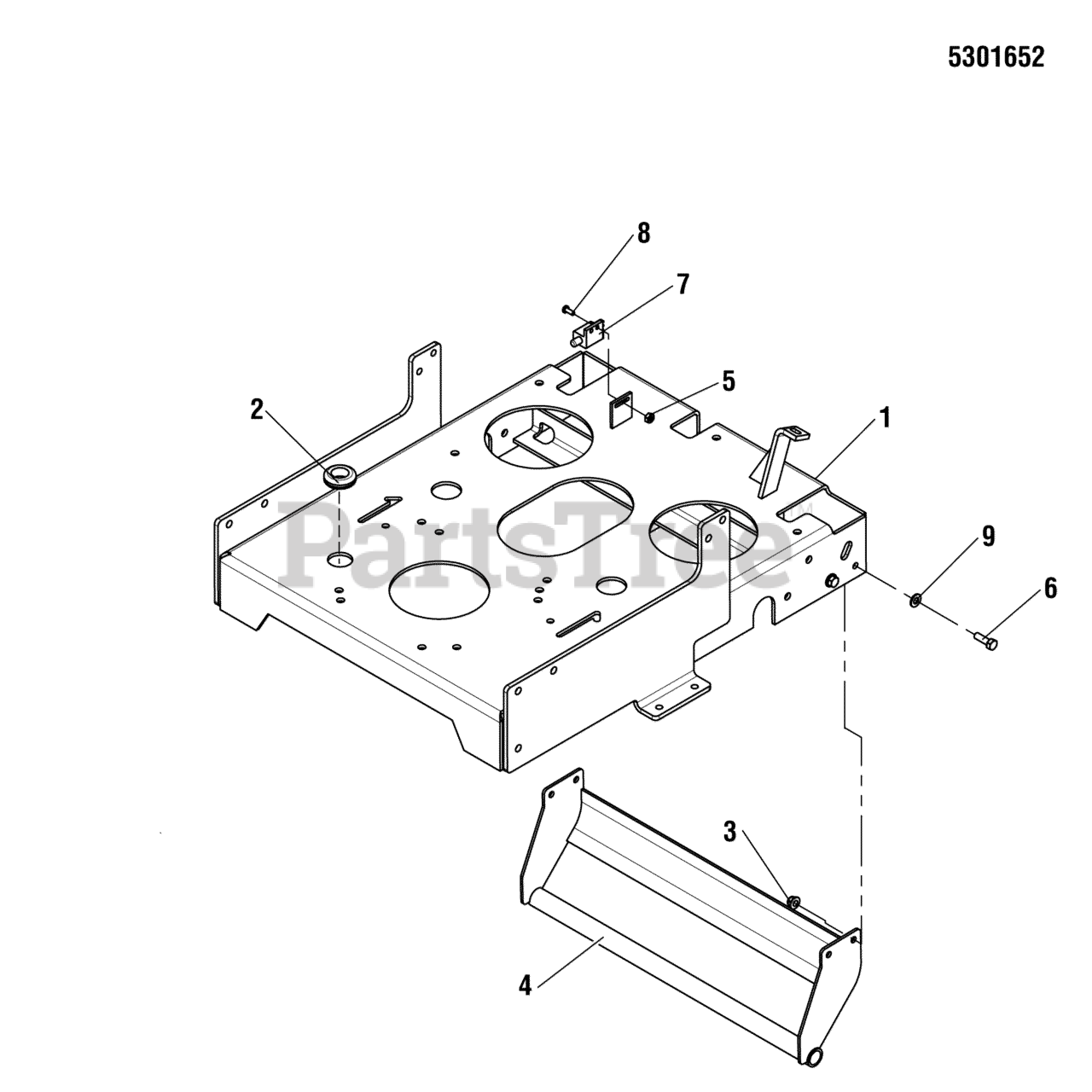

Engine Deck Group (S/N: 2013700899 & Below) Parts Diagram

  • Title

1

Ferris 5403082B

WELD, ENGINE DECK, SNP PRO WB - RED

$1054.99

$

Usually ships in 2-12 days

0

2

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

3

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5403441B

WELD, BUMPER - SNP PRO DDS - RED

$76.99

$

Usually ships in 2-12 days

0

5

Ferris 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

6

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

8

Ferris 5025179X4

SCREW, #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
