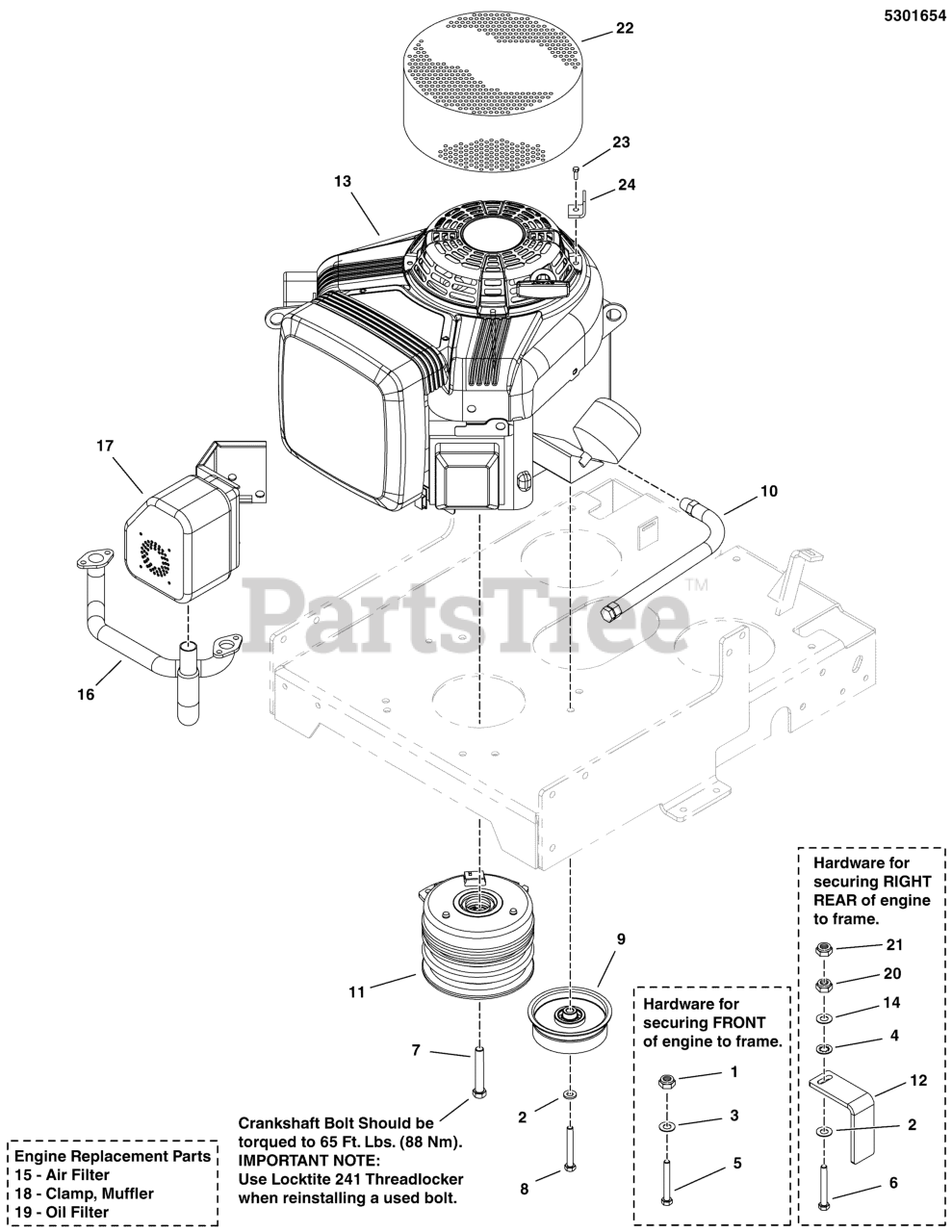

HydroDrive (5900806) - Ferris HydroDrive Series 48" Walk-Behind Mower, 16hp Engine & PTO Group - Briggs & Stratton Parts Diagram

HydroDrive Series 48" Walk-Behind Mower, 16hp

Engine & PTO Group - Briggs & Stratton Parts Diagram

  • Title

1

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 5025292

WASHER, 5/16 GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

5

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

$5.49

$

Usually ships in 2-12 days

0

8

Ferris 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

In Stock, only 1 left!

0

9

Ferris 5103808

PULLEY, IDLER, SINGLE FLANGE

$

$

Currently unavailable

10

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

11

Ferris 5102217

CLUTCH, WARNER, 125 ft lbs - 1"

$373.99

$

Usually ships in 2-12 days

0

12

Ferris 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

13

ENGINE, BRIGGS, VANGUARD

$

$

Not available

14

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 841359

AIR FILTER

$33.99

$

Usually ships in 2-12 days

0

16

Ferris 805778X

MANIFOLD, EXHAUST

$

$

Currently unavailable

17

Ferris 807953X

MUFFLER, EXHAUST

$

$

Currently unavailable

18

Ferris 807595

CLAMP, MUFFLER ASSEMBLY
(Superseded to 690898)

$14.99

$

Usually ships in 2-12 days

0

19

Ferris 842921

OIL FILTER

$14.99

$

In Stock, Qty 20+

0

20

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

In Stock, only 1 left!

0

21

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 844596

GUARD, DEBRIS ASSY

$

$

Currently unavailable

23

Ferris 94896

SCREW, TAPPING HEX
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

24

Ferris 844595

BRACKET, MOUNTING

$

$

Currently unavailable
