HydroDrive (5900806) - Ferris HydroDrive Series 48" Walk-Behind Mower, 16hp Front Frame Group Parts Diagram

HydroDrive Series 48" Walk-Behind Mower, 16hp

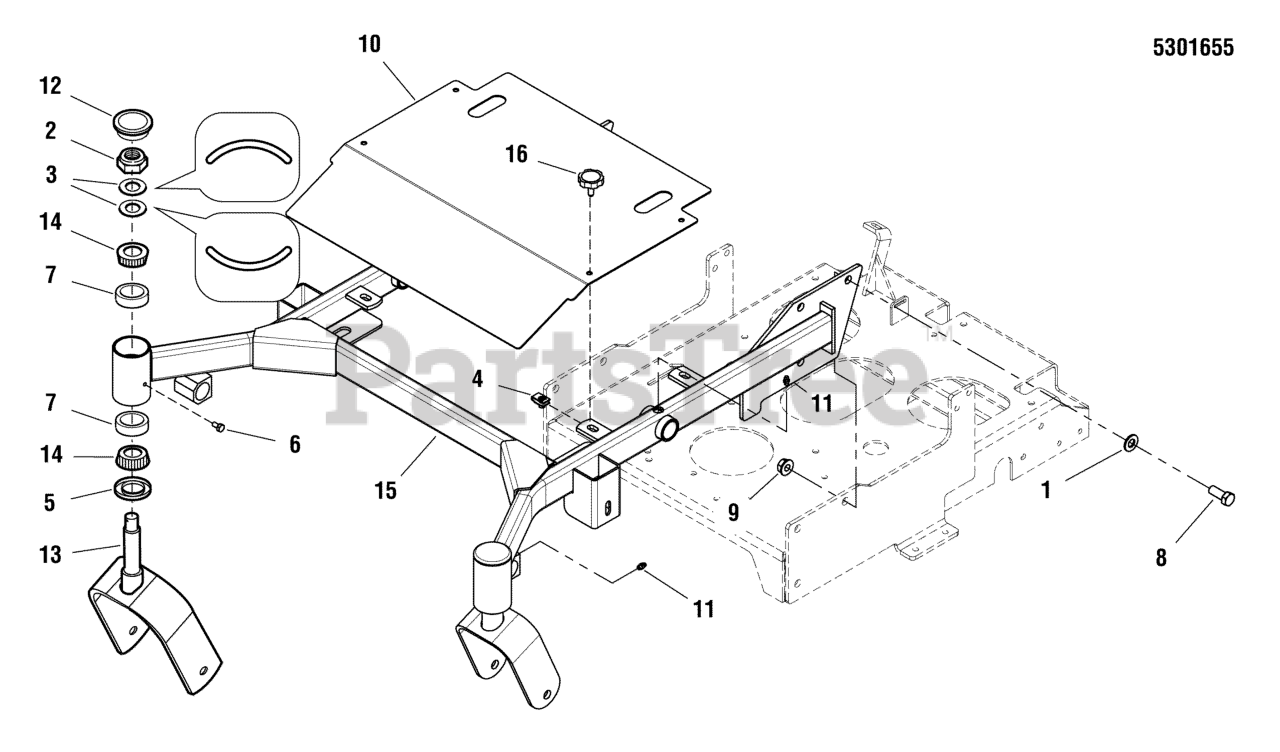

Front Frame Group Parts Diagram

  • Title

1

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

2

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, only 3 left!

0

3

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

In Stock, only 4 left!

0

4

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

5

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

Usually ships in 2-12 days

0

6

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 1 left!

0

7

Ferris 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

8

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

10

Ferris 5404846B

GUARD, DECK LIFT, 48 - RED

$75.99

$

Usually ships in 2-12 days

0

11

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, only 3 left!

0

13

Ferris 5407308B

WELD, CASTER YOKE, SNP DD - RED
(Superseded to 5407308BFS)

$121.99

$

Usually ships in 2-12 days

0

14

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, only 3 left!

0

15

Ferris 5404845B

WELD, FRONT FRAME, HYDRODRIVE1648 - RED

$

$

Currently unavailable

16

Ferris 5101731

KNOB, 5/16-18 X 1.00 ROSETTE, BLK
(Superseded to 5101731YP)

$10.99

$

Usually ships in 2-12 days

0
