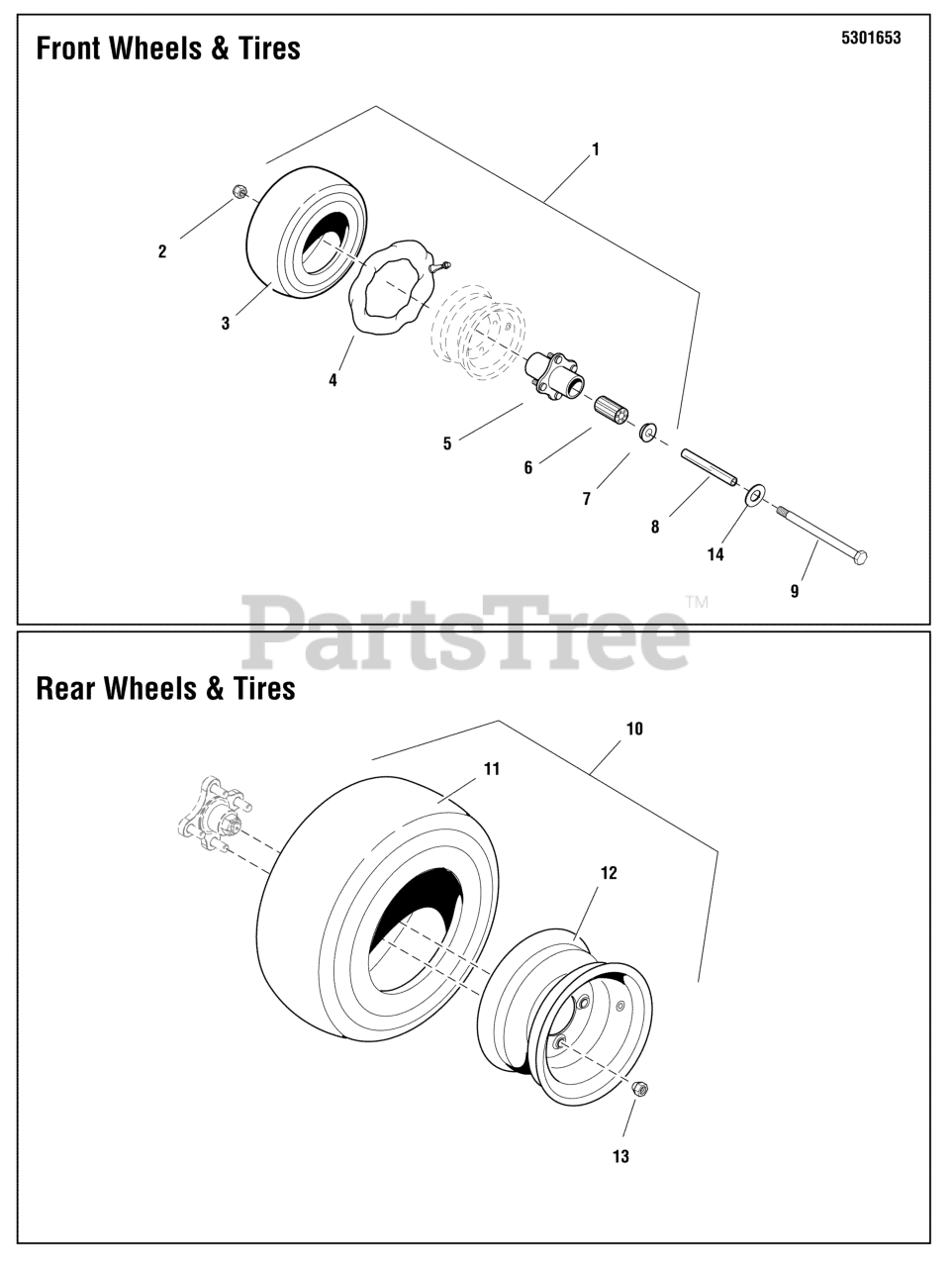

HydroDrive (5900806) - Ferris HydroDrive Series 48" Walk-Behind Mower, 16hp Tire & Wheel Group Parts Diagram

HydroDrive Series 48" Walk-Behind Mower, 16hp

Tire & Wheel Group Parts Diagram

  • Title

1

Ferris 5021181S

TIRE ASSM, 9 X 3.5 X 4, SILVER
(Superseded to 5021181SSM)

$100.99

$

In Stock, only 4 left!

0

2

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

3

Ferris 5021181X1

TIRE, FRONT 9 X 3.5 X 4 (SV)

$

$

Currently unavailable

4

Ferris 5021181X2

TUBE (SV)

$

$

Currently unavailable

5

Ferris 5021181X3

HUB & BEARING ASSEMBLY (SV)

$47.99

$

Usually ships in 2-12 days

0

6

Ferris 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)

$

$

Currently unavailable

7

Ferris 5021043

RETAINER, BEARING (TWO PER TIRE)(SV)

$6.99

$

Usually ships in 2-12 days

0

8

Ferris 5041657

AXLE, CASTER WHEEL
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

9

Ferris 5025017X44

BOLT, 1/2-13 X 5-1/2" GD5 YZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

10

Ferris 5021045S

TIRE, 18 X 8.5 X 8, 4 PLY

$367.99

$

Usually ships in 2-12 days

0

11

Ferris 5021074

TIRE ONLY (SV)

$210.99

$

Usually ships in 2-12 days

0

12

Ferris 5021205S

WHEEL ONLY (SV)

$94.99

$

Usually ships in 2-12 days

0

13

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0

14

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0
