HydroWalk DD (DD61KAE) - Ferris HydroWalk DD Series 61" Walk-Behind Mower, 17hp Kawasaki Electrical Schematic - DD 17HP Kawasaki Electric Start (Glass-Type Fuse Block) Parts Diagram

HydroWalk DD Series 61" Walk-Behind Mower, 17hp Kawasaki

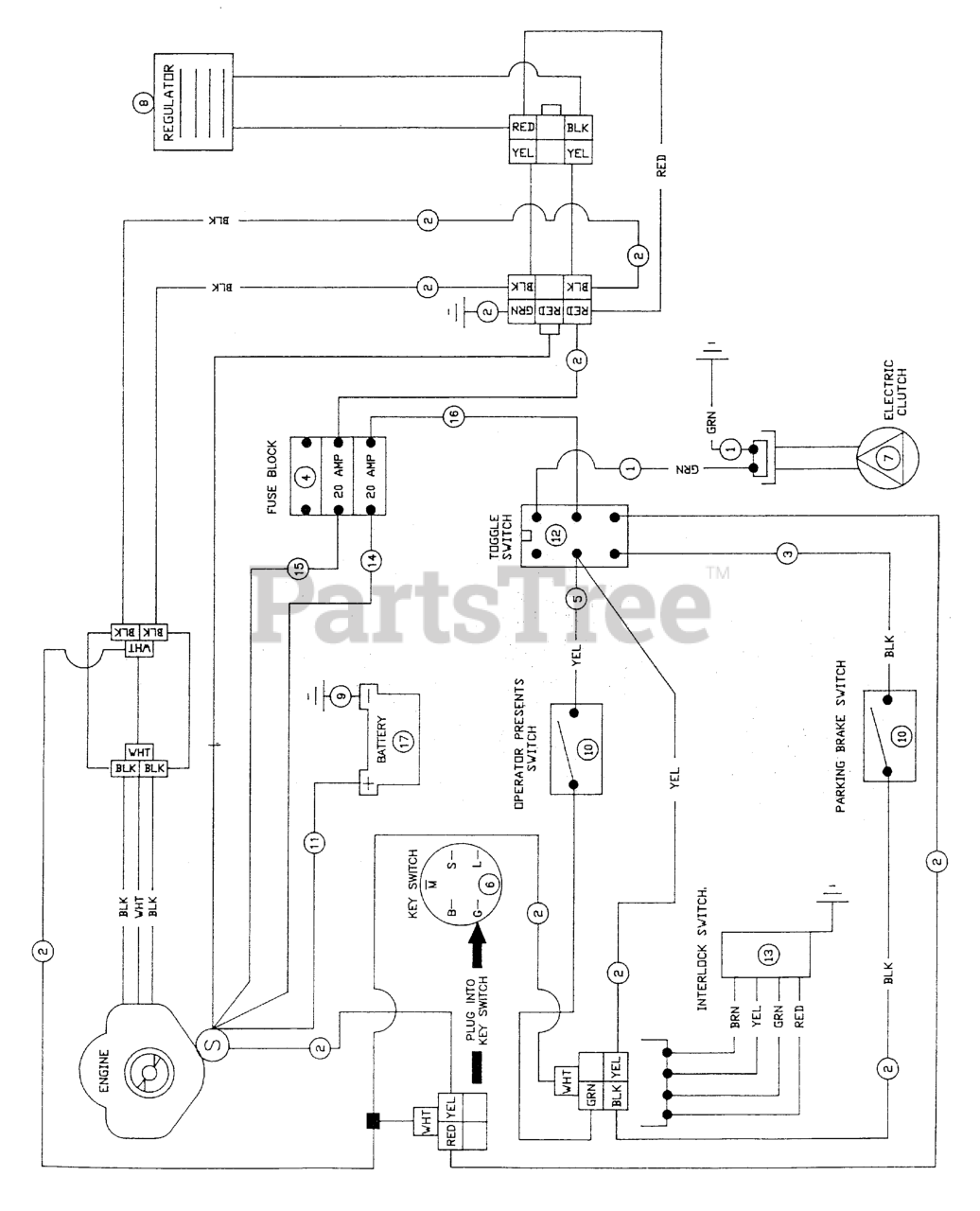

Electrical Schematic - DD 17HP Kawasaki Electric Start (Glass-Type Fuse Block) Parts Diagram

  • Title

1

Ferris 5043526

Electric Clutch Harness

$30.99

$

Usually ships in 2-12 days

0

2

Ferris 5043531

Main Wire Harness

$125.99

$

Usually ships in 2-12 days

0

3

Ferris 43423

Black Wire Assembly

$

$

Currently unavailable

4

Ferris 5020918

Fuse Block

$

$

Currently unavailable

4

Ferris 5020934

20 Amp Fuse

$

$

Currently unavailable

5

Ferris 5043522

Yellow Wire Assembly

$

$

Currently unavailable

6

Ferris 5020836

SWITCH, Ignition

$54.99

$

Usually ships in 2-12 days

0

7

Ferris 5021083

CLUTCH, Electric, 1" Shaft
(Superseded to 5021083SM)

$683.99

$

Usually ships in 2-12 days

0

8

REGULATOR, Kawasaki #21066-2070

Note: (Not a serviceable part)

$

$

Not available

9

Ferris 5043519

Negative Battery Cable

$

$

Currently unavailable

10

Ferris 5021451

SWITCH, Plunger, NO
(Superseded to 5021451SM)

$11.99

$

In Stock, only 2 left!

0

11

Ferris 5043520

Positive Battery Cable

$

$

Currently unavailable

12

Ferris 5021213

Toggle Switch

$56.99

$

Usually ships in 2-12 days

0

12

Ferris 5021093

Switch Guard

Note: (Not Shown)

$

$

Currently unavailable

13

Ferris 5021452

Saftey Interlock

$68.99

$

Usually ships in 2-12 days

0

14

Ferris 5043525

Red Wire Assembly

$

$

Currently unavailable

15

Ferris 43524

Red Wire Assembly

$

$

Currently unavailable

16

Ferris 43521

Red Wire Assembly

$

$

Currently unavailable

17

BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA)

Note: (Not a serviceable part)

$

$

Not available
