HydroWalk SD (5901045) - Ferris HydroWalk SD Series 32" Walk-Behind Mower, 15hp Kawasaki 32" & 36" Mower Deck - Frame, Caster & Shield Parts Diagram

HydroWalk SD Series 32" Walk-Behind Mower, 15hp Kawasaki

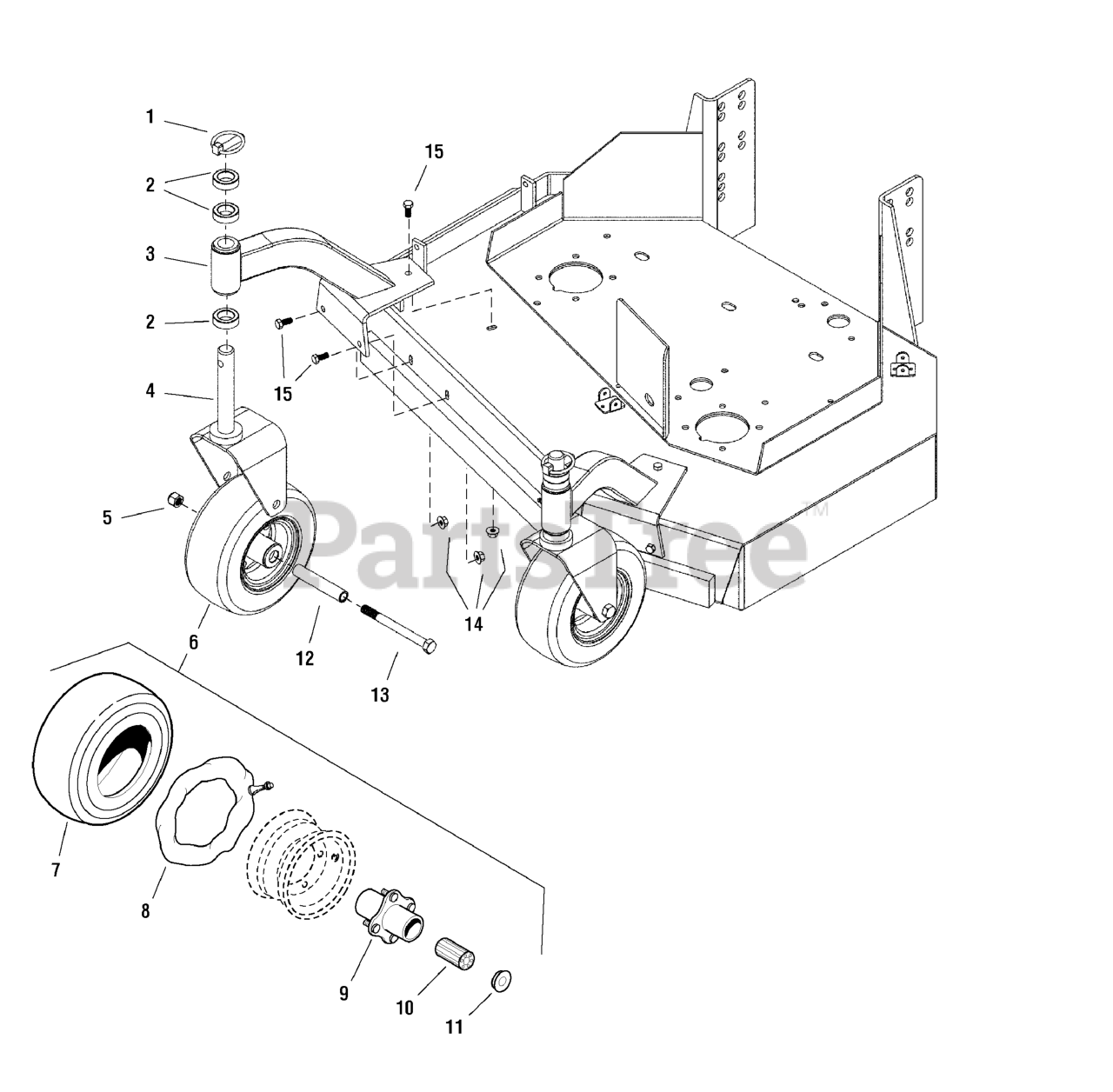

32" & 36" Mower Deck - Frame, Caster & Shield Parts Diagram

  • Title

1

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 4 left!

0

2

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

Usually ships in 2-12 days

0

3

Ferris 5043887

CASTER MOUNT, Complete
(Superseded to 5043887FS)

$251.99

$

Usually ships in 2-12 days

0

3

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

3

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

5

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

6

Ferris 5021181S

TIRE ASSM, 9 X 3.5 X 4, SILVER
(Superseded to 5021181SSM)

Note: (Includes Ref No. 7 - 11)

$100.99

$

In Stock, only 4 left!

0

7

Ferris 5021181X1

TIRE, Front, 9 x 3.5 x 4

$

$

Currently unavailable

8

Ferris 5021181X2

TUBE

$

$

Currently unavailable

9

Ferris 5021181SX3

HUB & BEARING ASSEMBLY, Complete, Silver
(Superseded to 5021181SX3SM)

Note: (Includes Ref No. 10 & 11)

$59.99

$

Usually ships in 2-12 days

0

10

Ferris 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)

Note: (1 per tire)

$

$

Currently unavailable

11

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

12

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

13

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

14

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0
