HydroWalk SD (5901045) - Ferris HydroWalk SD Series 32" Walk-Behind Mower, 15hp Kawasaki 32" & 36" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

HydroWalk SD Series 32" Walk-Behind Mower, 15hp Kawasaki

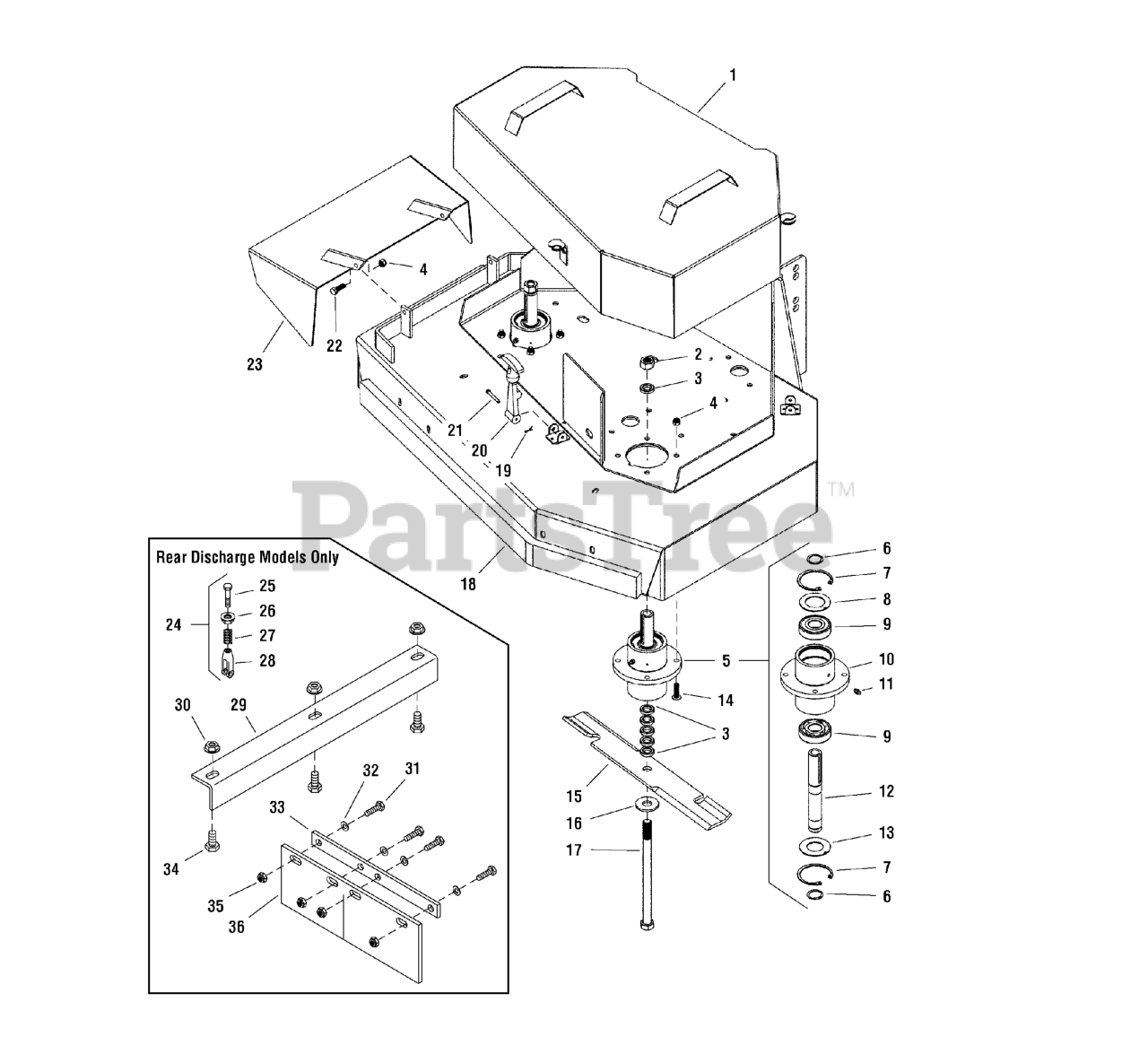

32" & 36" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Ferris 5045373B

GUARD, 36"

$

$

Currently unavailable

1

Ferris 5030575B

32" DECK GUARD

$

$

Currently unavailable

2

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, only 1 left!

0

3

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

4

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

6

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

7

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

9

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

10

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

11

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

12

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

14

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, Qty 5

0

15

Ferris 5021227

MOWER BLADE, 18"
(Superseded to 5021227ASM)

Note: (36" mower)

$25.99

$

In Stock, Qty 6

0

15

Ferris 5023271

MOWER BLADE, 18" SAND

Note: (36" Export mower)

$

$

Currently unavailable

15

Ferris 5020843

MOWER BLADE, 16-1/4"
(Superseded to 5020843ASM)

Note: (32" mower)

$24.99

$

Usually ships in 2-12 days

0

15

Ferris 5023270

MOWER BLADE, 16-1/4" SAND
(Superseded to 5020843ASM)

Note: (32" Export mower)

$24.99

$

Usually ships in 2-12 days

0

16

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

17

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

18

NLA - DECK SHELL W/DECALS, 36"", HW

Note: (Includes safety decals)

$

$

Not available

18

Ferris 5600252

DECK SHELL W/DECALS, 36" HW36 RD

$1196.99

$

Usually ships in 2-12 days

0

18

Ferris 5600250

DECK SHELL W/ DECALS, 32" HW32 RD

$1054.99

$

Usually ships in 2-12 days

0

19

Ferris 5020841X5

COTTER PIN
(Superseded to 5020841X5FS)

Note: (36" models)

$2.99

$

Usually ships in 2-12 days

0

19

Ferris 5020841X5

COTTER PIN
(Superseded to 5020841X5FS)

Note: (32" model)

$2.99

$

Usually ships in 2-12 days

0

20

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

Note: (36" Side Discharge model only)

$23.99

$

In Stock, only 1 left!

0

21

Ferris 5020841X4

PIN, Clevis
(Superseded to 5020841X4FS)

Note: (36" models)

$2.99

$

Usually ships in 2-12 days

0

21

Ferris 5020841X4

PIN, Clevis
(Superseded to 5020841X4FS)

Note: (32" model)

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5042565B

DISCHARGE CHUTE

$131.99

$

Usually ships in 2-12 days

0

24

Ferris 5060078

GUARD HOLD DOWN ASSEMBLY

Note: (36" model)

$

$

Not available

24

Ferris 5060078

GUARD HOLD DOWN ASSEMBLY

Note: (32" model)

$

$

Not available

25

Ferris 5025012X16

BOLT, 5/16-24 X 2

Note: (Qty. (1) per assembly)

$

$

Currently unavailable

26

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

Note: (1 per assembly)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5045298

SPRING, Guard Hold Down

Note: (1 per assembly)

$

$

Not available

28

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

Note: (1 per assembly)

$9.49

$

Usually ships in 2-12 days

0

29

Ferris 5042734B

BAFFLE, 36"

$142.99

$

Usually ships in 2-12 days

0

29

Ferris 5043614B

BAFFLE, 32"

$

$

Currently unavailable

30

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

33

Ferris 5042736B

FLAP SUPPORT

$

$

Currently unavailable

34

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

35

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5042974

RUBBER FLAP

$

$

Currently unavailable
