HydroWalk SD (5901045) - Ferris HydroWalk SD Series 32" Walk-Behind Mower, 15hp Kawasaki Blade Engagement Group Parts Diagram

HydroWalk SD Series 32" Walk-Behind Mower, 15hp Kawasaki

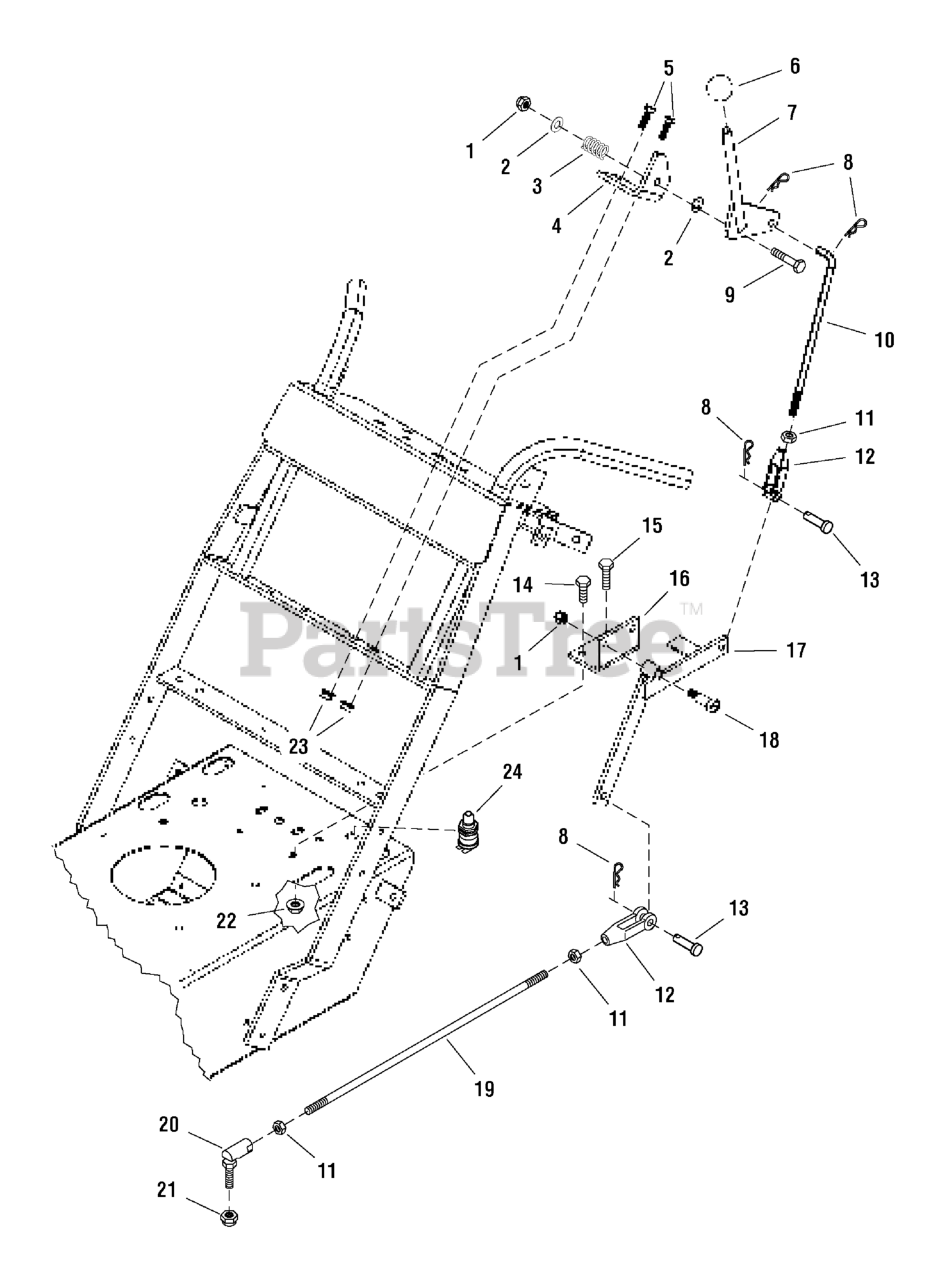

Blade Engagement Group Parts Diagram

  • Title

1

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5020808

SPRING, Compression

$

$

Currently unavailable

4

Ferris 5041491B

BRACKET, Shifter

$

$

Currently unavailable

5

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5021733

KNOB
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

7

Ferris 5042557B

LEVER, Blade Engagement

$

$

Currently unavailable

8

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

10

Ferris 5042380

ROD, Blade Engagement

$46.99

$

Usually ships in 2-12 days

0

11

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

13

Ferris 5025214X8

CLEVIS PIN, 3/8 x 1
(Superseded to 5025214X8FS)

$6.99

$

Usually ships in 2-12 days

0

14

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

15

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

16

Ferris 5044635B

PIVOT MOUNT

$

$

Currently unavailable

17

Ferris 5044634B

BLADE ENGAGEMENT PIVOT

$

$

Currently unavailable

18

Ferris 5025223

SHOULDER BOLT, 1/2 x 1
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

19

Ferris 5042553

ROD, Blade Engage

$

$

Currently unavailable

20

Ferris 5020805

BALL JOINT, 3/8" Female Studded
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

21

Ferris 5025097

NUT, 3/8-24 Hex Nylon Lock
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

22

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0
