HydroWalk SD (5901045) - Ferris HydroWalk SD Series 32" Walk-Behind Mower, 15hp Kawasaki Motion Control Group Parts Diagram

HydroWalk SD Series 32" Walk-Behind Mower, 15hp Kawasaki

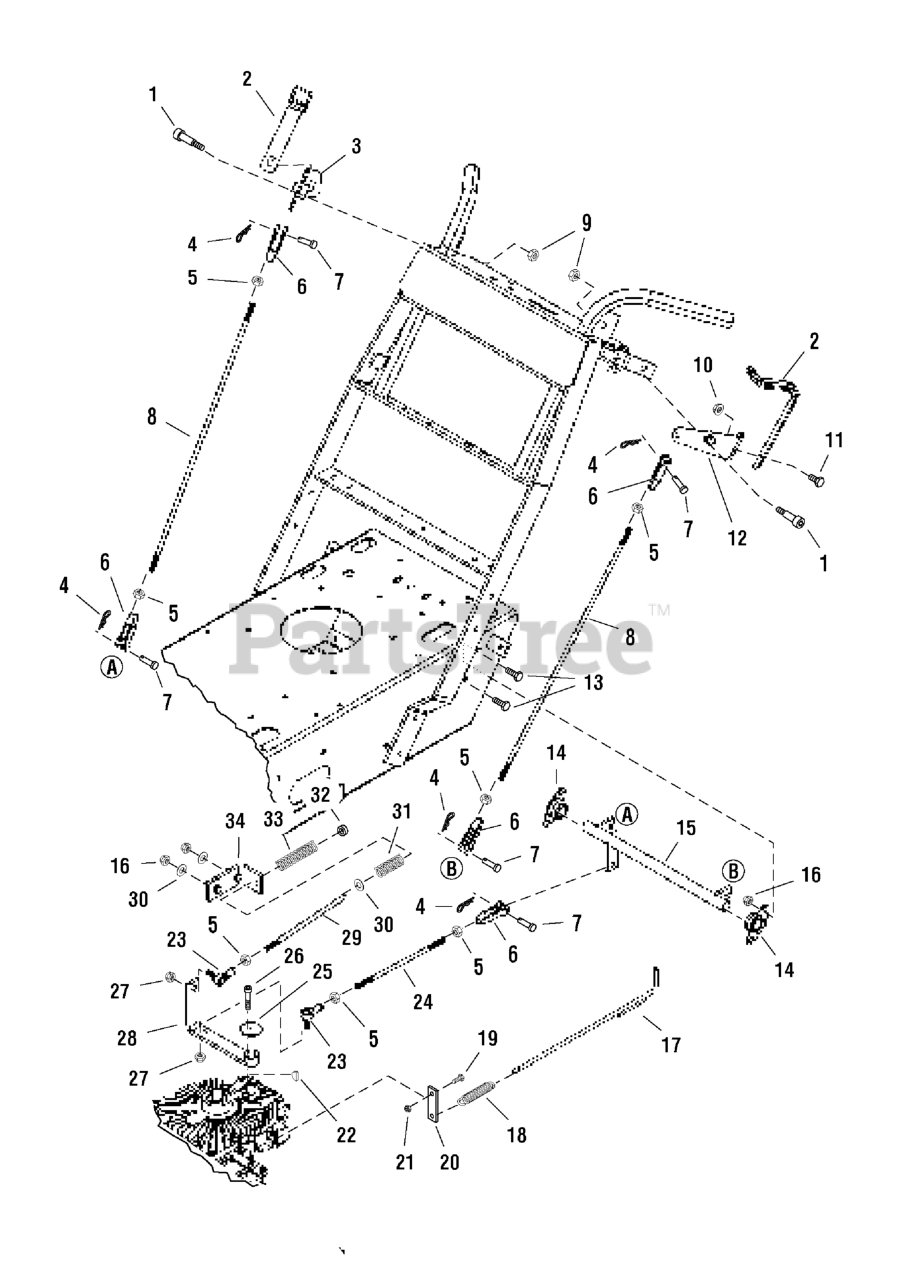

Motion Control Group Parts Diagram

  • Title

1

Ferris 5025223

SHOULDER BOLT, 1/2 x 1
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

2

Ferris 5048547

THUMB CONTROL LEVER, Complete

$

$

Not available

2

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, only 2 left!

0

3

Ferris 5048544B

PIVOT CONTROL - RH

$

$

Currently unavailable

4

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

5

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

7

Ferris 5025213X8

CLEVIS PIN, 5/16 x 1
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

8

Ferris 5042554

ROD, Thumb Control

$10.99

$

Usually ships in 2-12 days

0

9

Ferris 5025046

NUT, 3/8-16 Hex Top Lock
(Superseded to 5025046SM)

$3.49

$

In Stock, Qty 6

0

10

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 9

0

11

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

12

Ferris 5048545B

PIVOT CONTROL - LH

$26.99

$

Usually ships in 2-12 days

0

13

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

15

Ferris 5042533B

ROD, Transmission Control

$125.99

$

Usually ships in 2-12 days

0

16

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5042638B

DUMP VALVE ROD

$23.99

$

Usually ships in 2-12 days

0

18

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

19

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5042636

DUMP VALVE EXTENSION

$15.99

$

Usually ships in 2-12 days

0

21

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

22

Ferris 5020149

KEY, #3 Woodruff

$2.49

$

Usually ships in 2-12 days

0

23

Ferris 5104495

BALL JOINT 5/16-24 LH FEMALE W/STUD, BR
(Superseded to 5104495YP)

$22.99

$

Usually ships in 2-12 days

0

24

Ferris 5042924

ROD, Control

$

$

Currently unavailable

25

Ferris 5044577

WASHER, .265 x 1.50 x .109
(Superseded to 5044577SM)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5025269

BOLT, Allen Head, 1/4-20 x 1-1/2

$2.99

$

Usually ships in 2-12 days

0

27

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

28

Ferris 5042537B

CONTROL ARM

$

$

Currently unavailable

29

Ferris 5042551

ROD, Neutral

$

$

Currently unavailable

30

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

31

Ferris 5021004

SPRING, Compression

$5.99

$

Usually ships in 2-12 days

0

32

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

33

Ferris 5020637

SPRING, Compression
(Superseded to 5020637YP)

$5.99

$

Usually ships in 2-12 days

0

34

Ferris 5042550B

NEUTRAL BRACKET

$

$

Currently unavailable
