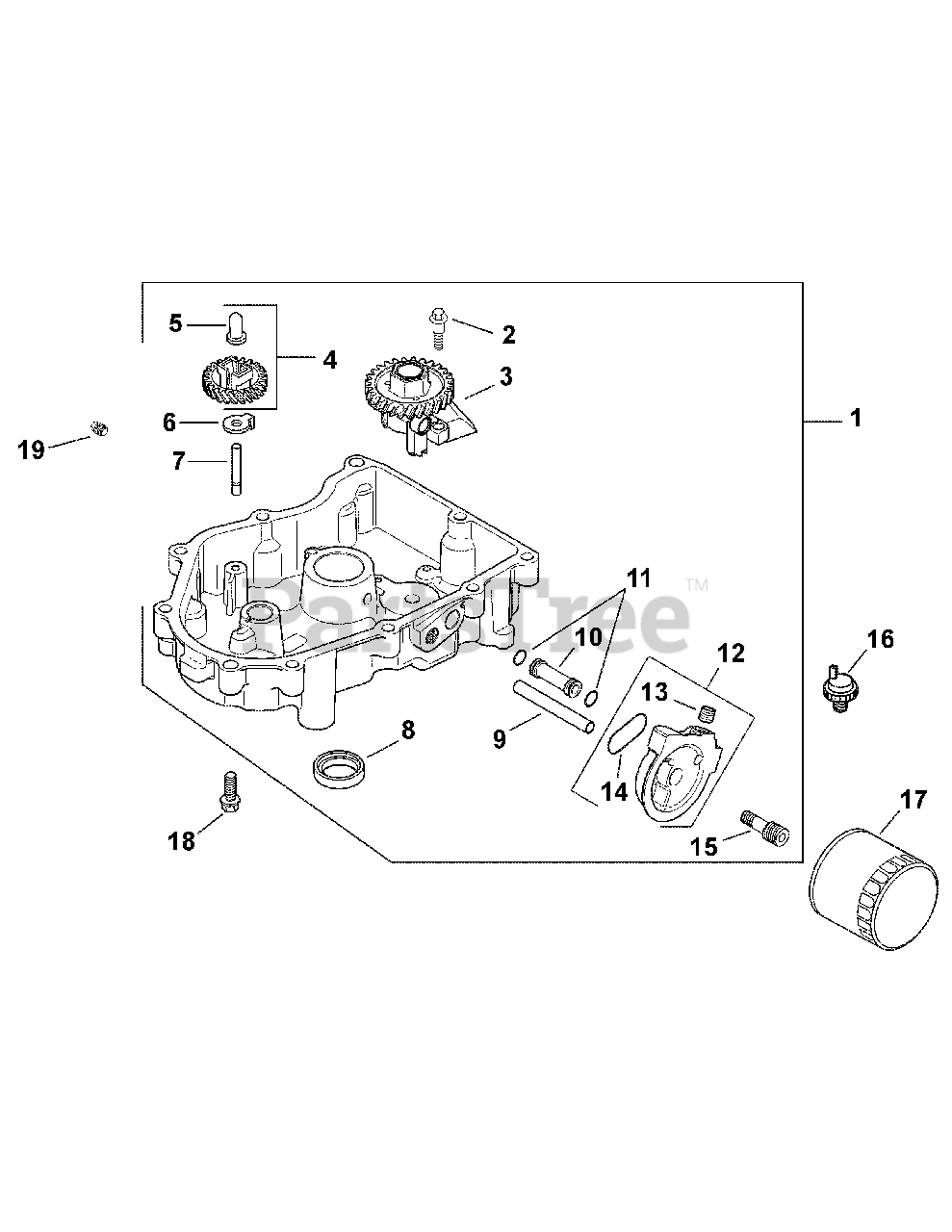

i1046 (17AF9BKH756) - Cub Cadet 46" Zero-Turn Mower (2007 & Before) Oil Pan Filter Parts Diagram

46" Zero-Turn Mower

Oil Pan Filter Parts Diagram

  • Title

1

Cub Cadet KH-32-199-02-S

Pan Assembly, Oil (Incl. Ref. 2-15)
(Superseded to KH-32-199-20-S)

$

$

Not available

2

Cub Cadet KH-32-086-01-S

Screw, Flnge Thrd. Frmng M6 x 1.0 x 26.5

$2.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-32-393-10-S

Pump Assembly, Oil

$

$

Not available

4

Cub Cadet KH-24-043-12

Kit, Governor Gear w/Pin (Incl. Ref. 5)

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

6

Cub Cadet KH-24-448-02-S

Tab, Locking

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

8

Cub Cadet KH-52-032-08-S

Seal, Oil (PTO End)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-32-123-01-S

Tube, Oil Feed - Filter to Pan

$

$

Not available

10

Cub Cadet KH-32-123-03-S

Tube, Oil Feed - Pan to Filter

$2.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-up

$

$

Not available

12

Cub Cadet KH-32-029-07-S

Kit, Oil Filter Adapter
(Superseded to KH-32-029-10-S)

$

$

Not available

13

Cub Cadet KH-25-139-60-S

Plug, Pipe, 1/8

$3.49

$

In Stock, only 3 left!

0

14

Cub Cadet KH-32-153-04-S

O-Ring, Oil Filter Adapter

$2.99

$

In Stock, Qty 5

0

15

Cub Cadet KH-32-136-03-S

Nipple, Oil Filter

$9.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

In Stock, Qty 6

0

17

Cub Cadet KH-52-050-02-S

Filter, Oil

$14.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-17-S

Screw, Flange, M8 x 1.25 x 45

$2.49

$

In Stock, Qty 20+

0

19

Cub Cadet KH-25-139-57-S

Plug, Sq. Hd. Pipe, 3/8 NOT USED

Note: Replaced by Oil Drain Valve

$2.49

$

In Stock, Qty 14

0
