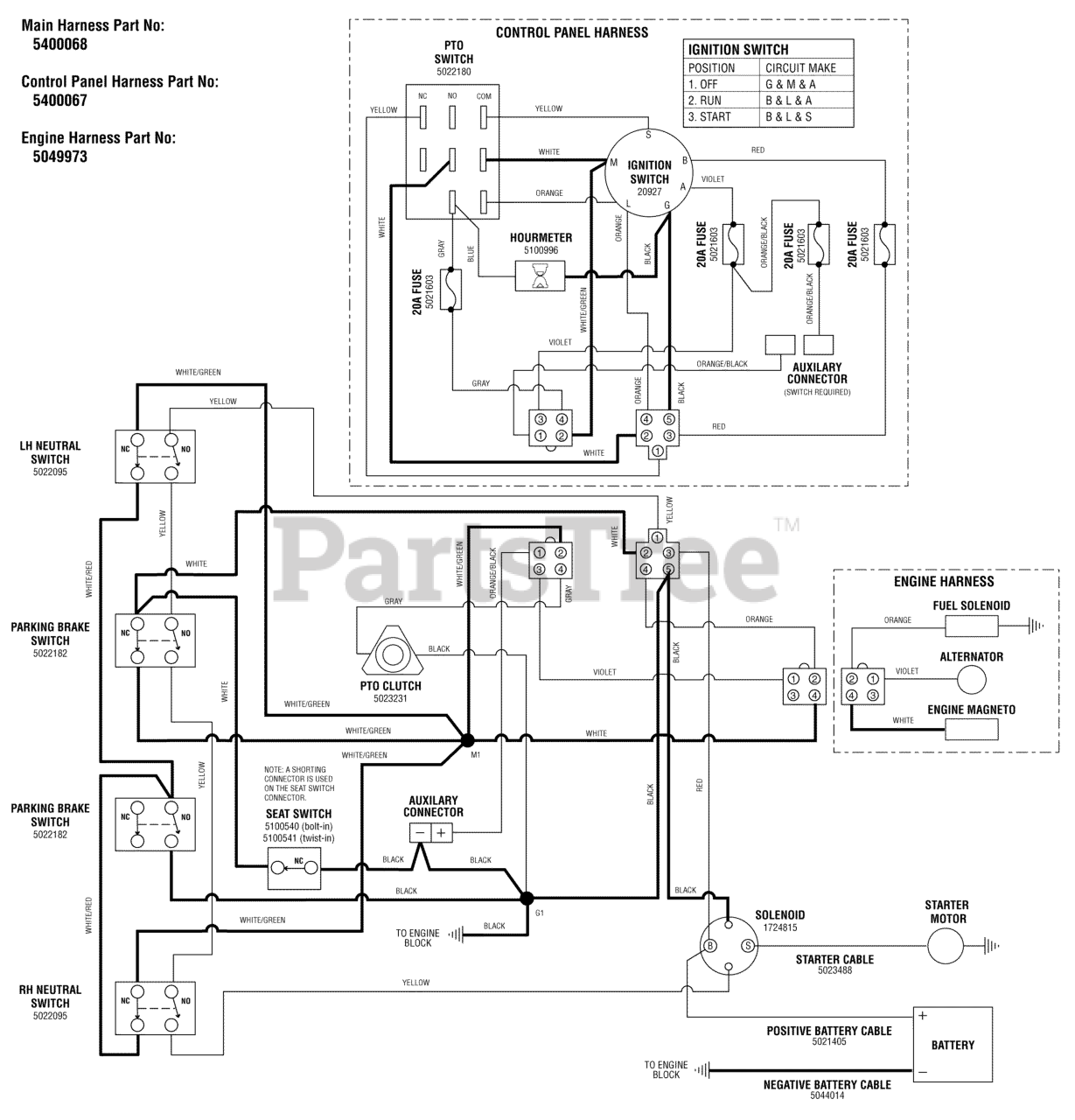

IS 1500Z (5900712) - Ferris IS1500Z Series 52" Zero-Turn Mower, 25hp Kawasaki Electrical Schematic - Ignition Grounding Circuit/Operator Presence (S/N: 1047 & above) Parts Diagram

IS1500Z Series 52" Zero-Turn Mower, 25hp Kawasaki
