IS 2000Z (5900627) - Ferris IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge Instrument & Control Panel Group Parts Diagram

IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge

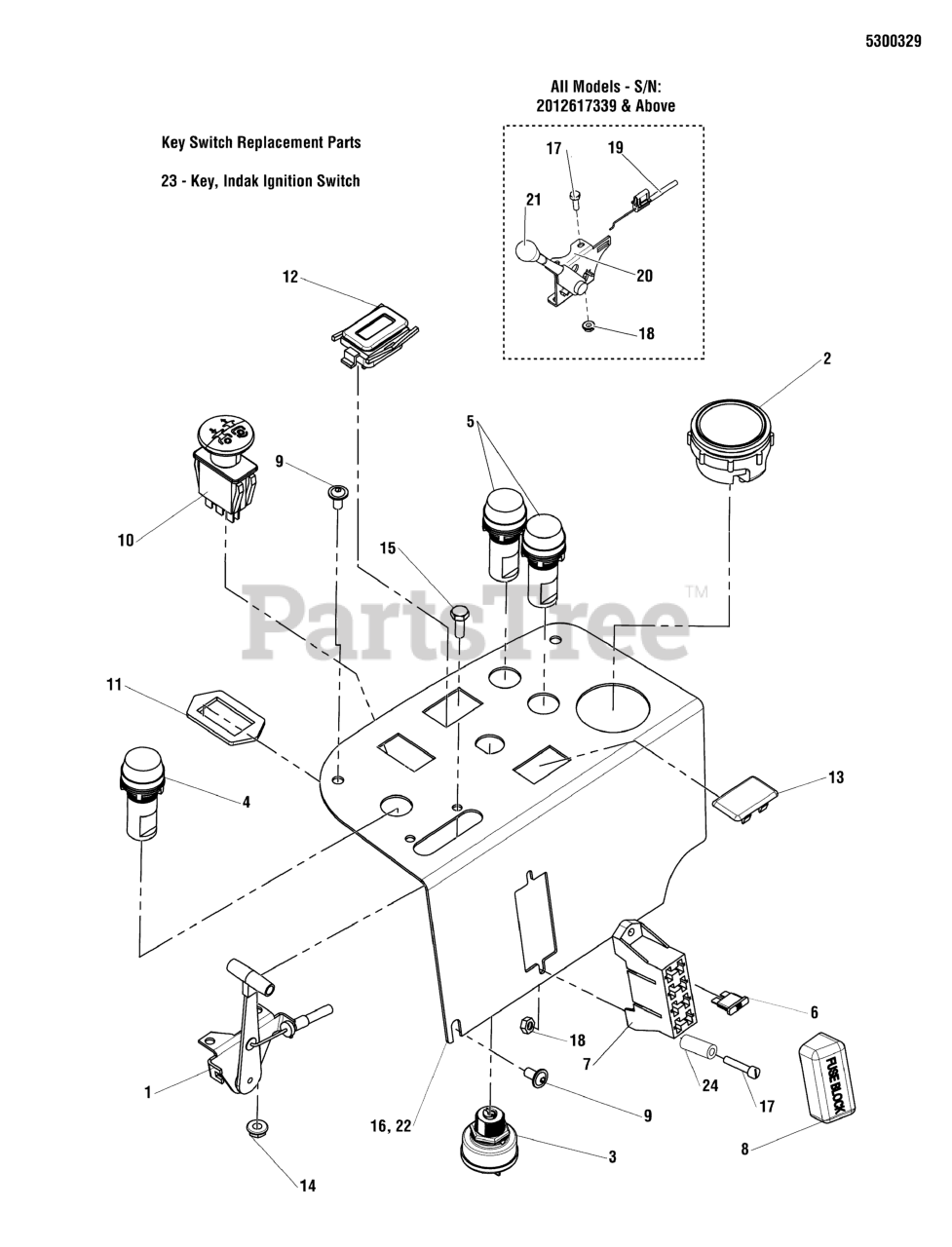

Instrument & Control Panel Group Parts Diagram

  • Title

1

Ferris 5100979

CABLE, THROTTLE CONTROL, 47"

Note: (S/N: 2012617338 & Below)

$37.99

$

Usually ships in 2-12 days

0

2

Ferris 5023393

GAUGE, WATER TEMPERATURE
(Superseded to 5023393YP)

$72.99

$

Usually ships in 2-12 days

0

3

Ferris 5100582

SWITCH, IGNITION, YANMAR

$80.99

$

Usually ships in 2-12 days

0

4

Ferris 5023451

LIGHT, GLOW PLUG, 22MM AMBER
(Superseded to 5023451FS)

$48.99

$

Usually ships in 2-12 days

0

5

Ferris 5023452

LIGHT, WARNING, 22MM RED
(Superseded to 5023452FS)

$48.99

$

Usually ships in 2-12 days

0

6

Ferris 5021603

FUSE, ATO, 20 AMP
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

7

Ferris 5021518

FUSE, BLOCK
(Superseded to 5021518SM)

$11.99

$

In Stock, only 1 left!

0

8

Ferris 5022805

COVER, VINYL FUSE BLOCK
(Superseded to 5022805SM)

$6.49

$

In Stock, only 1 left!

0

9

Ferris 5025299X4

SCREW, 1/4-20 X 1/2" ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, only 3 left!

0

10

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

11

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

12

Ferris 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

13

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, Qty 6

0

14

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (S/N: 2012617338 & Below)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

Note: (S/N: 2012617338 & Below)

$3.99

$

In Stock, Qty 13

0

16

Ferris 5401544A

PLATE, CONTROL PANEL, DIESEL -IS2000 BLK

Note: (S/N: 2012617338 & Below)

$33.99

$

Usually ships in 2-12 days

0

17

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5101076

CABLE, THROTTLE 47"
(Superseded to 5101076SM)

Note: (S/N: 2012617339 & Above)

$35.99

$

Usually ships in 2-12 days

0

20

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

Note: (S/N: 2012617339 & Above)

$48.99

$

Usually ships in 2-12 days

0

21

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

Note: (S/N: 2012617339 & Above)

$10.99

$

Usually ships in 2-12 days

0

22

Ferris 5403507A

PLATE, CONTROL PANEL, DIESEL -IS2000 BLK

Note: (S/N: 2012617339 & Above)

$32.99

$

Usually ships in 2-12 days

0

23

Ferris 5100582X2

KEY, INDAK IGNITION SWITCH

$8.99

$

Usually ships in 2-12 days

0

24

Ferris 5061763

SPACER, .20 X .38 X 1.25
(Superseded to 5061763FS)

$5.99

$

Usually ships in 2-12 days

0
