IS 2000Z (5900627) - Ferris IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge Parking Brake Group Parts Diagram

IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge

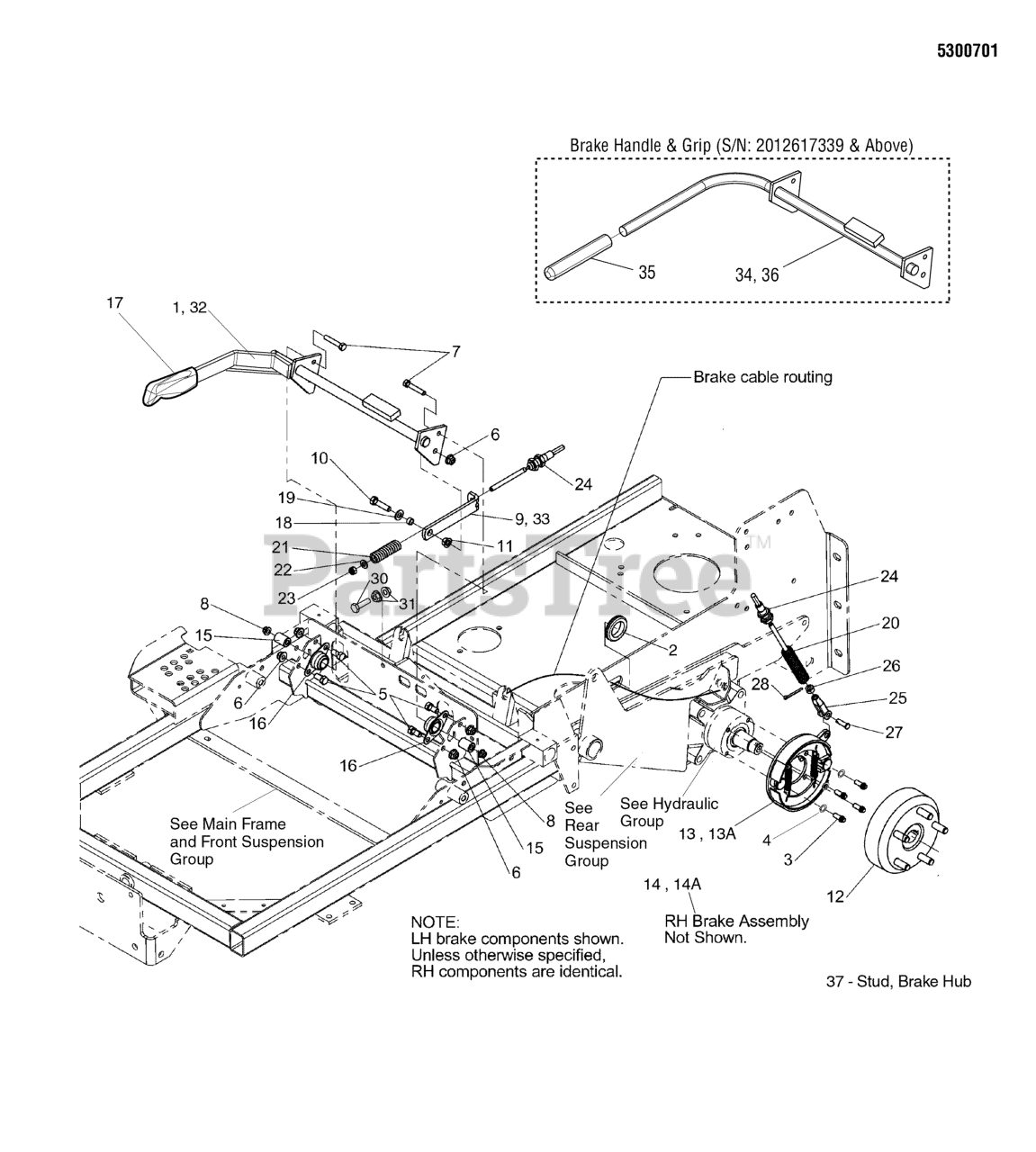

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5401330B

WELD, BRAKE SHAFT - RED MODEL

Note: (S/N: 2012617338 & Below)

$

$

Currently unavailable

2

Ferris 5021397

GROMMET, 1-1/4
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

3

Ferris 5023490

BOLT, 5/16-18 X 3/4 12PT FLANGE - PATCH
(Superseded to 5023490SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5047084A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

10

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5102896

BRAKE DRUM, 6", 5 BOLT, KNOTT
(Superseded to 5102896YP)

$225.99

$

In Stock, only 1 left!

0

13A

Ferris 5023500

BRAKE ASSEMBLY, LH
(Superseded to 5023500SM)

Note: (S/N: 2015208611 & Below)

$271.99

$

Usually ships in 2-12 days

0

13

Ferris 5102897

BRAKE SHOE ASM, LH, KNOTT
(Superseded to 5102897YP)

Note: (S/N: 2015208612 & Above)

$165.99

$

Usually ships in 2-12 days

0

14A

Ferris 5023501

BRAKE ASSEMBLY, RH

Note: (Not Shown - S/N: 2015208611 & Below)

$253.99

$

Usually ships in 2-12 days

0

14

Ferris 5102898

BRAKE SHOE ASM, RH, KNOTT
(Superseded to 5102898YP)

Note: (Not Shown - S/N: 2015208612 & Above)

$171.99

$

Usually ships in 2-12 days

0

15

Ferris 5042134

SPACER, .32 X .75 X 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

16

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

17

Ferris 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

Note: (S/N: 2012617338 & Below)

$13.99

$

In Stock, only 1 left!

0

18

Ferris 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

19

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5023320

SPRING, COMPRESSION
(Superseded to 5023320SM)

$8.49

$

In Stock, only 1 left!

0

21

Ferris 5048719

SPRING-COMP, .75 X .162 X 2.5
(Superseded to 5048719SM)

$9.49

$

Usually ships in 2-12 days

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

24

Ferris 5100115

CABLE, PARKING BRAKE
(Superseded to 5100115SM)

$96.99

$

Usually ships in 2-12 days

0

25

Ferris 5020979

CLEVIS, 5/16-24, PLASTIC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

26

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025213X8

PIN, CLEVIS, 5/16" X 1
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

28

Ferris 5025211

PIN, HAIR, .0585" X 1-1/8"
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

29

Ferris 5022853

WRENCH, SPANNER, CZ
(Superseded to 5022853SM)

Note: (Not Shown)

$15.99

$

Usually ships in 2-12 days

0

30

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

31

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

32

Ferris 5401330C

WELD, BRAKE SHAFT - ORANGE MODEL
(Superseded to 5401330CSM)

Note: (S/N: 2012617338 & Below)

$86.99

$

Usually ships in 2-12 days

0

33

Ferris 5047084A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

34

Ferris 5403551B

WELD, BRAKE SHAFT - RED MODEL

Note: (S/N: 2012617339 & Above)

$

$

Currently unavailable

35

Ferris 5101038

GRIP, FOAM, 3/4 ID X 6 X .187
(Superseded to 5101038SM)

Note: (S/N: 2012617339 & Above)

$7.49

$

In Stock, only 1 left!

0

36

Ferris 5403551C

WELD, BRAKE SHAFT - ORANGE MODEL
(Superseded to 5403551CSM)

Note: (S/N: 2012617339 & Above)

$80.99

$

Usually ships in 2-12 days

0

37

Ferris 5023368X1

STUD, BRAKE HUB (SV)

$3.49

$

Usually ships in 2-12 days

0
