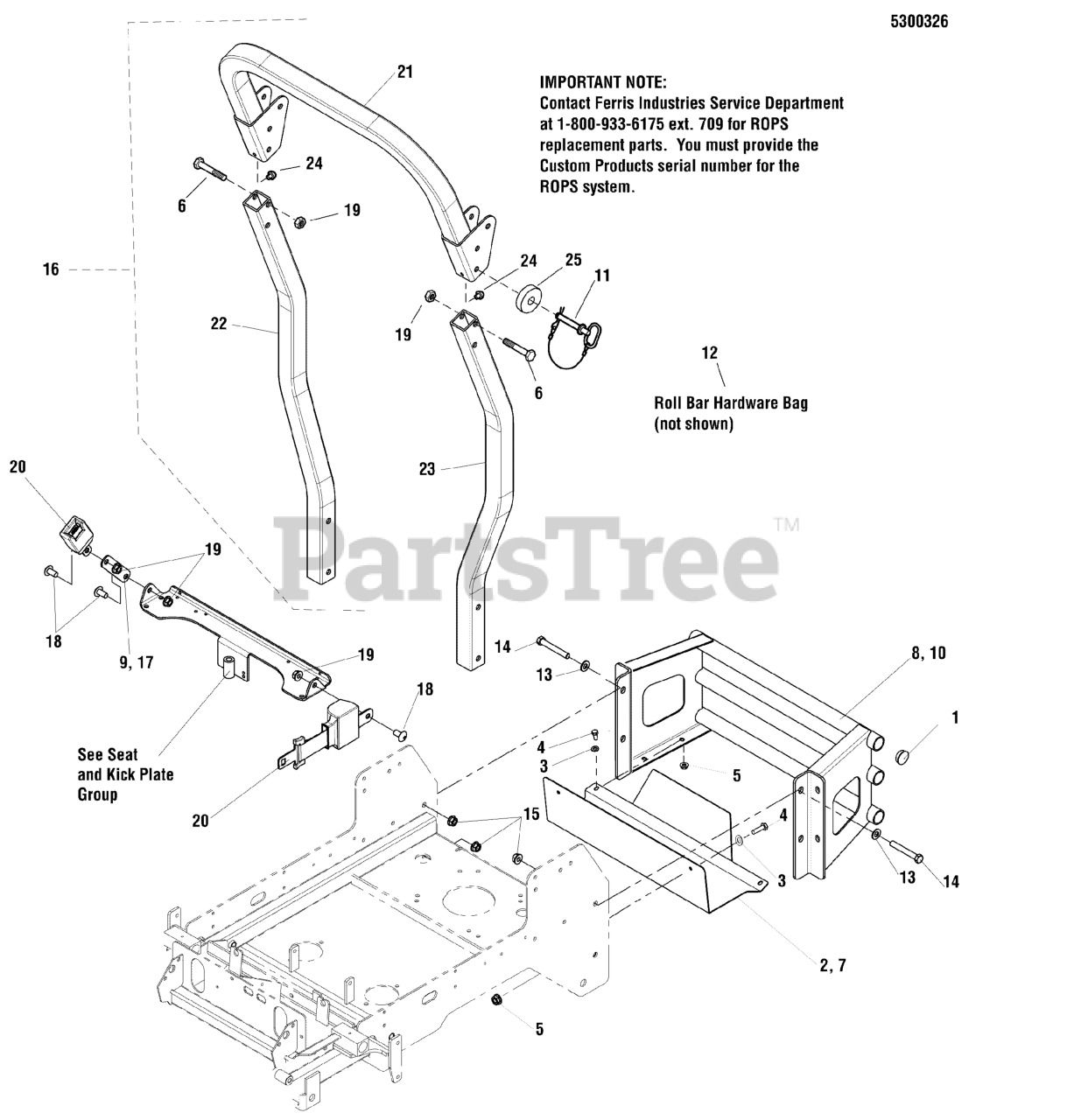

IS 2000Z (5900627) - Ferris IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge Rear Bumper, Roll Bar & Seat Belt Group Parts Diagram

IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge

Rear Bumper, Roll Bar & Seat Belt Group Parts Diagram

  • Title

1

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 1 left!

0

2

Ferris 5401928B

HEAT SHIELD - RED MODEL

$

$

Currently unavailable

3

Ferris 5025292

WASHER, 5/16" GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

4

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

5

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6

*BOLT

Note: (See footnote.)

$

$

Not available

7

Ferris 5401928C

HEAT SHIELD - ORANGE MODEL

$85.99

$

Usually ships in 2-12 days

0

8

Ferris 5403806C

WELD, BUMPER, ORANGE MODEL

$

$

Currently unavailable

9

Ferris 5401044A

EXTENSION, SEAT BELT - BLK
(Superseded to 5401044AYP)

$6.99

$

Usually ships in 2-12 days

0

10

Ferris 5403806B

WELD, BUMPER - RED MODEL

$

$

Currently unavailable

11

Ferris 5100079

PIN, HITCH, BLACK W/ PLASTIC LANYARD
(Superseded to 5100079SM)

$35.99

$

Usually ships in 2-12 days

0

12

Ferris 5100377

ROLL BAR HARDWARE BAG

Note: (Includes hitch pin)

$

$

Currently unavailable

13

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

14

Ferris 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 3 left!

0

15

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

16

ROPS (Call 1-800-933-6175 ext. 2193 if replacing a ROPS)

$

$

Not available

17

Ferris 5401044A

EXTENSION, SEAT BELT - BLK
(Superseded to 5401044AYP)

$6.99

$

Usually ships in 2-12 days

0

18

Ferris 5100267

SCREW, 1/2-13 X 1.00, SHCS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

19

*NUT

Note: (See footnote.)

$

$

Not available

20

Ferris 5100139

SEAT BELT, RETRACTING - ASSM
(Superseded to 5100139SM)

$103.99

$

Usually ships in 2-12 days

0

21

ROLL BAR TOP LOOP

Note: (See drawing note.)

$

$

Not available

22

ROLL BAR POST, RH

Note: (See drawing note.)

$

$

Not available

23

ROLL BAR POST, LH

Note: (See drawing note.)

$

$

Not available

24

Ferris 5100383

RUBBER BUMPER
(Superseded to 5100383SM)

$3.99

$

In Stock, only 2 left!

0

25

Ferris 5100545

RUBBER WASHER

$

$

Currently unavailable
