IS 2000Z (5900627) - Ferris IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge Rear Suspension Group Parts Diagram

IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge

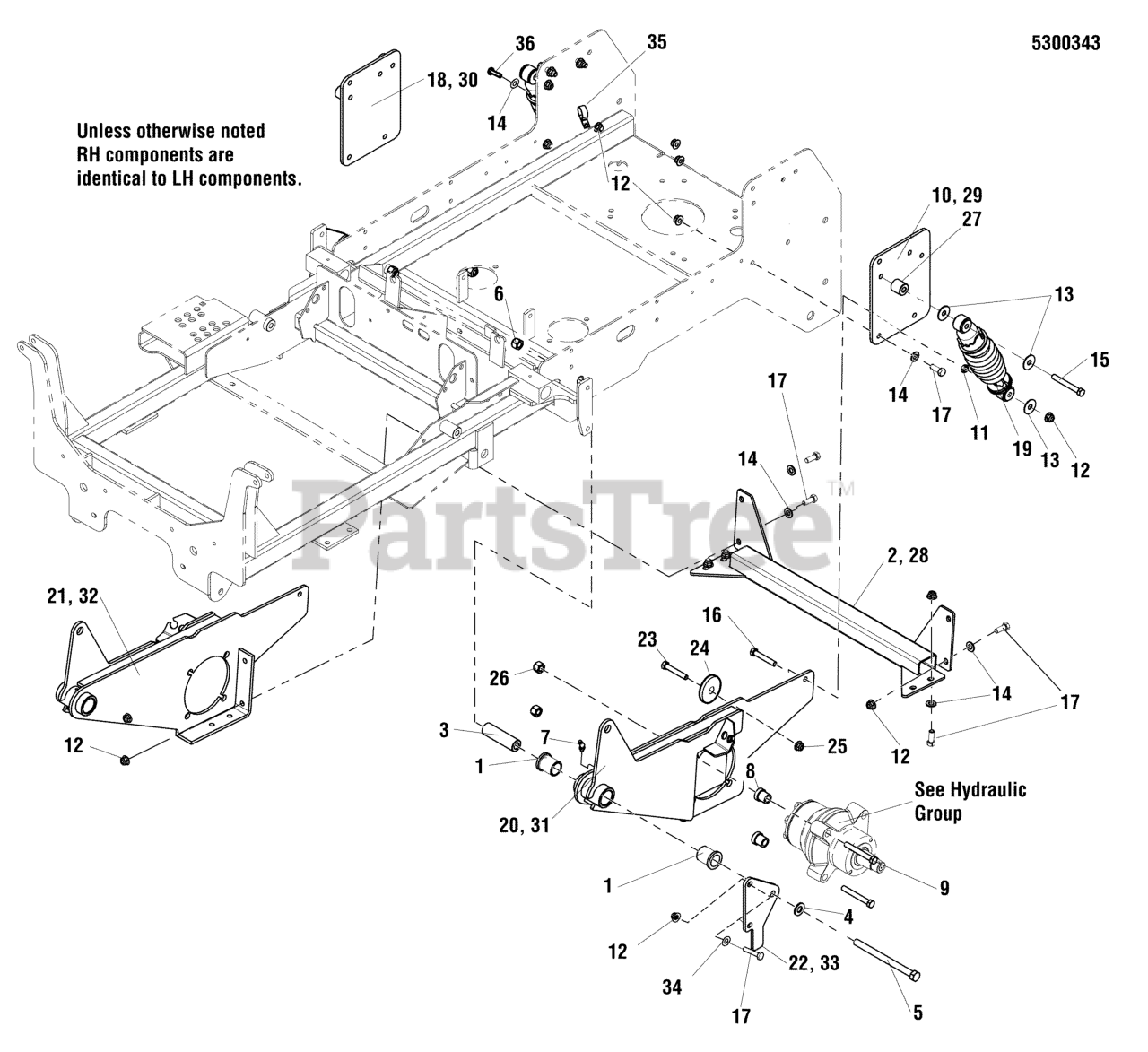

Rear Suspension Group Parts Diagram

  • Title

1

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

2

Ferris 5600187

KIT, TIE BAR, 52

Note: (S/N: 2012755256 & Below)(Includes Mounting Hardware)

$183.99

$

Usually ships in 2-12 days

0

3

Ferris 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

4

Ferris 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 3 left!

0

5

Ferris 5025017X52

BOLT, 1/2-13 X 6-1/2" GD8 YZ
(Superseded to 5025017X52SM)

$10.99

$

In Stock, only 2 left!

0

6

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

7

Ferris 5020020

GREASE FITTING, 45 DEGREE
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5047027

SPACER, .51 X .75 X .56
(Superseded to 5047027SM)

Note: (Not Used on 48" Diesel Models)

$5.49

$

Usually ships in 2-12 days

0

9

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

10

Ferris 5061751B

PLATE, FRAME SUPPORT, LH - RED
(Superseded to 5061751BFS)

$39.99

$

Usually ships in 2-12 days

0

11

Ferris 5046860

SPACER, .39 X 1.00 X .50
(Superseded to 5046860SM)

$6.49

$

Usually ships in 2-12 days

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5025165

WASHER, 3/8" FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

16

Ferris 5025058X18

BOLT, 3/8-16 X 2-1/4" GD5 TFL
(Superseded to 5025058X18YP)

$7.49

$

In Stock, only 1 left!

0

17

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

18

Ferris 5401181B

WELD, FRAME SUPPORT - RH - RED MODEL

$40.99

$

Usually ships in 2-12 days

0

19

Ferris 5022842

COIL-OVER SHOCK ASSEMBLY
(Superseded to 5022842SM)

$216.99

$

In Stock, only 2 left!

0

20

Ferris 5401744B

WELD, MOTOR MOUNT - LH - RED MODEL

$421.99

$

Usually ships in 2-12 days

0

21

Ferris 5401745B

WELD, MOTOR MOUNT - RH - RED MODEL

$421.99

$

Usually ships in 2-12 days

0

22

Ferris 5400648A

SUPPORT, SWING ARM - BLK
(Superseded to 5400648AYP)

$11.99

$

Usually ships in 2-12 days

0

23

Ferris 5025594

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ
(Superseded to 5025594YP)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5102701

SPACER, .34 X 1.54 X .25 UHMW
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

25

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5025330

NUT, 1/2-13 SQUARE
(Superseded to 5025330SM)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5045943

SPACER, SHOULDER
(Superseded to 5045943SM)

$11.99

$

In Stock, only 2 left!

0

28

Ferris 5404056A

WELD, TIE BAR - BLK
(Superseded to 5600187)

Note: (S/N: 2012755257 & Above)

$183.99

$

Usually ships in 2-12 days

0

29

Ferris 5402626C

PLATE, FRAME SUPPORT, LH - ORANGE MODEL
(Superseded to 5061751C)

$40.99

$

Usually ships in 2-12 days

0

30

Ferris 5401181C

WELD, FRAME SUPPORT - RH - ORANGE MODEL

$

$

Not available

31

Ferris 5401744C

WELD, MOTOR MOUNT - LH - ORANGE MODEL

$

$

Currently unavailable

32

Ferris 5401745C

WELD, MOTOR MOUNT - RH - ORANGE MODEL

$

$

Currently unavailable

33

Ferris 5400648A

SUPPORT, SWING ARM - BLK
(Superseded to 5400648AYP)

$11.99

$

Usually ships in 2-12 days

0

34

Ferris 5025293

WASHER, 3/8" GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

35

Ferris 5023173

CLAMP, VINYL INSULATED
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0
