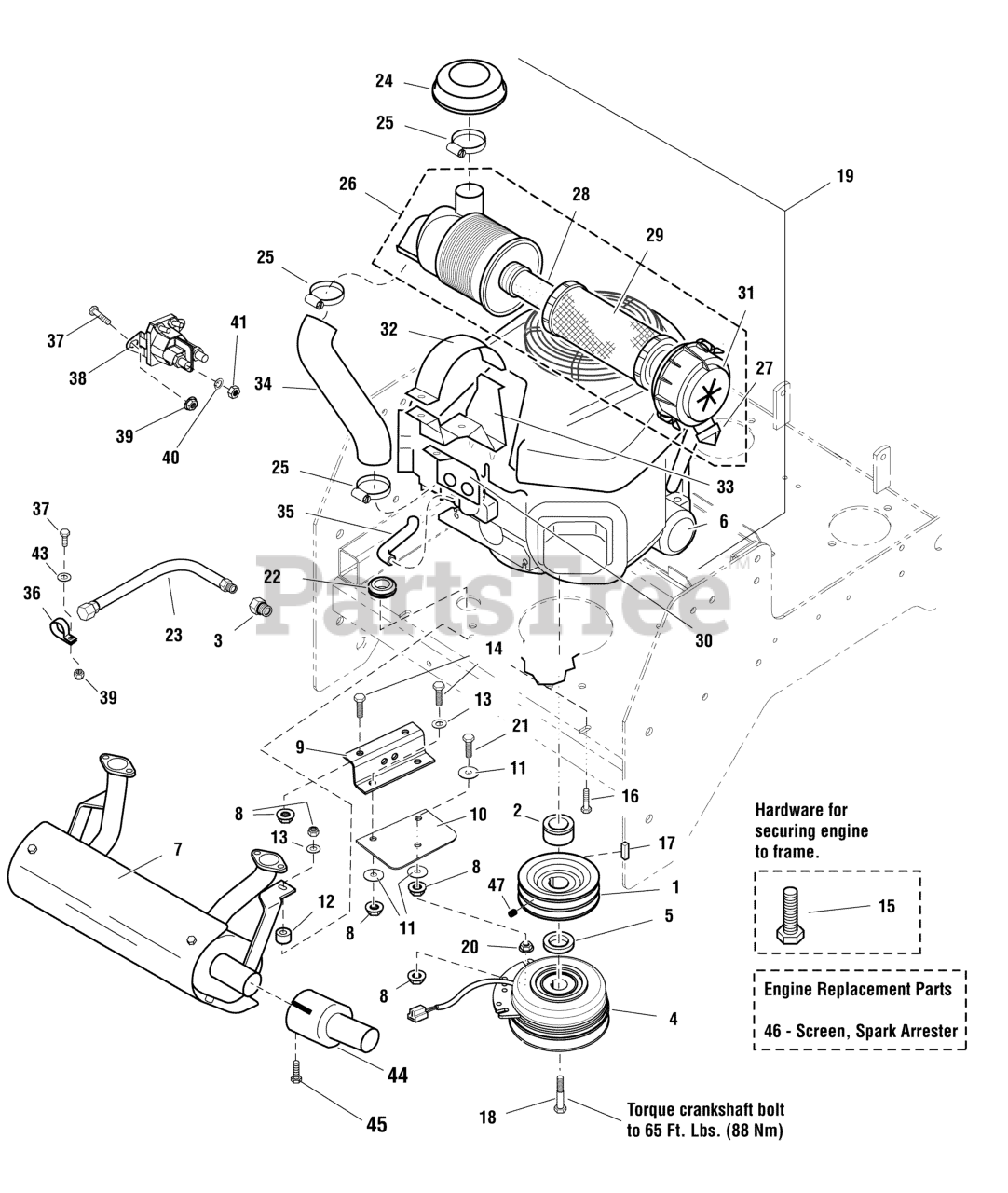

IS 2000Z (5900754) - Ferris IS2000Z Series 61" Zero-Turn Mower, 27hp Kawasaki Engine & PTO Group - Kawasaki FX Series Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 27hp Kawasaki

Engine & PTO Group - Kawasaki FX Series Parts Diagram

  • Title

1

Ferris 5047075

PULLEY, CRANKSHAFT (DOUBLE A)

$128.99

$

Usually ships in 2-12 days

0

2

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

3

Ferris 5022234

ADAPTER, OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

5

Ferris 5100456

SPACER, 1.13 X 1.75 X .38

$

$

Currently unavailable

6

Ferris 5021334X1

OIL FILTER (49065-2078)
(Superseded to 5213341SM)

$

$

Not available

7

Ferris 5105069

MUFFLER, 27HP KAWASAKI, 5" CAN
(Superseded to 5105069YP)

Note: (Replacement Muffler does not require components to secure muffler to engine deck)

$287.99

$

Usually ships in 2-12 days

0

8

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

10

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

11

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Ferris 5046446

SPACER, .39 X 1.00 X .80
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025532

BOLT, HEX FLG, SER GD5 3/8-16 X 1-1/4, PATCH
(Superseded to 84003591)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5102864

BOLT, CRANKSHAFT, 7/16"X2-1/2
(Superseded to 5102864YP)

$5.49

$

Usually ships in 2-12 days

0

19

ENGINE, 27HP, KAWASAKI

Note: (Includes Ref Nos. 24 - 35)

$

$

Not available

20

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

24a

Ferris 5023143

RAIN COVER (SV)

Note: (S/N: 2013946880 & Above)

$

$

Not available

24b

Ferris 5101538

RAIN COVER (SV)

Note: (S/N: 2013946879 & Below)

$

$

Currently unavailable

25a

Ferris 5023146

CLAMP (SV)

Note: (S/N: 2013946880 & Above)

$11.99

$

Usually ships in 2-12 days

0

25b

Ferris 5101539

CLAMP (SV)

Note: (S/N: 2013946879 & Below)

$8.99

$

Usually ships in 2-12 days

0

26a

Ferris 5102126X1

AIR FILTER ASSEMBLY (SV)

Note: (S/N: 2013946880 & Above)

$

$

Not available

26b

Ferris 5101540

AIR FILTER ASSEMBLY (SV)

Note: (S/N: 2013946879 & Below)

$

$

Currently unavailable

27a

Ferris 5102126X8

RUBBER, Dust Valve (SV)

Note: (S/N: 2013946880 & Above)

$

$

Not available

27b

Ferris 5023144

RUBBER, Dust Valve (SV)

Note: (S/N: 2013946879 & Below)

$

$

Not available

28a

Ferris 5102126X4

AIR FILTER, SECONDARY (SV)

Note: (S/N: 2013946880 & Above)

$

$

Not available

28b

Ferris 5101542

AIR FILTER, SECONDARY (SV)

Note: (S/N: 2013946879 & Below)

$

$

Currently unavailable

29a

Ferris 5102126X3

AIR FILTER, PRIMARY (SV)

Note: (S/N: 2013946880 & Above)

$

$

Not available

29b

Ferris 5101543

AIR FILTER, PRIMARY (SV)

Note: (S/N: 2013946879 & Below)

$

$

Currently unavailable

30

Ferris 5101547

BRACKET PLATE, SUPPORT (SV)

$13.99

$

Usually ships in 2-12 days

0

31a

Ferris 5102126X2

CAP END, FILTER CASE (SV)

Note: (S/N: 2013946880 & Above)

$

$

Not available

31b

Ferris 5101544

CAP END, FILTER CASE (SV)

Note: (S/N: 2013946879 & Below)

$

$

Currently unavailable

32a

Ferris 5102126X5

CASE BRACKET (SV)

Note: (S/N: 2013946880 & Above)

$

$

Not available

32b

Ferris 5101545

BRACKET PLATE, UPPER (SV)

Note: (S/N: 2013946879 & Below)

$17.99

$

Usually ships in 2-12 days

0

33a

Ferris 5102126X6

CASE BRACKET (SV)

Note: (S/N: 2013946880 & Above)

$46.99

$

Usually ships in 2-12 days

0

33b

Ferris 5101546

BRACKET PLATE, LOWER (SV)

Note: (S/N: 2013946879 & Below)

$29.99

$

Usually ships in 2-12 days

0

34a

Ferris 5102126X9

AIR INLET TUBE (SV)

Note: (S/N: 2013946880 & Above)

$

$

Not available

34b

Ferris 5101548

AIR INLET TUBE (SV)

Note: (S/N: 2013946879 & Below)

$88.99

$

Usually ships in 2-12 days

0

35a

Ferris 5102126X10

BREATHER TUBE (SV)

Note: (S/N: 2013946880 & Above)

$

$

Not available

35b

Ferris 5101549

BREATHER TUBE (SV)

Note: (S/N: 2013946879 & Below)

$9.99

$

Usually ships in 2-12 days

0

36

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

37

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

38

Ferris 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

39

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

40

Ferris 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

41

Ferris 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

42

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

43

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

44

Ferris 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

$14.99

$

In Stock, only 1 left!

0

45

Ferris 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

Usually ships in 2-12 days

0

46

Ferris 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

47

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

Usually ships in 2-12 days

0
