IS 2000Z (5900807) - Ferris IS2000Z Series 61" Zero-Turn Mower, 34hp Kawasaki Engine & PTO Group - Kawasaki FH921V Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 34hp Kawasaki

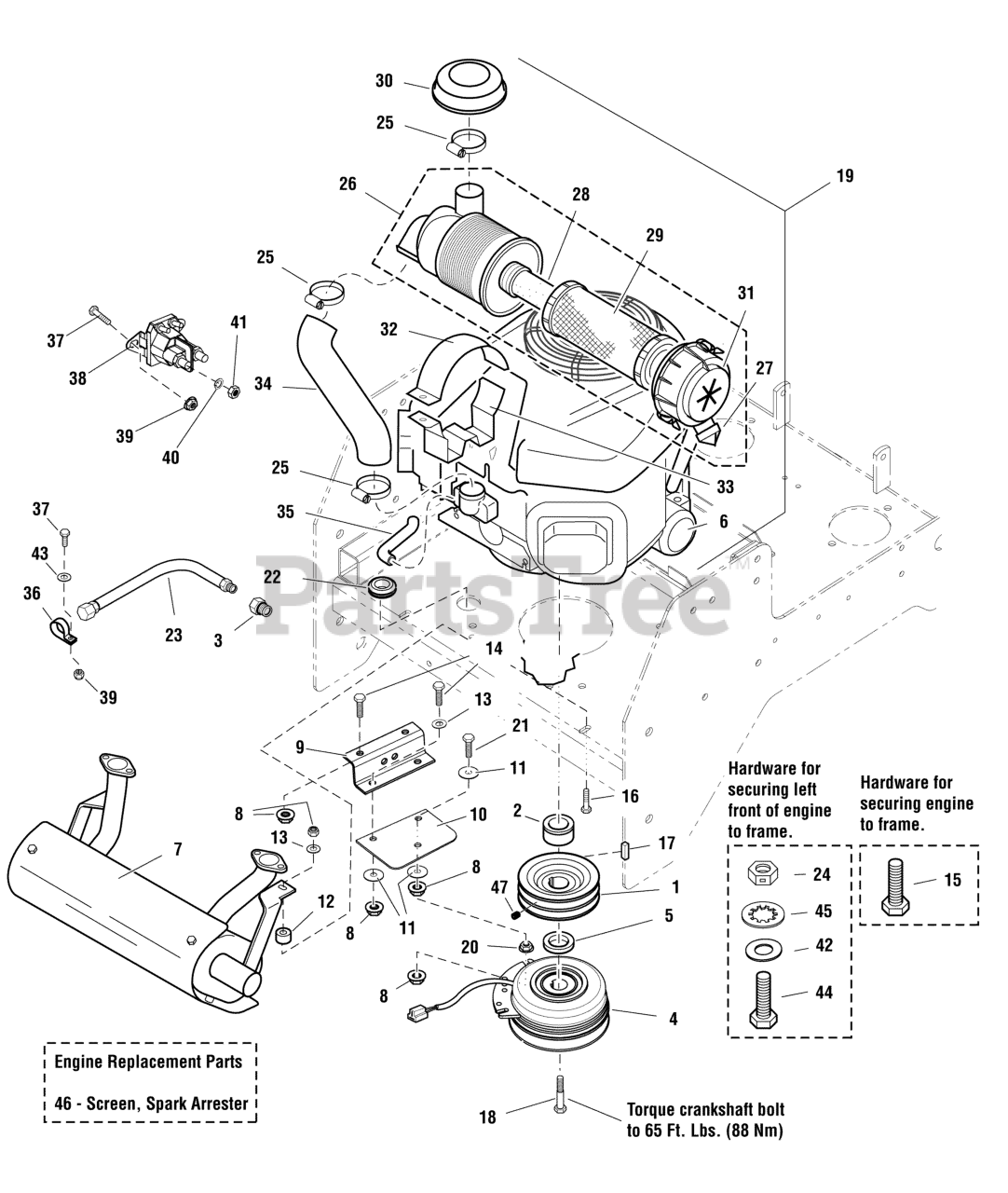

Engine & PTO Group - Kawasaki FH921V Parts Diagram

  • Title

1

Ferris 5047075

PULLEY, CRANKSHAFT, 1.126 ID X 4.75 OD

$128.99

$

Usually ships in 2-12 days

0

2

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

3

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

Note: (*See Footnote)

$456.99

$

Usually ships in 2-12 days

0

5

Ferris 5100456

SPACER, 1.13 X 1.75 X .375

$

$

Currently unavailable

6

Ferris 5021334X1

FILTER,OIL,KAWA FX751,801,851,921,100
(Superseded to 5213341SM)

$

$

Not available

7

Ferris 5105064

MUFFLER 35-37HP KAWASAKI 5 CAN
(Superseded to 5105064FS)

Note: (Use 5025355 - Qty: 4 to mount muffler to engine.)

$237.99

$

In Stock, only 1 left!

0

8

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

10

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

11

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Ferris 5046446

SPACER, .39 X 1.00 X .80, CZ
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5045289

BOLT, CRANKSHAFT, 7/16" X 2-1/2"
(Superseded to 5102864)

$5.49

$

Usually ships in 2-12 days

0

19

ENGINE, 34HP, KAWASAKI

Note: (Includes Ref Nos. 25 - 35)

$

$

Not available

20

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

24

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5023146

CLAMP, HOSE

Note: (S/N: & 2014450902 Above)

$11.99

$

Usually ships in 2-12 days

0

25

Ferris 5101539

CLAMP, CAP

Note: (S/N: & 2014450901 Below)

$8.99

$

Usually ships in 2-12 days

0

26

Ferris 5102126X1

AIR FILTER ASSEMBLY, 22,24&26HP KAWASAKI (SV)

Note: (S/N: & 2014450902 Above)

$

$

Not available

26

Ferris 5101540

AIR FILTER ASSEMBLY (SV)

Note: (S/N: & 2014450901 Below)

$

$

Currently unavailable

27

Ferris 5102126X8

RUBBER, Dust Valve, 22,24&26HP KAWASAKI (SV)

Note: (S/N: & 2014450902 Above)

$

$

Not available

27

Ferris 5023144

RUBBER, Dust Valve (SV)

Note: (S/N: & 2014450901 Below)

$

$

Not available

28

Ferris 5102126X4

AIR FILTER, SECONDARY, 22, 24&26HP KAWASAKI (SV)

Note: (S/N: & 2014450902 Above)

$

$

Not available

28

Ferris 5101542

AIR FILTER, ELEMENT, SECONDARY

Note: (S/N: & 2014450901 Below)

$

$

Currently unavailable

29

Ferris 5102126X3

AIR FILTER, PRIMARY,22,24&26HP, KAWASAKI (SV)

Note: (S/N: & 2014450902 Above)

$

$

Not available

29

Ferris 5101543

AIR FILTER, ELEMENT, PRIMARY

Note: (S/N: & 2014450901 Below)

$

$

Currently unavailable

30

Ferris 5023143

RAIN CAP, AIR FILTER, 22,24&26HP, KAWASAKI (SV)

Note: (S/N: & 2014450902 Above)

$

$

Not available

30

Ferris 5101538

RAIN CAP, KAWA, DFI

Note: (S/N: & 2014450901 Below)

$

$

Currently unavailable

31

Ferris 5102126X2

CAP END, FILTER CASE, 22,24&26HP, KAWASAKI (SV)

Note: (S/N: & 2014450902 Above)

$

$

Not available

31

Ferris 5101544

CAP END, FILTER CASE (SV)

Note: (S/N: & 2014450901 Below)

$

$

Currently unavailable

32

Ferris 5102126X5

BRACKET PLATE, UPPER, 22,24&26HP KAWASAKI (SV)

Note: (S/N: & 2014450902 Above)

$

$

Not available

32

Ferris 5101545

BRACKET PLATE, UPPER 27, 34 & 37 (SV)

Note: (S/N: & 2014450901 Below)

$17.99

$

Usually ships in 2-12 days

0

33

Ferris 5102126X6

BRACKET PLATE, LOWER, 22,24&26HP KAWASAKI (SV)

Note: (S/N: & 2014450902 Above)

$46.99

$

Usually ships in 2-12 days

0

33

Ferris 5101550

BRACKET PLATE, LOWER 34 & 37 (SV)

Note: (S/N: & 2014450901 Below)

$29.99

$

Usually ships in 2-12 days

0

34

Ferris 5102126X9

AIR INLET TUBE, 22,24&26HP KAWASAKI (SV)

Note: (S/N: & 2014450902 Above)

$

$

Not available

34

Ferris 5101551

AIR INLET TUBE (SV)

Note: (S/N: & 2014450901 Below)

$94.99

$

Usually ships in 2-12 days

0

35

Ferris 5102126X10

AIR INLET TUBE,AIR FILTR,22,24&26HP KAWA

Note: (S/N: & 2014450902 Above)

$

$

Not available

35

Ferris 5101552

BREATHER TUBE (SV)

Note: (S/N: & 2014450901 Below)

$7.99

$

Usually ships in 2-12 days

0

36

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

37

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

38

Ferris 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

39

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

40

Ferris 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

41

Ferris 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

42

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

43

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

44

Ferris 5025058X18

BOLT, 3/8-16 X 2-1/4" GD5 TFL
(Superseded to 5025058X18YP)

$7.49

$

In Stock, only 1 left!

0

45

Ferris 5025480

WASHER, 3/8" ID, INTERNAL TOOTH
(Superseded to 5025480SM)

$3.49

$

In Stock, only 1 left!

0

46

Ferris 5101641

SCREEN, SPARK ARRESTER (SV)
(Superseded to 5101641YP)

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

47

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

Usually ships in 2-12 days

0

48

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0
