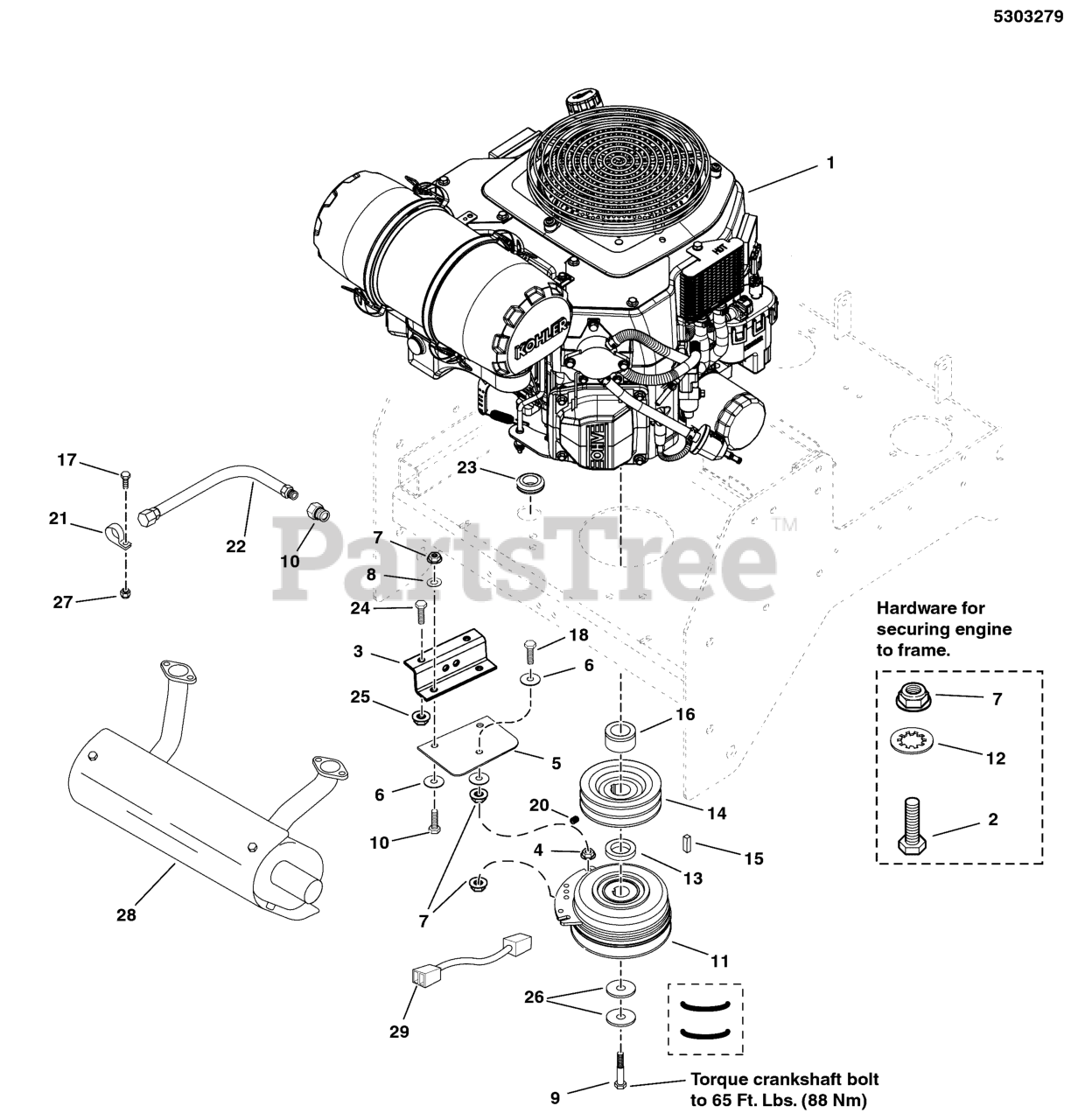

IS 2000Z (5901234) - Ferris IS2000Z Series 61" Zero-Turn Mower, 29hp Kohler Engine & PTO Group - Kohler EFI Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 29hp Kohler

Engine & PTO Group - Kohler EFI Parts Diagram

  • Title

1

ENGINE, KOHLER, ECV749

$

$

Not available

2

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

4

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

6

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8
(Superseded to 5102865YP)

$5.49

$

In Stock, only 1 left!

0

10

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5105090

CLUTCH,5218-221, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

12

Ferris 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5100062

SPACER, 1.13 X 1.75 X .32
(Superseded to 5100062YP)

$16.99

$

Usually ships in 2-12 days

0

14

Ferris 5047075

PULLEY, CRANKSHAFT, 1.126 ID X 4.75 OD

$128.99

$

Usually ships in 2-12 days

0

15

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

17

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not Illustrated)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL
(Superseded to 5025531YP)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

23

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

24

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

25

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

26

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 1 left!

0

27

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

28

MUFFLER, KOHLER EFI, OIL FILTER SIDE

Note: (See Engine Service Parts - Kohler EFI)

$

$

Not available

29

Ferris 5103811

CLUTCH JUMPER W/ DIODE, WARNER

$34.99

$

Usually ships in 2-12 days

0
