IS 2000Z (5901314) - Ferris IS2000Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton 52" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2016395717 & Above Parts Diagram

IS2000Z Series 52" Zero-Turn Mower, 27hp Briggs & Stratton

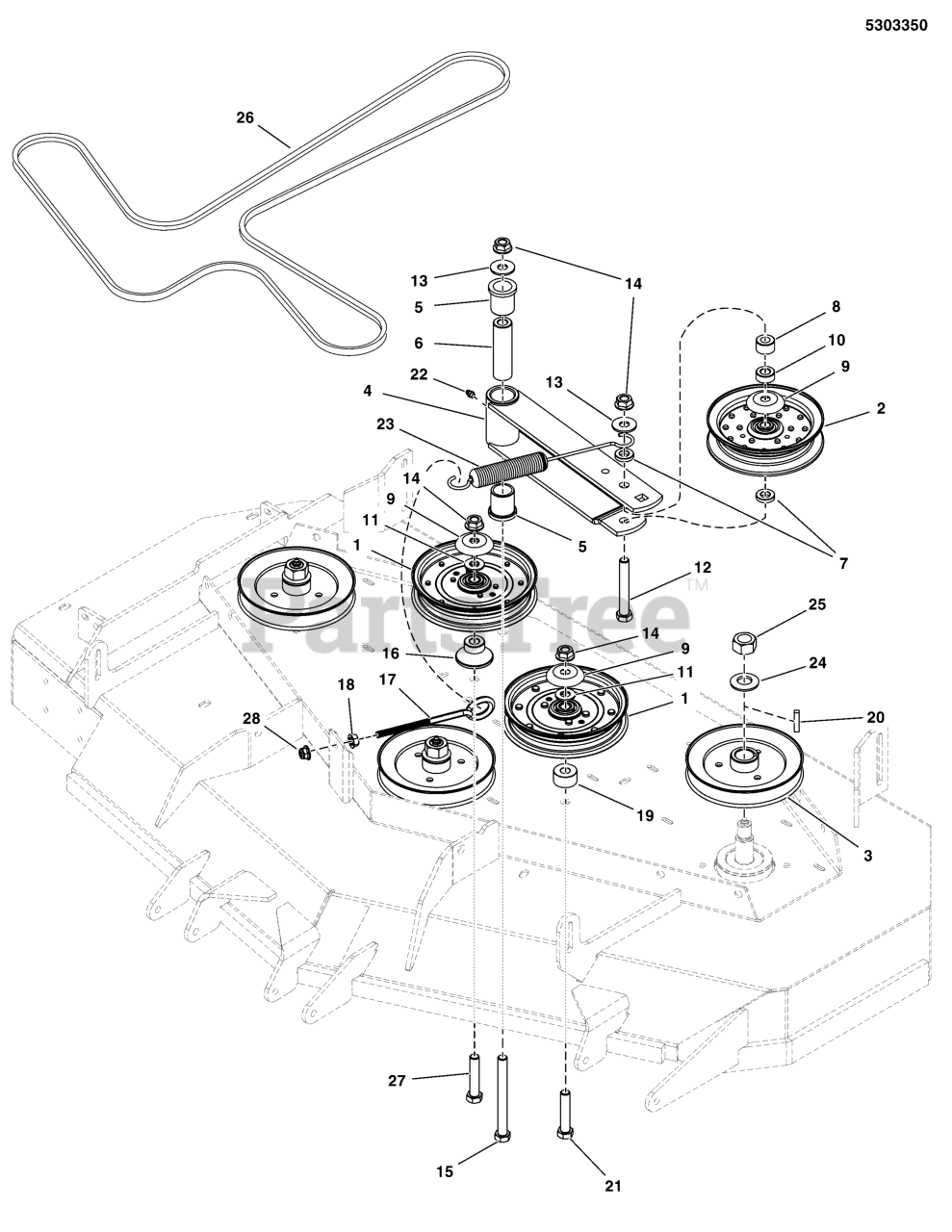

52" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2016395717 & Above Parts Diagram

  • Title

1

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

2

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

3

Ferris 5101351

PULLEY, 5.926 OVER BALL
(Superseded to 5101351YP)

$69.99

$

In Stock, only 1 left!

0

4

Ferris 5410985A

WELD, IDLER ARM - BLK

$73.99

$

Usually ships in 2-12 days

0

5

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

6

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

Usually ships in 2-12 days

0

7

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

Usually ships in 2-12 days

0

8

Ferris 5101161

SPACER, .52 X 1.00 X .63, CZ
(Superseded to 5101161YP)

$8.99

$

In Stock, only 1 left!

0

9

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

Usually ships in 2-12 days

0

10

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

11

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

12

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

Usually ships in 2-12 days

0

13

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

14

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 10

0

15

Ferris 5025017X40

BOLT-1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 6

0

16

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, only 1 left!

0

17

Ferris 5102118

EYE BOLT, 3/8-16 X 6.88, 3THRD, 1EYE
(Superseded to 5102118FS)

$15.99

$

Usually ships in 2-12 days

0

18

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5047142

SPACER, .52 X 1.25 X .70, CZ
(Superseded to 5047142SM)

$8.99

$

In Stock, only 1 left!

0

20

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 1 left!

0

21

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 2 left!

0

22

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

Note: (coil-to-coil measurement: 6-1/2")

$36.99

$

Usually ships in 2-12 days

0

24

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, only 2 left!

0

26

Ferris 5103872

BELT, 5V, 163.40EL, LG ARAMID, WRPD, RC
(Superseded to 5103675)

$148.99

$

Usually ships in 2-12 days

0

27

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

28

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0
