IS 2100Z (5901301) - Ferris IS2100Z Series 52" Zero-Turn Mower, 26hp Kawasaki 52" Mower Deck - Housing, Covers, Spindles and Blades Parts Diagram

IS2100Z Series 52" Zero-Turn Mower, 26hp Kawasaki

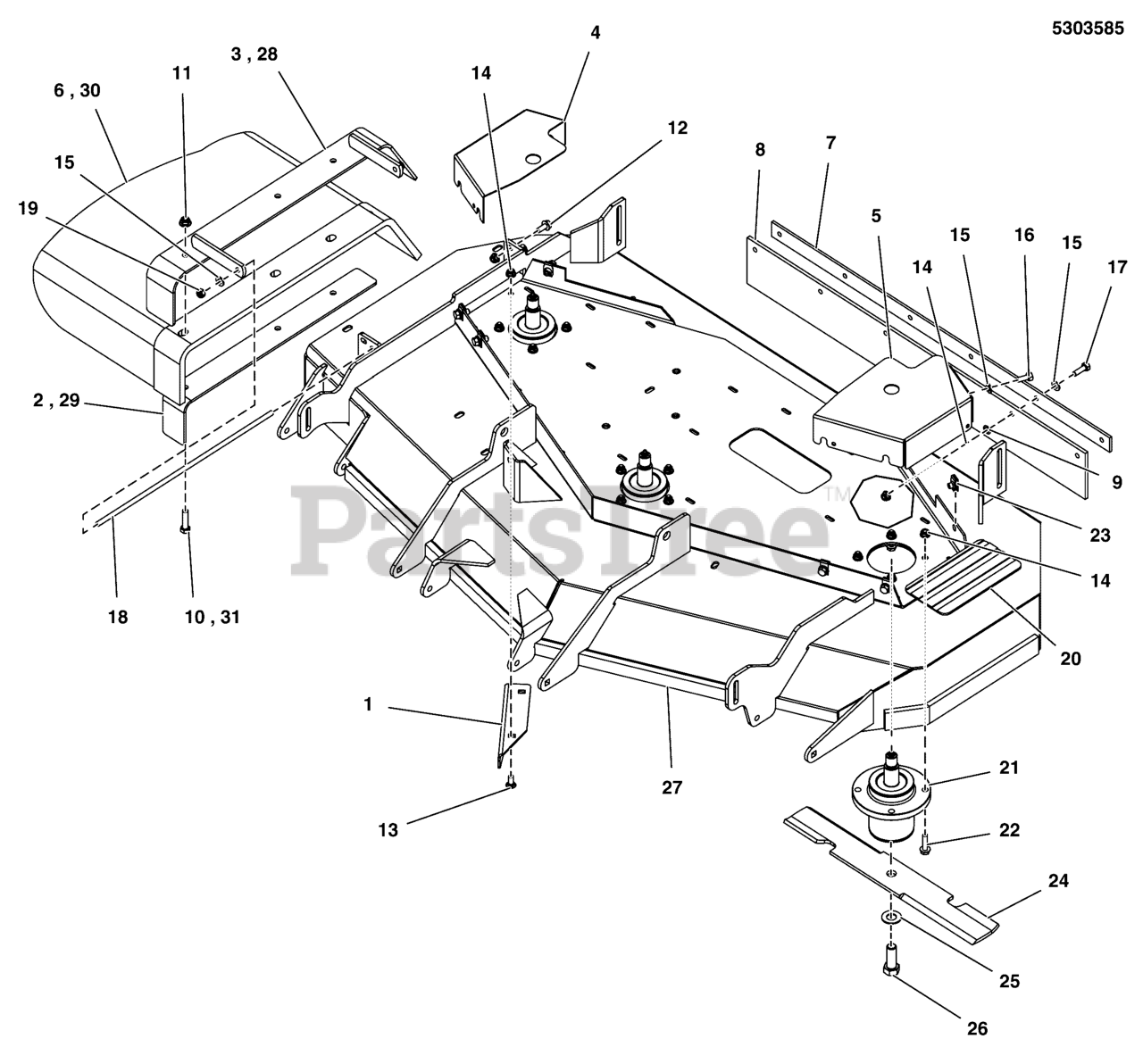

52" Mower Deck - Housing, Covers, Spindles and Blades Parts Diagram

  • Title

1

Ferris 5405557A

PLATE, DEFLECTOR, 52 DECK - BLK
(Superseded to 5405557AAFS)

$19.99

$

Usually ships in 2-12 days

0

2

Ferris 5410404A

SUPPORT, DISCHARGE CHUTE, 52 - BLK
(Superseded to 5410404AYP)

Note: (S/N: 2017100600 & Below)

$24.99

$

Usually ships in 2-12 days

0

3

Ferris 5410498A

WELD, FRAME, CHUTE, 52 - BLK
(Superseded to 5410498AYP)

Note: (S/N: 2017100600 & Below)

$69.99

$

Usually ships in 2-12 days

0

4

Ferris 5405604B

GUARD, 52 DECK, IS2000, RH - RED
(Superseded to 5405604BFS)

$28.99

$

In Stock, only 2 left!

0

5

Ferris 5401605B

GUARD, 52" DECK, IS2000 - LH - RED
(Superseded to 5401605BFS)

$27.99

$

In Stock, only 2 left!

0

6

Ferris 5410575YP

CHUTE, Discharge

Note: (S/N: 2017100600 & Below)

$204.99

$

Usually ships in 2-12 days

0

7

Ferris 5405238A

PLATE, SUPPORT - BLK
(Superseded to 5405238AYP)

$30.99

$

Usually ships in 2-12 days

0

8

Ferris 5102015

FLAP, STRIPER, 52 DECK
(Superseded to 5102015YP)

$62.99

$

Usually ships in 2-12 days

0

9

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017100600 & Below)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

12

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

13

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

17

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5061300

ROD, MOUNT, CHUTE 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

19

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

20

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

21

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

22

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 4 left!

0

23

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

24

Ferris 5101756S

BLADE SET, SET OF THREE (SV)

$

$

Currently unavailable

25

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

26

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5600716

DECK SHELL W/ DECALS, 52, IS2100Z (SV)

Note: (5411408B)(Domestic Models Only)

$2308.99

$

Usually ships in 2-12 days

0

27

Ferris 5600732

DECK SHELL W/ DECALS, 52, IS2100Z ANSI-EXP (SV)

Note: (5411408B)(Export Models Only)

$

$

Currently unavailable

28

Ferris 5413400A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AA)

Note: (S/N: 2017100601 & Above)

$66.99

$

Usually ships in 2-12 days

0

29

Ferris 5413398A

SUPPORT, DISCHARGE CHUTE - BLK

Note: (S/N: 2017100601 & Above)

$31.99

$

Usually ships in 2-12 days

0

30

Ferris 5413500

CHUTE, RUBBER DISCHARGE (5104442)

Note: (S/N: 2017100601 & Above)

$216.99

$

Usually ships in 2-12 days

0

31

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017100601 & Above)

$3.99

$

In Stock, only 1 left!

0
