IS 2100Z (5901304) - Ferris IS2100Z Series 61" Zero-Turn Mower, 27hp Kohler Electrical Group - EFI Engines Parts Diagram

IS2100Z Series 61" Zero-Turn Mower, 27hp Kohler

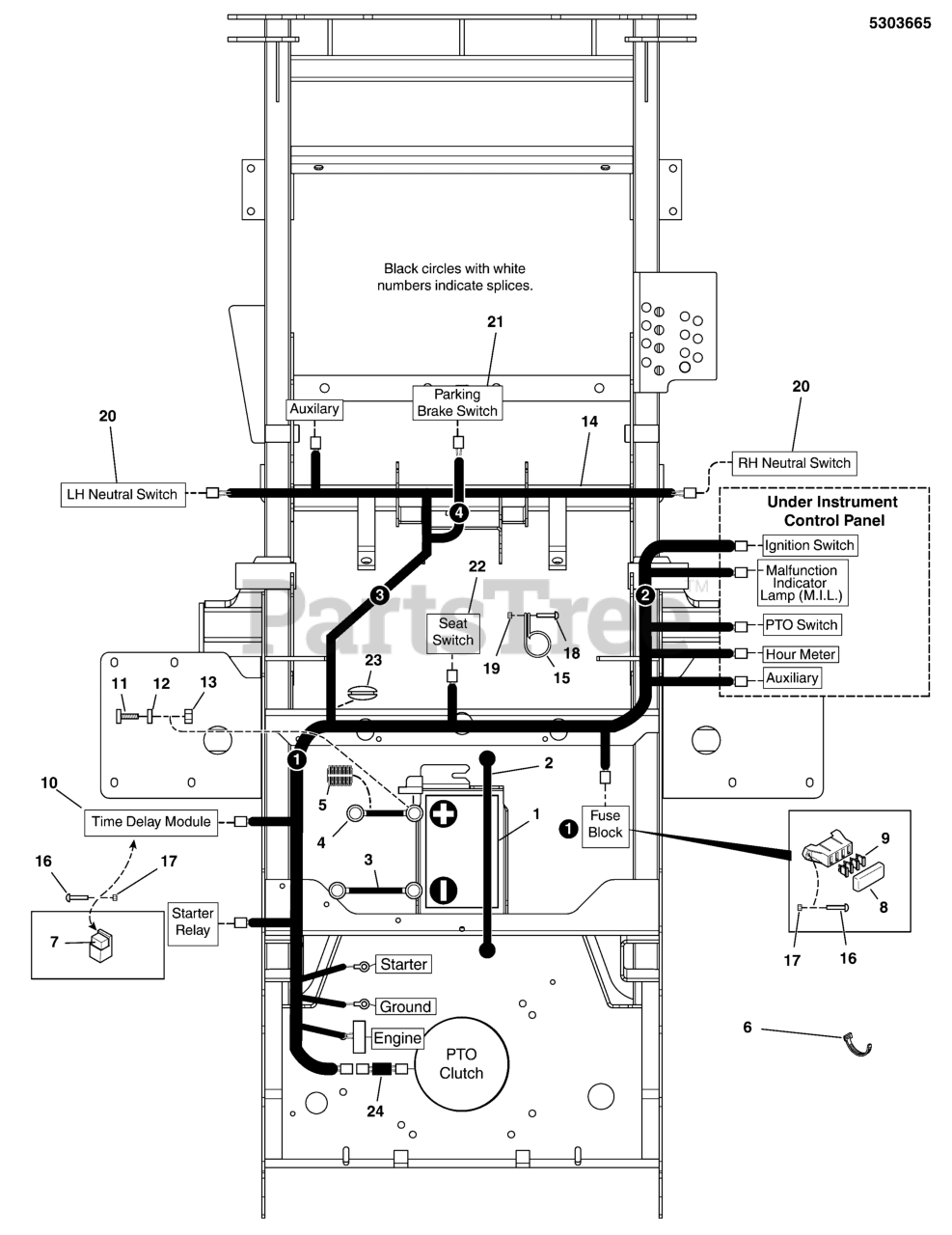

Electrical Group - EFI Engines Parts Diagram

  • Title

1

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

2

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

3

Ferris 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

4

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

5

Ferris 5050927X16

WIRE LOOM, 3/8 ID X 16 IN
(Superseded to 5050927X16YP)

$4.99

$

Usually ships in 2-12 days

0

6

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

7

Ferris 5021766

RELAY, 12 VOLT, 40 AMP
(Superseded to 5021766SM)

Note: (SV)

$24.99

$

Usually ships in 2-12 days

0

8

Ferris 5022805

COVER, VINYL, FUSE BLOCK
(Superseded to 5022805SM)

$6.49

$

In Stock, only 1 left!

0

9

Ferris 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

Note: (SV)

$4.99

$

In Stock, only 2 left!

0

9

Ferris 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

$114.99

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

12

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5412043

WIRE HARNESS, MAIN, KOHLER 29, IS2100Z

Note: (Kohler Engines)(Refer to Note: *)

$391.99

$

Usually ships in 2-12 days

0

14

Ferris 5412468

WIRE HARNESS, 810 OPTIMUM EFI, IS2100Z

Note: (Briggs & Stratton EFI Engines)

$302.99

$

Usually ships in 2-12 days

0

15

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025299X8

SCREW, 1/4-20 X 1, ALLEN BH, CZ
(Superseded to 5025299X8YP)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 80003586

NUT,1/4-20,GR5,HEX,ZC/CL
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

20

Ferris 5101589

SWITCH, PLUNGER, NO, SINGLE POLE, SNAP-IN
(Superseded to 84006599)

$12.99

$

Usually ships in 2-12 days

0

21

Ferris 5101280

SWITCH, PLUNGER, NO/NC SNAP-IN, LOW PROFILE
(Superseded to 5101280YP)

$30.99

$

Usually ships in 2-12 days

0

22

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

23

Ferris 5102677

GROMMET, 1-1/2" ID FOR 1/4" METAL

$

$

Currently unavailable

24

Ferris 5103811

CLUTCH JUMPER W/ DIODE, WARNER

Note: (Models with Kohler EFI engines only)

$34.99

$

Usually ships in 2-12 days

0
