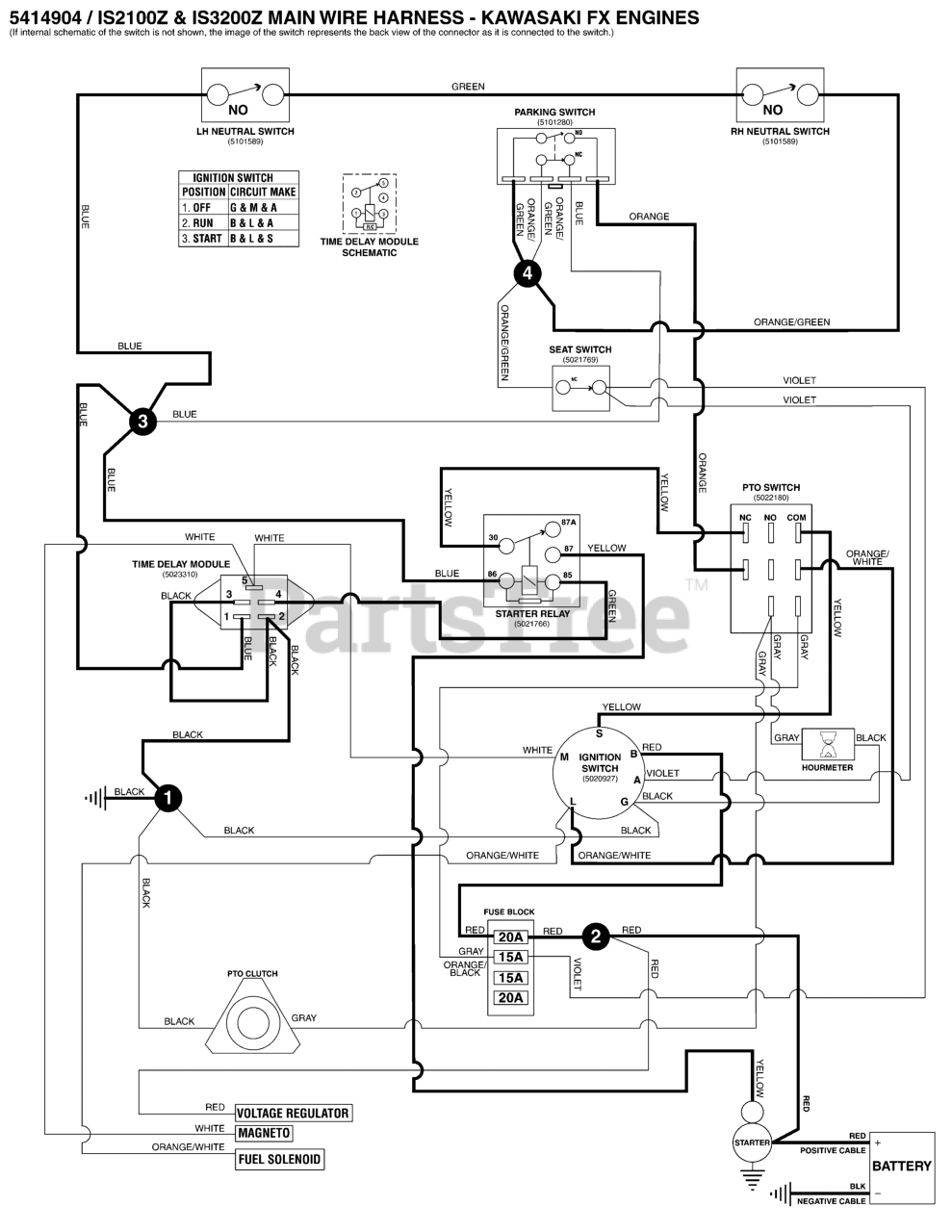

IS 2100Z (5901347) - Ferris IS2100Z Series 52" Zero-Turn Mower, 26hp Kawasaki Electrical Schematic - Cranking Circuit - Kawasaki FX S/N: 2017360079 & Above Parts Diagram

IS2100Z Series 52" Zero-Turn Mower, 26hp Kawasaki
