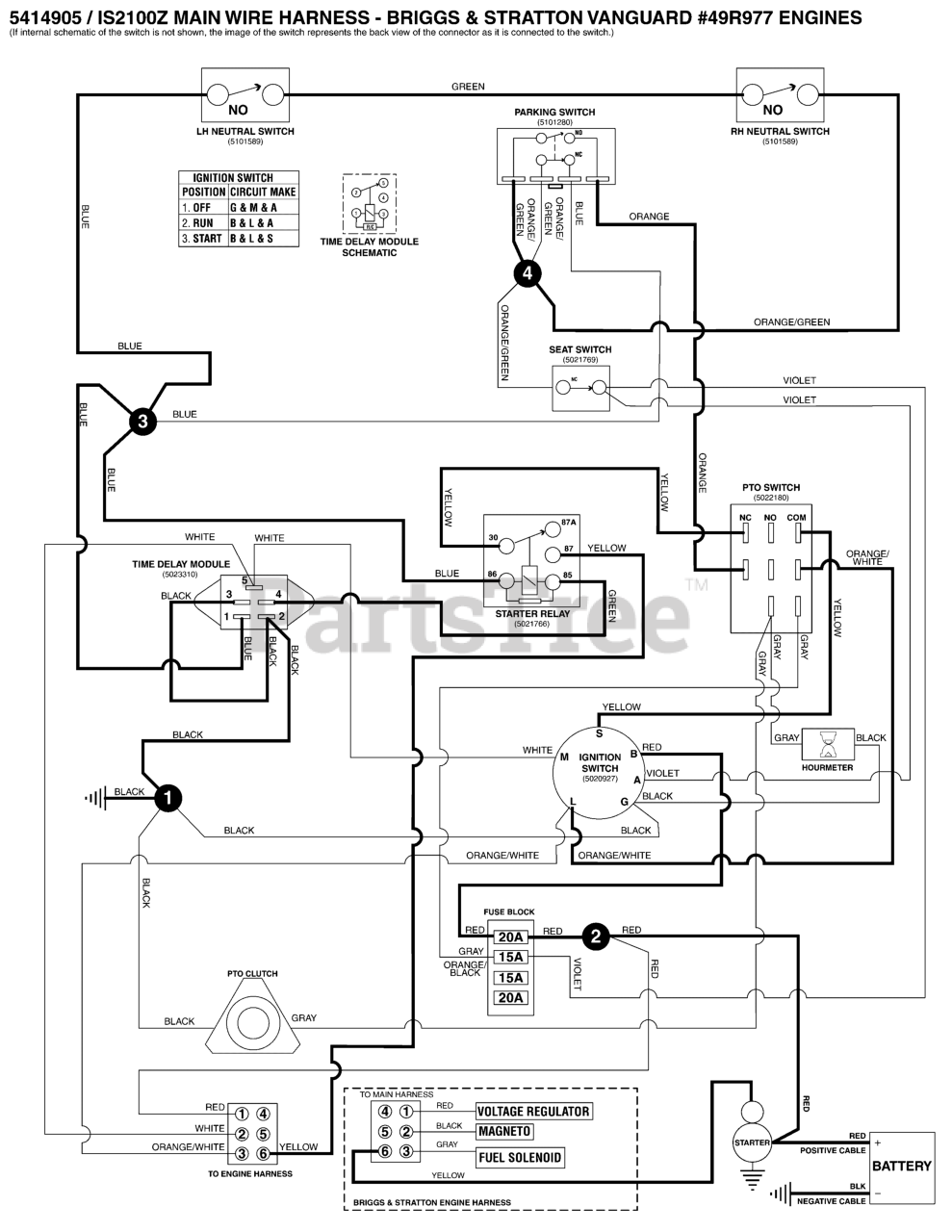

IS 2100Z (5901348) - Ferris IS2100Z Series 52" Zero-Turn Mower, 26hp Briggs & Stratton Electrical Schematic - Cranking Circuit - B&S 49R977 S/N: 2017360079 & Above Parts Diagram

IS2100Z Series 52" Zero-Turn Mower, 26hp Briggs & Stratton
