IS 2600Z (5901477) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge 61" Mower Deck Group - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge

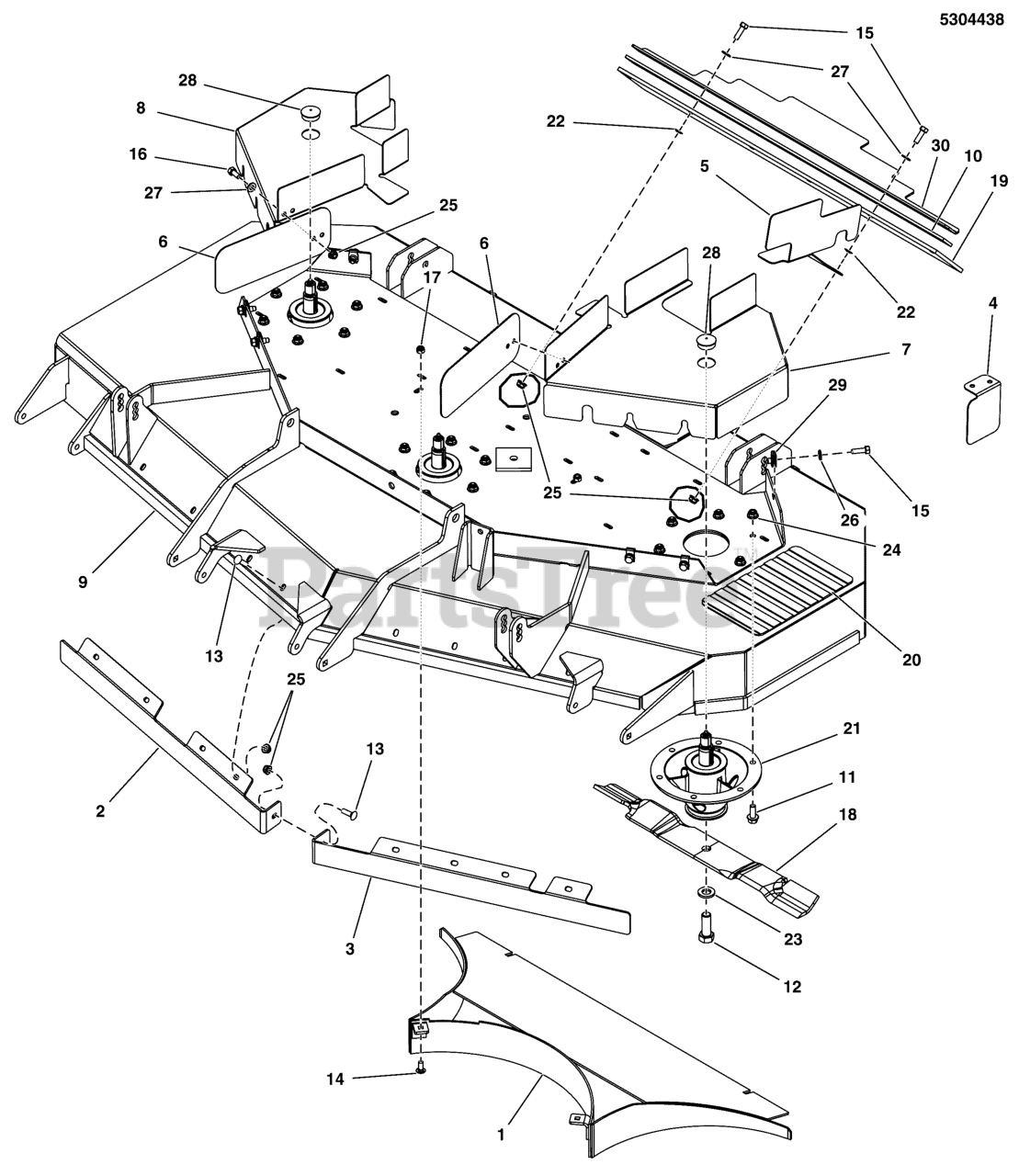

61" Mower Deck Group - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

  • Title

1

Ferris 5414787A

WELD, REAR BAFFLE, 61RD, SHRT - BLK

$234.99

$

Usually ships in 2-12 days

0

2

Ferris 5414758B

BAFFLE, BLOWOUT, 61 ICD, RH - RED
(Superseded to 5414758BFS)

$34.99

$

Usually ships in 2-12 days

0

3

Ferris 5414757B

BAFFLE, BLOWOUT, 61 ICD, LH - RED
(Superseded to 5414757BFS)

$33.99

$

Usually ships in 2-12 days

0

4

Ferris 5414541B

PLATE,DECK BELT GUARD,REAR,LH,61 CE -RED
(Superseded to 5414541BFS)

Note: (Bolts to bottom side of rear suspension cradle and secure by same hardware as LH hydraulic tank mount.)

$10.99

$

Usually ships in 2-12 days

0

5

Ferris 5414540B

PLATE, DECK BELT GUARD,LH REAR,IS2600 EU
(Superseded to 5414540BFS)

$19.99

$

Usually ships in 2-12 days

0

6

Ferris 5414514B

PLATE, GUARD, DECK - IS2600Z EU - RED
(Superseded to 5414514BFS)

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5414466B

PLATE, GUARD, LH DECK - IS2600Z EU - RED
(Superseded to 5414466BFS)

$67.99

$

Usually ships in 2-12 days

0

8

Ferris 5414465B

PLATE, GUARD, RH DECK - IS2600Z EU - RED
(Superseded to 5414465BFS)

$61.99

$

Usually ships in 2-12 days

0

9

Ferris 5600939

DECK SHELL W/DECALS,61RDCE,2600,5413819B

Note: (S/N: 2017954955 & Below)

$2792.99

$

Usually ships in 2-12 days

0

9

Ferris 5601132

DECK SHELL W/DECALS, 2600-61E (5417039B)

Note: (S/N: 2017954956 & Above)(Refer to Note: *)

$2792.99

$

Usually ships in 2-12 days

0

10

Ferris 5405238A

PLATE, SUPPORT - BLKV
(Superseded to 5405238AYP)

Note: (S/N: 2017528586 & Below)

$30.99

$

Usually ships in 2-12 days

0

11

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

14

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

17

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

18

Ferris 5103305S

BLADE, SET, MULCH, 61 DECK

Note: (Set of 3 blades)

$84.99

$

Usually ships in 2-12 days

0

19

Ferris 5102015

FLAP, STRIPER, 61" DECK, IS3100, S200X
(Superseded to 5102015YP)

$62.99

$

Usually ships in 2-12 days

0

20

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

21

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0 - 6-BOLT
(Superseded to 5100993SM)

$219.99

$

In Stock, only 2 left!

0

22

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 3 left!

0

24

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

25

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 3 left!

0

27

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

28

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 3 left!

0

29

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

30

Ferris 5416413A

PLATE, REAR DEFLECTOR, 61RD - BLK

Note: (S/N: 2017528587 & Above)

$36.99

$

Usually ships in 2-12 days

0
