IS 2600Z (5901477) - Ferris IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge Parking Brake Group S/N: 2017954955 & Below Parts Diagram

IS2600Z Series 61" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge

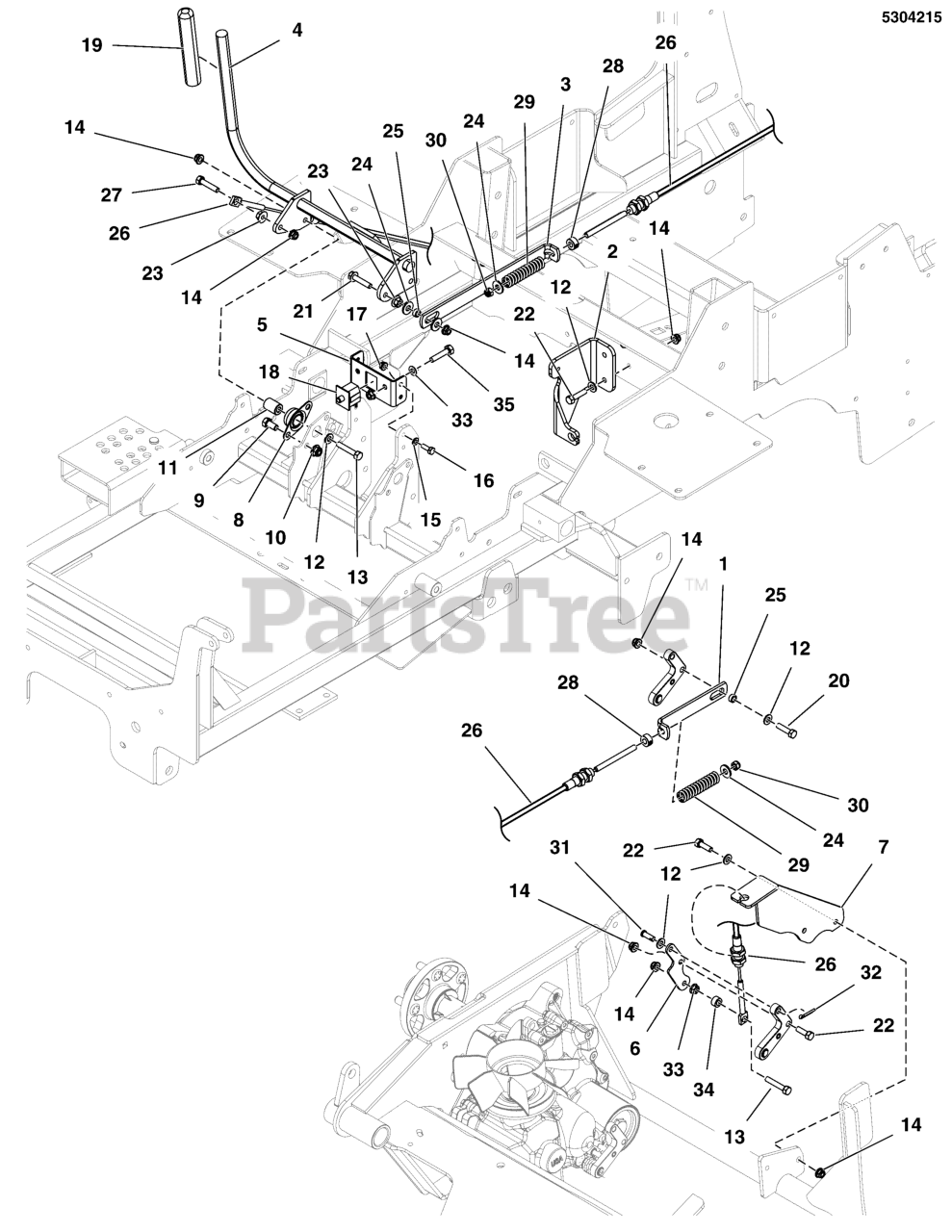

Parking Brake Group S/N: 2017954955 & Below Parts Diagram

  • Title

1

Ferris 5414393A

LINK, BRAKE LOCK, RH, IS2600Z - BLK

$10.99

$

Usually ships in 2-12 days

0

2

Ferris 5414150B

MOUNT, BRAKE CABLE - RED

$26.99

$

Usually ships in 2-12 days

0

3

Ferris 5414144A

LINK, BRAKE, IS2600 - BLK

$12.99

$

Usually ships in 2-12 days

0

4

Ferris 5414142A

WELD, BRAKE SHAFT, IS2600 - BLK

$79.99

$

Usually ships in 2-12 days

0

5

Ferris 5414114B

PLATE, BRAKE STOP - RED

$13.99

$

Usually ships in 2-12 days

0

6

Ferris 5413575A

PLATE, BRAKE ARM, IS2100 - BLK
(Superseded to 5413575AYP)

$6.49

$

Usually ships in 2-12 days

0

7

Ferris 5413066AYP

BRACKET, Mounting

$23.99

$

Usually ships in 2-12 days

0

8

Ferris 5021098

BEARING, 3/4" FLANGED, BRONZE
(Superseded to 5021098SM)

$13.99

$

In Stock, only 3 left!

0

9

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Ferris 5042134

SPACER, .32 X .75 X 1.06, PM
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

12

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 CZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

17

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

18

Ferris 5101280

SWITCH, LOW PROF, NC/NO
(Superseded to 5101280YP)

$30.99

$

Usually ships in 2-12 days

0

19

Ferris 5101038

GRIP, FOAM, 3/4 ID X 6 X .187
(Superseded to 5101038SM)

$7.49

$

In Stock, only 1 left!

0

20

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

21

Ferris 5023157

BOLT, 5/16-18 X 1 1/2 FLANGE
(Superseded to 5023157SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

26

Ferris 5104235

CABLE, PARKING BRAKE, 32"
(Superseded to 5104235YP)

$101.99

$

Usually ships in 2-12 days

0

27

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 CZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

29

Ferris 5100385

SPRING, COMP. 1/2 ID X .140 WIRE X 3.25
(Superseded to 5100385YP)

$9.49

$

Usually ships in 2-12 days

0

30

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

31

Ferris 5025213X7

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 84003641)

$2.99

$

Usually ships in 2-12 days

0

32

Ferris 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 1 left!

0

33

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

34

Ferris 5103767

SPACER, .33 X .63 X .36, PM, CZ
(Superseded to 5103767YP)

$7.49

$

Usually ships in 2-12 days

0

35

Ferris 5025055X12

BOLT, 5/16-18 X 1-1/2 GD5 TFL
(Superseded to 5025055X12SM)

$3.99

$

Usually ships in 2-12 days

0
