IS 2600Z (5901930) - Ferris IS2600Z Series 52" Zero-Turn Mower, 24hp Yanmar 52" Mower Deck Group - Pulleys, Belt & Idler Arm - S/N: 2017528587 & Above Parts Diagram

IS2600Z Series 52" Zero-Turn Mower, 24hp Yanmar

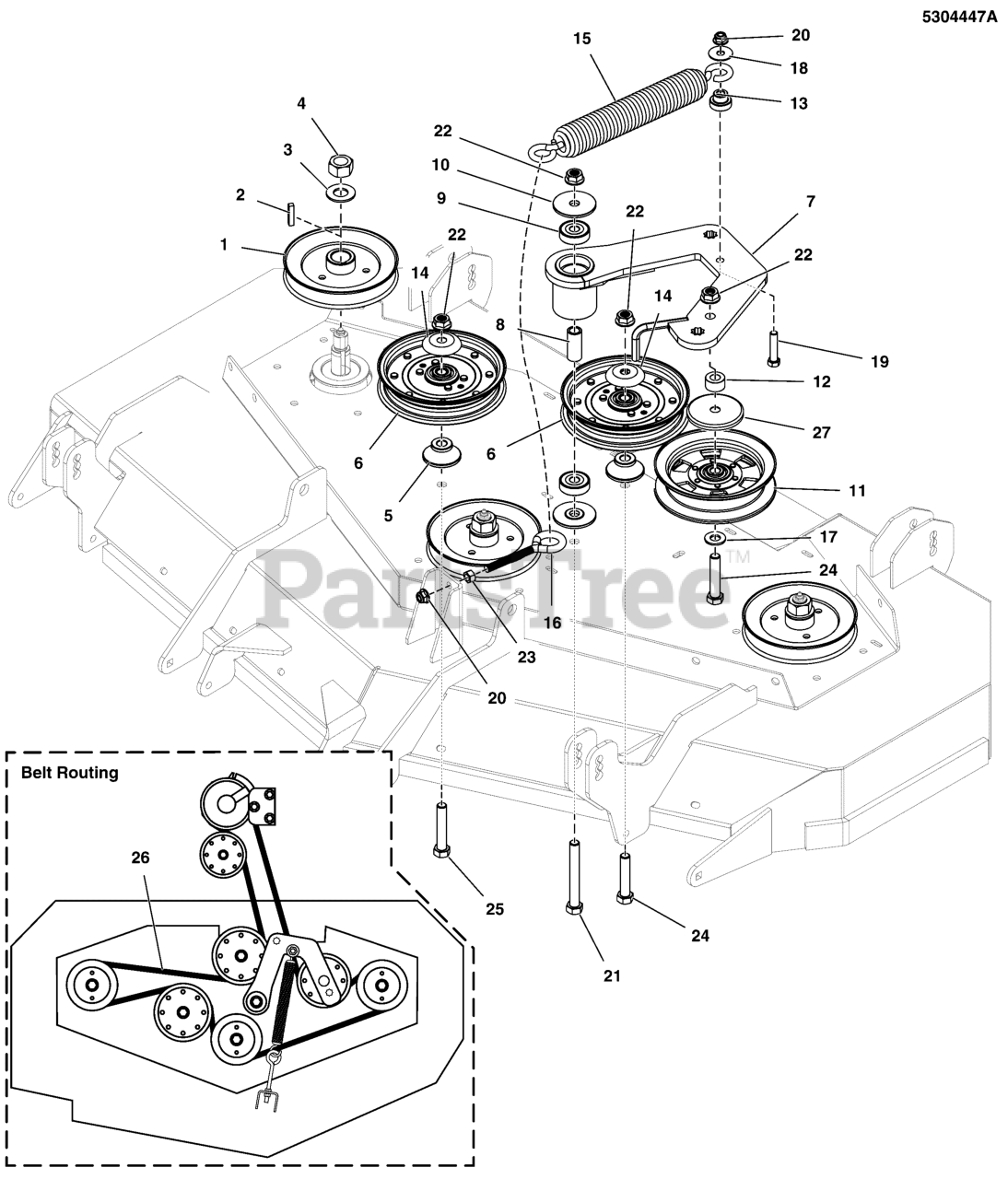

52" Mower Deck Group - Pulleys, Belt & Idler Arm - S/N: 2017528587 & Above Parts Diagram

  • Title

1

Ferris 5101351

PULLEY, 5.926OB X .985ID, SINGLE B-SEC
(Superseded to 5101351YP)

$69.99

$

In Stock, only 1 left!

0

2

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 1 left!

0

3

Ferris 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, only 1 left!

0

5

Ferris 5104342

IDLER MOUNT, .88 HIGH
(Superseded to 5104342YP)

$11.99

$

Usually ships in 2-12 days

0

6

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: (S/N: 2018066400 and below)

$

$

Not available

6

Ferris 5104717

PULLEY, FLT IDLR, 6.0 X 1.0 X .50, CZ
(Superseded to 5104717YP)

Note: (S/N: 2018066401 and above)

$58.99

$

Usually ships in 2-12 days

0

7

Ferris 5416503A

WELD, IDLER ARM, IS2600Z-52" - BLK

$

$

Currently unavailable

8

Ferris 5104381

SPACER, .510 X .750 X 1.749, CZ
(Superseded to 5104381YP)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 3 left!

0

10

Ferris 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

Usually ships in 2-12 days

0

11

Ferris 5104716

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID
(Superseded to 5104716YP)

$59.99

$

In Stock, only 1 left!

0

12

Ferris 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, only 1 left!

0

13

Ferris 5102406

SPACER, .38 X 1.13 X .781 STEP, CZ
(Superseded to 5102406FS)

$15.99

$

Usually ships in 2-12 days

0

14

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

Note: (S/N: 2018066400 and below)

$10.99

$

In Stock, only 2 left!

0

14

Ferris 5105145

SHIELD, BEARING, 1/2 ID X 2-7/8 OD, CZ
(Superseded to 5105145YP)

Note: (S/N: 2018066401 and above)

$4.49

$

In Stock, only 2 left!

0

15

Ferris 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

Usually ships in 2-12 days

0

16

Ferris 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

17

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

18

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

19

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

20

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 14

0

21

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

Usually ships in 2-12 days

0

22

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 9

0

23

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 2 left!

0

25

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 2 left!

0

26

Ferris 5104059

BELT, SPB/XPB 193.9" EL, LRG ARAMID, 2T
(Superseded to 5104059YP)

$154.99

$

Usually ships in 2-12 days

0

27

Ferris 5105145

SHIELD, BEARING, 1/2 ID X 2-7/8 OD, CZ
(Superseded to 5105145YP)

$4.49

$

In Stock, only 2 left!

0
