IS 3000Z (5901055) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki (SN: 3630 & Below) Engine Accessories Group - Kawasaki (S/N: 421 & above) Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

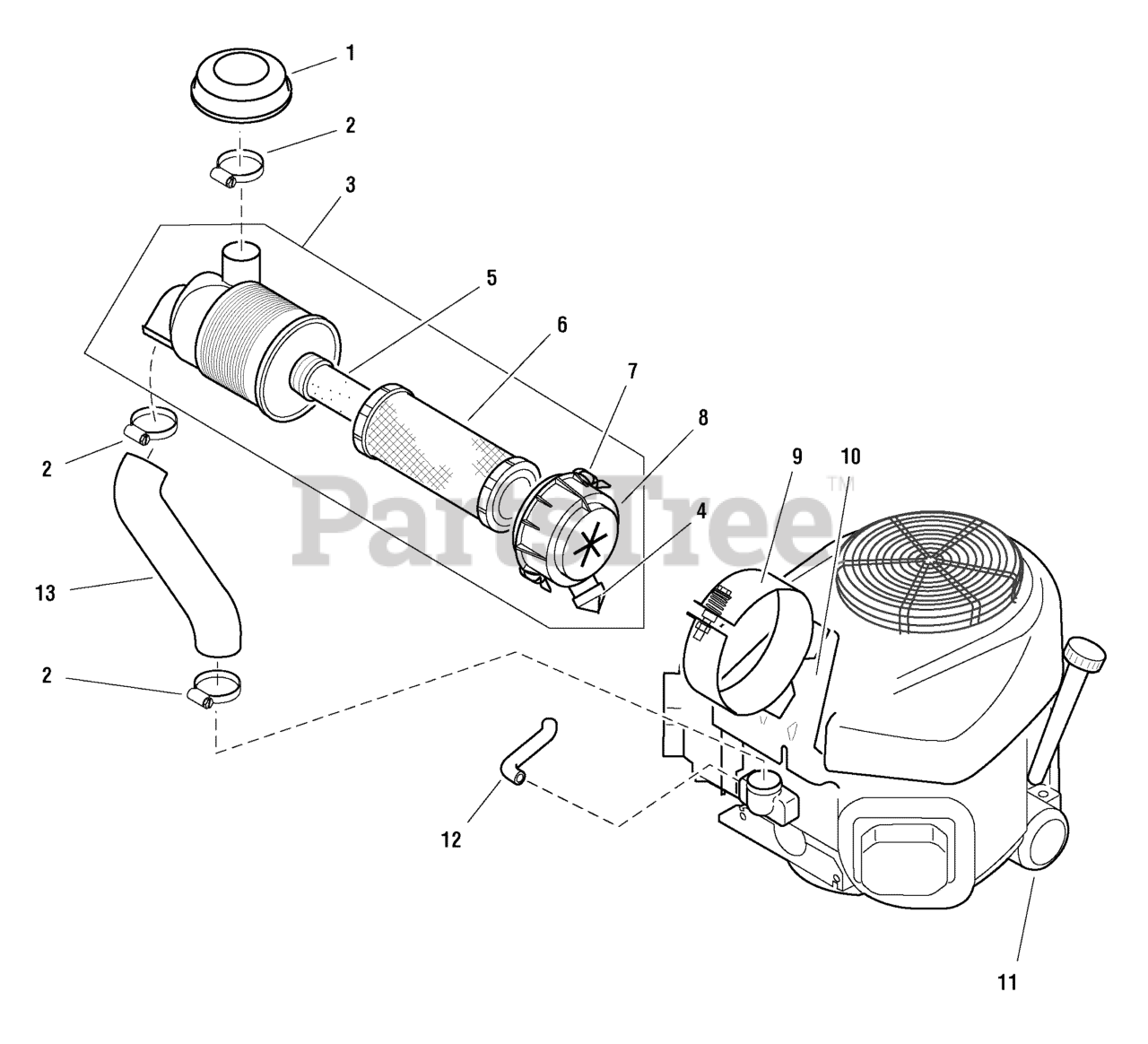

Engine Accessories Group - Kawasaki (S/N: 421 & above) Parts Diagram

  • Title

1

Ferris 5023143

RAIN CAP

$

$

Not available

2

Ferris 5023146

CLAMP

$11.99

$

Usually ships in 2-12 days

0

3

Ferris 5023139

AIR FILTER ASSEMBLY, Complete
(Superseded to 5023139SM)

Note: (Includes Ref No. 4 - 8)

$272.99

$

Usually ships in 2-12 days

0

4

Ferris 5023144

RUBBER, Dust Valve

$

$

Not available

5

Ferris 5023140

AIR FILTER, Secondary
(Superseded to 5023140SM)

$

$

Not available

6

Ferris 5023141

AIR FILTER, Primary
(Superseded to 5023141SM)

$

$

Not available

7

Ferris 5023147

CLAMP, Cap

$

$

Not available

8

Ferris 5023138

CAP, FIlter Case

$

$

Not available

9

Ferris 5023145

CASE BRACKET, Complete

$

$

Not available

10

Ferris 5023142

BRACKET PLATE

$

$

Not available

11

Ferris 5021334X1

OIL FILTER (49065-2078)
(Superseded to 5213341SM)

$

$

Not available

12

Ferris 5023148

BREATHER TUBE

$

$

Not available

13

Ferris 5023149

AIR INLET TUBE

$

$

Not available
