IS 3000Z (5901055) - Ferris IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki (SN: 3630 & Below) Engine & PTO Group - Kawasaki (S/N: 420 & below) Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 25hp Kawasaki

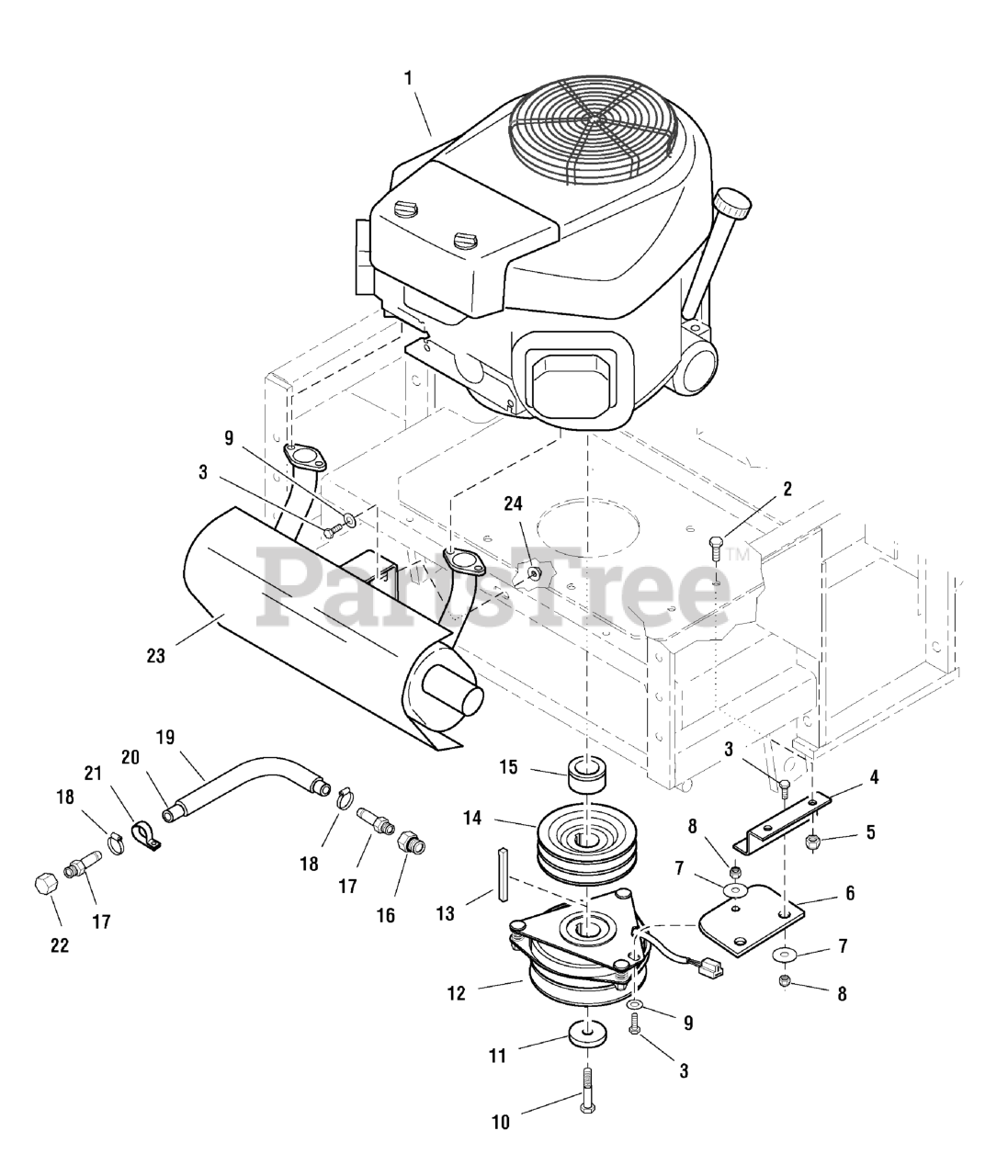

Engine & PTO Group - Kawasaki (S/N: 420 & below) Parts Diagram

  • Title

1

ENGINE, Kawasaki (Model FH721V)

$

$

Not available

1

Ferris 5021334X1

OIL FILTER (49065-2078)
(Superseded to 5213341SM)

$

$

Not available

1

PRE CLEANER (11013-7009)

$

$

Not available

1

AIR FILTER (11013-7010)

$

$

Not available

1

Ferris 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$12.99

$

Usually ships in 2-12 days

0

2

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

3

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

4

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

5

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

6

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

8

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5045938

CRANKSHAFT BOLT, 7/16 x 2-1/4
(Superseded to 5102863FS)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5045475

SPACER, .45 x 1.88 x .38
(Superseded to 5045475SM)

$14.99

$

Usually ships in 2-12 days

0

12

Ferris 5023232

ELECTRIC CLUTCH
(Superseded to 5023232SM)

$744.99

$

Usually ships in 2-12 days

0

13

Ferris 5050407X2

KEY, 1/4 SQ. X 3
(Superseded to 5050407X24YP)

$6.49

$

Usually ships in 2-12 days

0

14

Ferris 5047075

CRANKSHAFT PULLEY

$128.99

$

Usually ships in 2-12 days

0

15

Ferris 5047033

SPACER, 1.13 x 1.75 x 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

16

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

17

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

18

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

19

Ferris 5050862X12

WIRE LOOM, 12"
(Superseded to 5050862X12SM)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5050857X13

HOSE, 13"
(Superseded to 5050857X13SM)

$8.49

$

Usually ships in 2-12 days

0

21

Ferris 5021500

CLAMP, Vinyl
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

23

Ferris 5022953

NLA - USE 5100975 (1), 5025057 (2), 5025155 (2), 5043815 (2) & 5025011X12 (2)

$

$

Currently unavailable

24

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0
