IS 3000Z (5901057) - Ferris IS3000Z Series 61" Zero-Turn Mower, 23hp Kawasaki 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 23hp Kawasaki

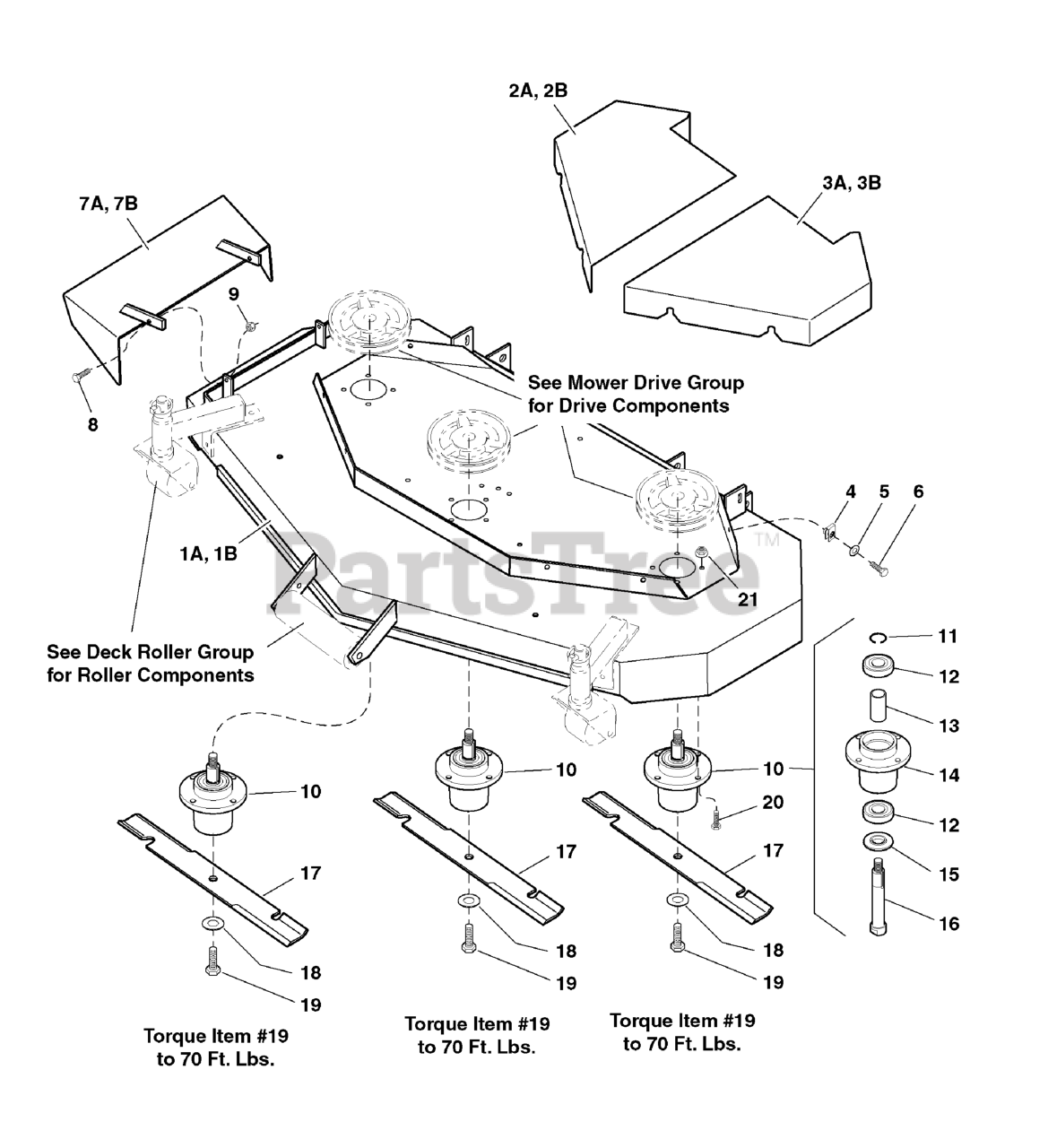

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1A

Ferris 5046437B

DECK SHELL W/DECALS, 61"

Note: (23/61 model, S/N: 101-425 / 25/61 model, S/N: 101-1525)

$

$

Not available

1B

Ferris 5646953

DECK SHELL W/ DECALS, 61"

Note: (23/61 model, S/N: 426 & above / 25/61 model, S/N: 1526 & above)

$1994.99

$

Usually ships in 2-12 days

0

2A

Ferris 5046440B

SPINDLE COVER-RH
(Superseded to 5046440BFS)

Note: (23/61 model, S/N: 101-425 / 25/61 model, S/N: 101-1525)

$136.99

$

Usually ships in 2-12 days

0

2B

Ferris 5046997B

SPINDLE COVER-RH
(Superseded to 5046997BFS)

Note: (23/61 model, S/N: 426 & above / 25/61 model, S/N: 1526 & above)

$133.99

$

Usually ships in 2-12 days

0

3A

Ferris 5046441B

SPINDLE COVER-LH
(Superseded to 5046441BFS)

Note: (23/61 model, S/N: 101-425 / 25/61 model, S/N: 101-1525)

$139.99

$

Usually ships in 2-12 days

0

3B

Ferris 5046999B

SPINDLE COVER-LH
(Superseded to 5046999BFS)

Note: (23/61 model, S/N: 426 & above / 25/61 model, S/N: 1526 & above)

$130.99

$

Usually ships in 2-12 days

0

4

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

7A

Ferris 5046445B

DISCHARGE CHUTE

Note: (23/61 model, S/N: 101-425 / 25/61 model, S/N: 101-1525)

$131.99

$

Usually ships in 2-12 days

0

7B

Ferris 5046985B

DISCHARGE CHUTE

Note: (23/61 model, S/N: 426 & above / 25/61 model, S/N: 1526 & above)

$142.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5046363

* SPINDLE ASSEMBLY, Complete
(Superseded to 5061095SM)

Note: (Includes Ref No. 11 - 16)

$222.99

$

Usually ships in 2-12 days

0

11

Ferris 5046363X6

USE 61095

$

$

Currently unavailable

12

Ferris 5046363X5

USE 61095
(Superseded to 5061095SM)

$222.99

$

Usually ships in 2-12 days

0

13

Ferris 5046363X4

USE 61095
(Superseded to 5046363X4YP)

$11.99

$

Usually ships in 2-12 days

0

14

Ferris 5046363X1

USE 61095
(Superseded to 5061095SM)

$222.99

$

Usually ships in 2-12 days

0

15

Ferris 5046363X3

USE 61095
(Superseded to 5061095SM)

$222.99

$

Usually ships in 2-12 days

0

16

Ferris 5046363X2

USE 61095
(Superseded to 5061095SM)

$222.99

$

Usually ships in 2-12 days

0

17

Ferris 5020842

MOWER BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, Qty 11

0

18

Ferris 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 3 left!

0

19

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025011X9

BOLT, 5/16-18 x 1-1/8
(Superseded to 5025011X9SM)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0
