IS 3000Z (5901060) - Ferris IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 3631 & Above) Seat & Mount Group Parts Diagram

IS3000Z Series 61" Zero-Turn Mower, 27hp Kohler

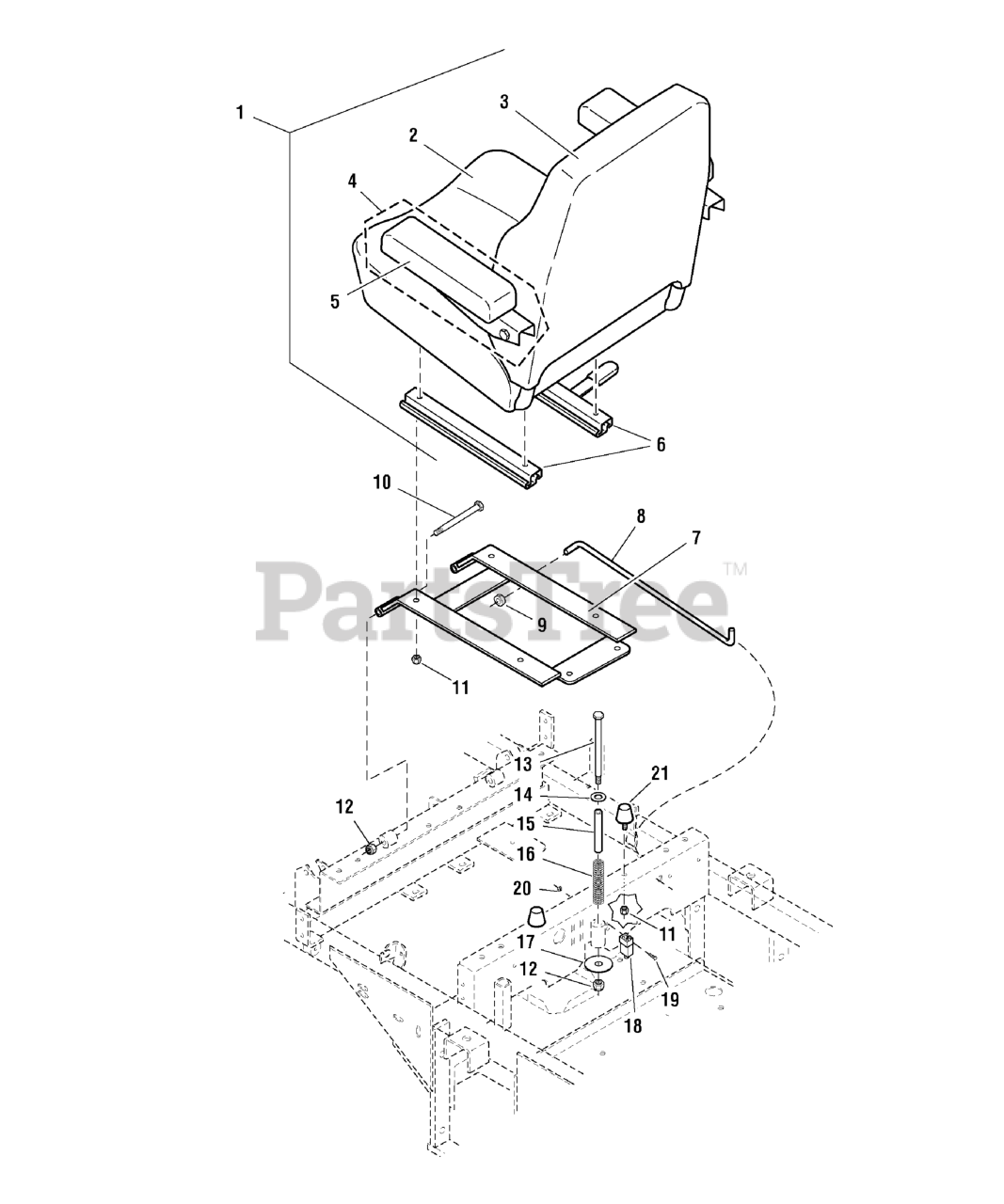

Seat & Mount Group Parts Diagram

  • Title

1

Ferris 5022955

SEAT, Deluxe, Gray, Complete

Note: (Includes Ref No. 2 - 6)

$1138.99

$

Usually ships in 2-12 days

0

2

Ferris 5022955X1

SEAT Bottom Cover

$240.99

$

Usually ships in 2-12 days

0

3

Ferris 5022955X2

SEAT Back Cover

$227.99

$

Usually ships in 2-12 days

0

4

Ferris 5022955X3

ARM REST SET

Note: (Includes Ref No. 5)

$361.99

$

Usually ships in 2-12 days

0

5

Ferris 5022955X4

ARM REST PADS

$163.99

$

In Stock, only 1 left!

0

6

Ferris 5020930X3

SEAT ADJUSTER RAILS (set of 2)

$

$

Currently unavailable

7

Ferris 5047744B

WELD, SEAT MOUNT

$142.99

$

Usually ships in 2-12 days

0

8

Ferris 5046470

SEAT STOP ROD
(Superseded to 5046470SM)

$33.99

$

Usually ships in 2-12 days

0

9

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

10

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 4 left!

0

13

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 6

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 7

0

16

Ferris 5022798

SPRING, Compression
(Superseded to 5022798SM)

$20.99

$

Usually ships in 2-12 days

0

17

Ferris 5025326

WASHER, 3/8 x 2
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

18

SWITCH (see electrical group)

$

$

Not available

19

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 25029

NUT, #10-24 Hex

$

$

Currently unavailable

21

Ferris 5022612

RUBBER BUMPER
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

22

Ferris 5100636

SPRING, EXTENSION, SEAT ADJUSTMENT (YEL OR BLK)
(Superseded to 5100636SM)

Note: (SV)(Not an illustrated part.) (2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0
