IS 3100Z (5900612) - Ferris IS3100Z Series 61" Zero-Turn Mower, 30hp Kohler 61" Mower Deck - Rollers & Casters Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 30hp Kohler

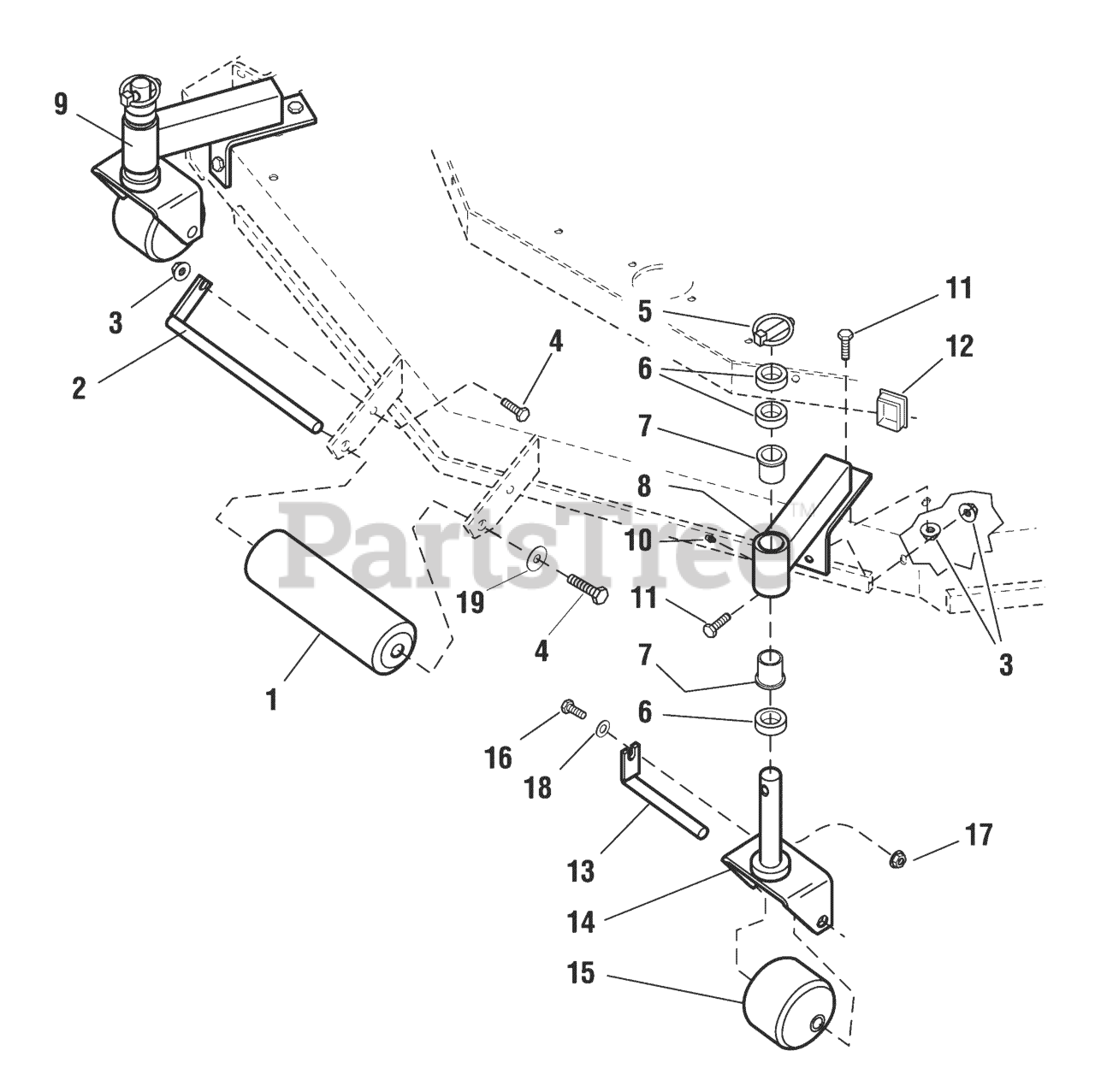

61" Mower Deck - Rollers & Casters Parts Diagram

  • Title

1

Ferris 5020785

ROLLER, DECK
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 11

0

2

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

$46.99

$

In Stock, only 1 left!

0

3

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

5

Ferris 5020655

PIN, LYNCH, 7/16
(Superseded to 5020655SM)

$10.99

$

In Stock, only 4 left!

0

6

Ferris 5041476

SPACER, 1.02 X 1.56 X .50
(Superseded to 5041476SM)

$5.49

$

Usually ships in 2-12 days

0

7

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

8

Ferris 5600280

ASSM, ARM, DECK CASTER, LH

Note: (Includes bushings and grease fitting)

$117.99

$

Usually ships in 2-12 days

0

9

Ferris 5600279

ASSM, ARM, DECK CASTER, RH

Note: (Includes bushings and grease fitting)

$117.99

$

Usually ships in 2-12 days

0

10

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5022098

CAP, 1-1/2 X 2 X 11GA, PLASTIC
(Superseded to 5022098SM)

$3.99

$

In Stock, Qty 5

0

13

Ferris 5045034B

WELD, CASTER ROLLER PIN
(Superseded to 5045034BFS)

$31.99

$

In Stock, only 1 left!

0

14

Ferris 5045188B

WELD, CASTER YOKE
(Superseded to 5045188BFS)

$107.99

$

In Stock, only 2 left!

0

15

Ferris 5022060

ROLLER, SMALL
(Superseded to 5022060SM)

$44.99

$

Usually ships in 2-12 days

0

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

17

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

18

Ferris 5025292

WASHER, 5/16" GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

19

Ferris 5100548

WASHER, .390 X 1.50 X .109 YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0
