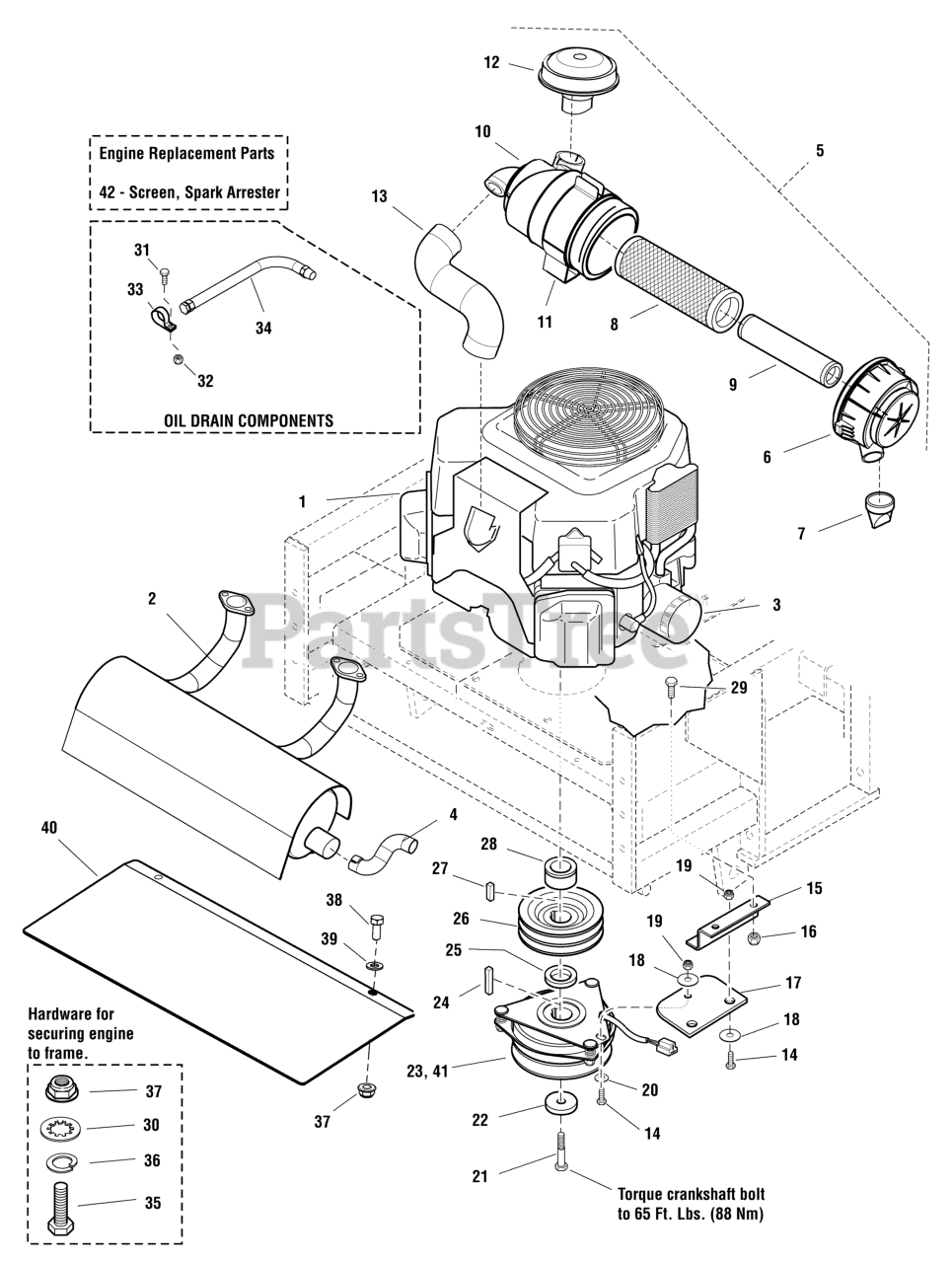

IS 3100Z (5900612) - Ferris IS3100Z Series 61" Zero-Turn Mower, 30hp Kohler Engine & PTO Group - Kohler Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 30hp Kohler

Engine & PTO Group - Kohler Parts Diagram

  • Title

1

ENGINE

$

$

Not available

2

Ferris 5100130X2

MUFFLER

$512.99

$

Usually ships in 2-12 days

0

3

Ferris 5021144X1

OIL FILTER

$

$

Not available

4a

Ferris 5100517

EXHAUST EXTENSION

$119.99

$

Usually ships in 2-12 days

0

4b

Ferris 5022810

CLAMP, EXHAUST EXTENSION
(Superseded to 5022810FS)

Note: (Not shown.)

$7.49

$

Usually ships in 2-12 days

0

5

Ferris 5022892X4

KIT, 5.5 HD AIR CLEANER

Note: (Includes Ref. Nos 6 - 13)

$376.99

$

Usually ships in 2-12 days

0

6

Ferris 5022892X5

END CAP

$112.99

$

Usually ships in 2-12 days

0

7

Ferris 5022892X6

DUST VALVE

$

$

Currently unavailable

8

Ferris 5022892X1

PRIMARY PAPER ELEMENT

$

$

Currently unavailable

9

Ferris 5022892X2

SECONDARY ELEMENT

$

$

Currently unavailable

10

Ferris 5022892X7

HOUSING

$

$

Currently unavailable

11

Ferris 5022892X8

HOUSING MOUNT BRACKET

$142.99

$

Usually ships in 2-12 days

0

12

Ferris 5022892X3

RAIN COVER

$80.99

$

Usually ships in 2-12 days

0

13

Ferris 5100130X1

INLET HOSE

$72.99

$

Usually ships in 2-12 days

0

14

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0

17

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

18

Ferris 5025165

WASHER, 3/8" FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

19

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5045938

BOLT, CRANKSHAFT, 7/16"X2-1/4
(Superseded to 5102863FS)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5045475

SPACER, .45 X 1.88 X .38
(Superseded to 5045475SM)

$14.99

$

Usually ships in 2-12 days

0

23

Ferris 5023233

CLUTCH, OGURA, 250 ft lbs - 1.13"
(Superseded to 5023233SM)

Note: (S/N: 2000496995 & Below / 2000497898 & Above)

$683.99

$

Usually ships in 2-12 days

0

24

Ferris 5050407X16

KEY, 1/4 SQ X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

25

Ferris 5042945

SPACER, 1.13 X 2.00 X .19

$

$

Currently unavailable

26

Ferris 5047075

PULLEY, CRANKSHAFT

$128.99

$

Usually ships in 2-12 days

0

27

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

29

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

30

Ferris 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

31

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

32

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 5021500

CLAMP, VINYL
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

34

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

35

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

37

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

38

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

39

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

40

Ferris 5401511B

PLATE, HEAT SHIELD, 3100ZK - RED

$

$

Currently unavailable

41

Ferris 5100875

CLUTCH, WARNER,# 5218-158
(Superseded to 5100875SM)

Note: (S/N: 2000496996 - 2000497897)

$542.99

$

In Stock, only 1 left!

0

42

Ferris 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (Not shown)

$84.99

$

Usually ships in 2-12 days

0

43

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not shown)

$3.49

$

Usually ships in 2-12 days

0
