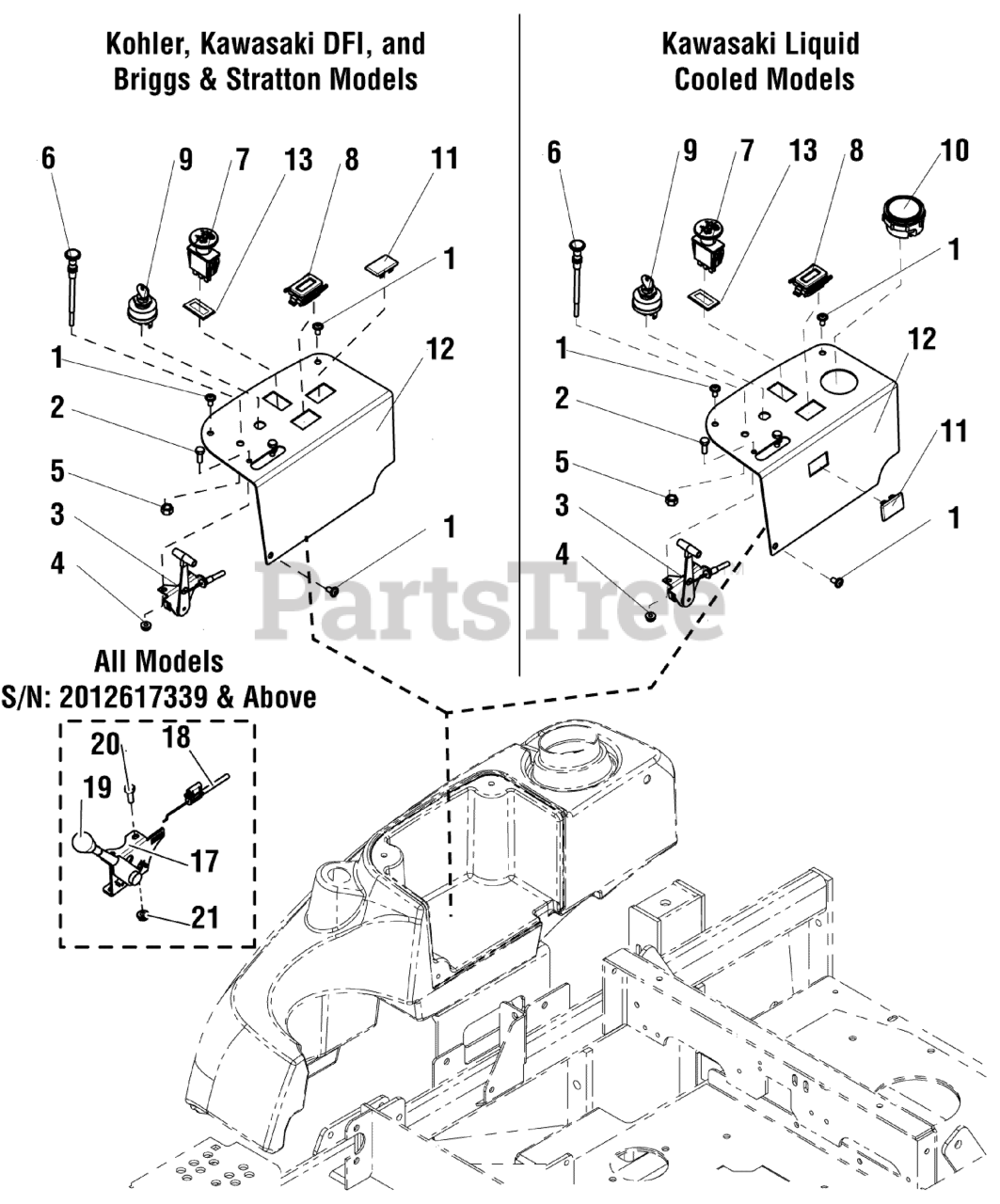

IS3100Z Series 61" Zero-Turn Mower, 30hp Kohler

Instrument Control Group Parts Diagram

  • Title

1

Ferris 5025299X4

SCREW, ALLEN HEAD, 1/4-20X1/2
(Superseded to 5106469)

$2.49

$

In Stock, only 3 left!

0

2

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5
(Superseded to 5025010X6SM)

Note: (S/N: 2012617338 & Below)

$3.99

$

In Stock, Qty 13

0

3

Ferris 5021662

CABLE, THROTTLE CONTROL, 54"

Note: (S/N: 2012617338 & Below)

$80.99

$

Usually ships in 2-12 days

0

4

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (S/N: 2012617338 & Below)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025035

NUT, HEX 3/8-24
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

6a

Ferris 5102624

CABLE, CHOKE CONTROL, 56", DETENTED

Note: (Kohler Models)

$53.99

$

Usually ships in 2-12 days

0

6b

Ferris 5047779

CABLE, CHOKE CONTROL, 51" (Z)
(Superseded to 5047779SM)

Note: (Kawasaki Liquid Cooled Models)

$52.99

$

Usually ships in 2-12 days

0

6c

Ferris 5046361

CABLE, CHOKE CONTROL, (51")

Note: (Kawasaki DFI and Briggs & Stratton Models)

$53.99

$

In Stock, only 1 left!

0

7

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 19

0

8

Ferris 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

9

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref. Nos 14, 15, and 16)

$33.99

$

Usually ships in 2-12 days

0

10

Ferris 5023393

GAUGE, WATER TEMPERATURE
(Superseded to 5023393YP)

Note: (Kawasaki Liquid Cooled Models)

$72.99

$

Usually ships in 2-12 days

0

11

Ferris 1709188

HOLE, PLUG DASH
(Superseded to 1709188SM)

$4.99

$

In Stock, Qty 5

0

12a

Ferris 5411993AA

PANEL, CONTROL

Note: (S/N: 2012617339 & Above)

$

$

Currently unavailable

12b

Ferris 5403386A

PANEL, CONTROL

Note: (Kawasaki Liquid Cooled Models - S/N: 2012617339 & Above)

$33.99

$

Usually ships in 2-12 days

0

12c

Ferris 5401109A

PANEL. CONTROL

Note: (S/N: 2012617338 & Below)

$

$

Currently unavailable

12d

Ferris 5400979A

PANEL, CONTROL

Note: (Kawasaki Liquid Cooled Models - S/N: 2012617338 & Below)

$

$

Not available

13

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5022789

KEY, IGNITION MOLDED SET

Note: (Not shown)

$

$

Currently unavailable

15

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (Not shown)

$4.49

$

In Stock, only 1 left!

0

16

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (Not shown)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

Note: (S/N: 2012617339 & Above)

$48.99

$

Usually ships in 2-12 days

0

18

Ferris 5101072

CABLE, THROTTLE, 52"
(Superseded to 5101072FS)

Note: (S/N: 2012617339 & Above)

$27.99

$

In Stock, only 1 left!

0

19

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

Note: (S/N: 2012617339 & Above)

$10.99

$

Usually ships in 2-12 days

0

20

Ferris 5025179X6

SCREW, #10-24 X 3/4"
(Superseded to 5025179X6SM)

Note: (S/N: 2012617339 & Above)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5025271

NUT, #10-24 HEN NYLON LOCK
(Superseded to 5025271FS)

Note: (S/N: 2012617339 & Above)

$3.99

$

Usually ships in 2-12 days
