IS 3100Z (5900612) - Ferris IS3100Z Series 61" Zero-Turn Mower, 30hp Kohler Main Frame & Front Suspension Group - 61" Deck Model Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 30hp Kohler

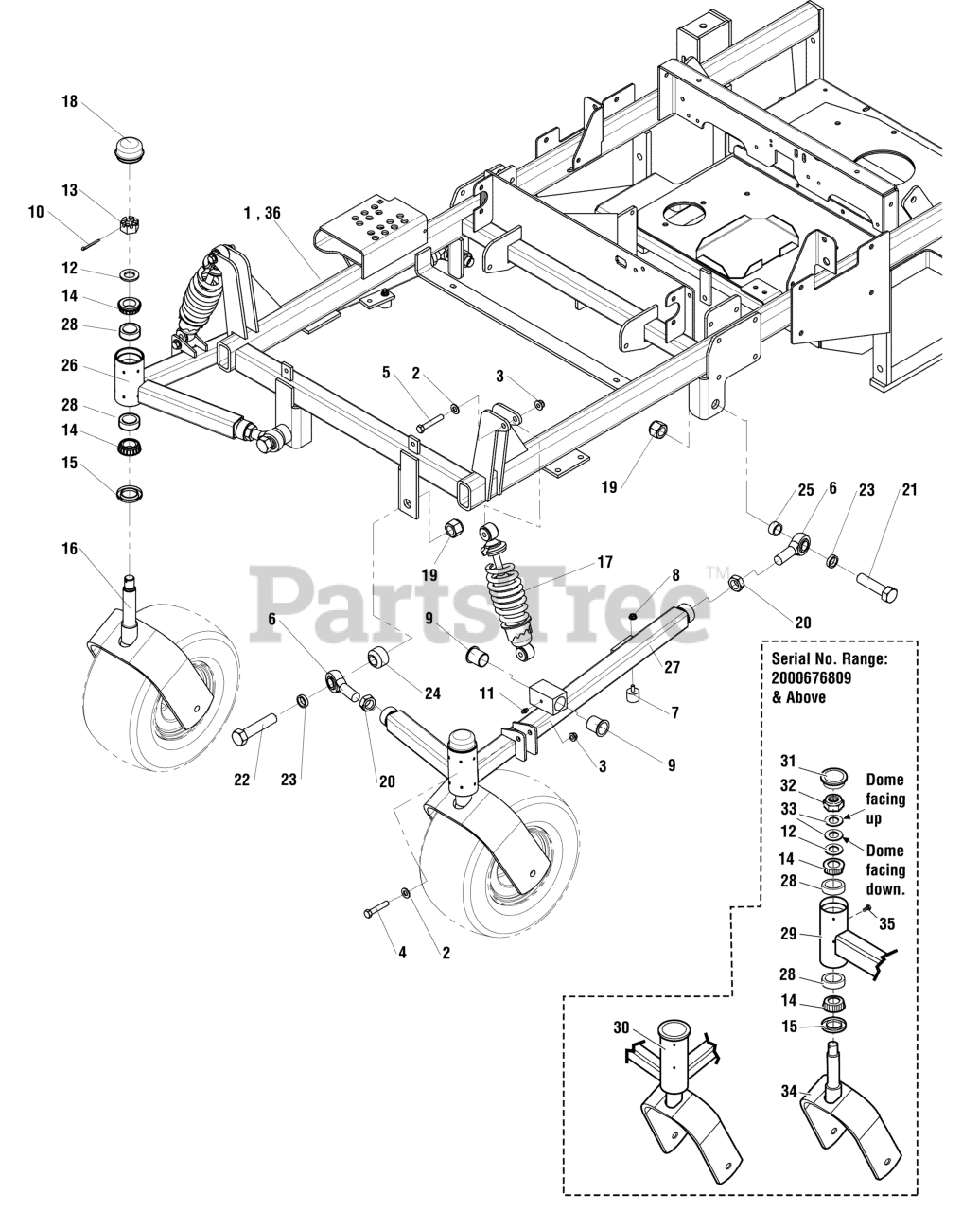

Main Frame & Front Suspension Group - 61" Deck Model Parts Diagram

  • Title

1

Ferris 5400486B

WELD, MAIN FRAME, IS3000Z

Note: (S/N: 2013221685 & Below)

$

$

Currently unavailable

2

Ferris 5025293

WASHER 3/8" GD. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 6

0

3

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 7

0

4

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

6

Ferris 5022039

BALL JOINT, 3/4-16 MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, only 1 left!

0

7

Ferris 5022673

BUMPER, RUBBER 1/4-20
(Superseded to 5022673SM)

$18.99

$

Usually ships in 2-12 days

0

8

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5023343

FLANGE BUSHING
(Superseded to 5023343SM)

$6.49

$

In Stock, only 3 left!

0

10

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5020095

GREASE FITTING, 1/4-28 STR
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025104

NUT, 3/4-16 HEX SLOTTED
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

14

Ferris 5020884

BEARING, TAPPERD ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, only 2 left!

0

15

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

Usually ships in 2-12 days

0

16

Ferris 5045769B

WELD, CASTER YOKE
(Superseded to 5600096)

$127.99

$

In Stock, only 1 left!

0

17

Ferris 5023436

COIL - OVER SHOCK ASSEMBLY
(Superseded to 5023436SM)

$210.99

$

In Stock, only 1 left!

0

18

Ferris 5021073

CAP, DUST
(Superseded to 5021073SM)

$7.49

$

In Stock, Qty 6

0

19

Ferris 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 1 left!

0

20

Ferris 5025093

NUT, HEX JAM, 3/4-16
(Superseded to 5025093SM)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5025265X24

BOLT, 3/4-16 X 3" GD 5
(Superseded to 5025265X24SM)

$13.99

$

Usually ships in 2-12 days

0

22

Ferris 5025265X28

3/4-16 X 3.5" HHCS YZP GR 5
(Superseded to 5025265X28SM)

$15.99

$

Usually ships in 2-12 days

0

23

Ferris 5047461

SPACER, .76 X 1.00 X .25
(Superseded to 5047461SM)

$4.99

$

Usually ships in 2-12 days

0

24

Ferris 5046093

SPACER, .75 X 1.50 X 1.00
(Superseded to 5046093SM)

$10.99

$

In Stock, only 1 left!

0

25

Ferris 5046092

SPACER, .76 X 1.00 X .50
(Superseded to 5046092SM)

$5.99

$

In Stock, only 1 left!

0

26

Ferris 5047742B

ASSM, A-ARM, RH

Note: (Includes Ref. No. 9 and 11)

$245.99

$

Usually ships in 2-12 days

0

27

Ferris 5047743

ASSM, A-ARM, LH

Note: (Includes Ref. No. 9 and 11)

$503.99

$

Usually ships in 2-12 days

0

28

Ferris 5020883

BEARING CUP

$8.99

$

Usually ships in 2-12 days

0

29

Ferris 5402229B

WELD, A-ARM - RH - RED

Note: (S/N: 2000676809 & Above)

$341.99

$

Usually ships in 2-12 days

0

30

Ferris 5402230B

WELD, A-ARM - LH - RED

Note: (S/N: 2000676809 & Above)

$341.99

$

Usually ships in 2-12 days

0

31

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

Note: (S/N: 2000676809 & Above)

$7.99

$

In Stock, only 3 left!

0

32

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

Note: (S/N: 2000676809 & Above)

$3.49

$

In Stock, only 2 left!

0

33

Ferris 5025449

BELLEVILLE WASHER, 1.500 X .755
(Superseded to 5025449SM)

Note: (S/N: 2000676809 & Above)

$4.99

$

Usually ships in 2-12 days

0

34

Ferris 5411934B

WELD, CASTER YOKE - RED
(Superseded to 5419196BFS)

Note: (S/N: 2000676809 & Above)

$198.99

$

Usually ships in 2-12 days

0

35

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

Note: (S/N: 2000676809 & Above)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5404428B

WELD, MAIN FRAME, IS3100Z

Note: (S/N: 2013221686 & Above)

$

$

Currently unavailable
