IS 3100Z (5901220) - Ferris IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton Decal Group - Safety & Operation - ANSI-EXP Parts Diagram

IS3100Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

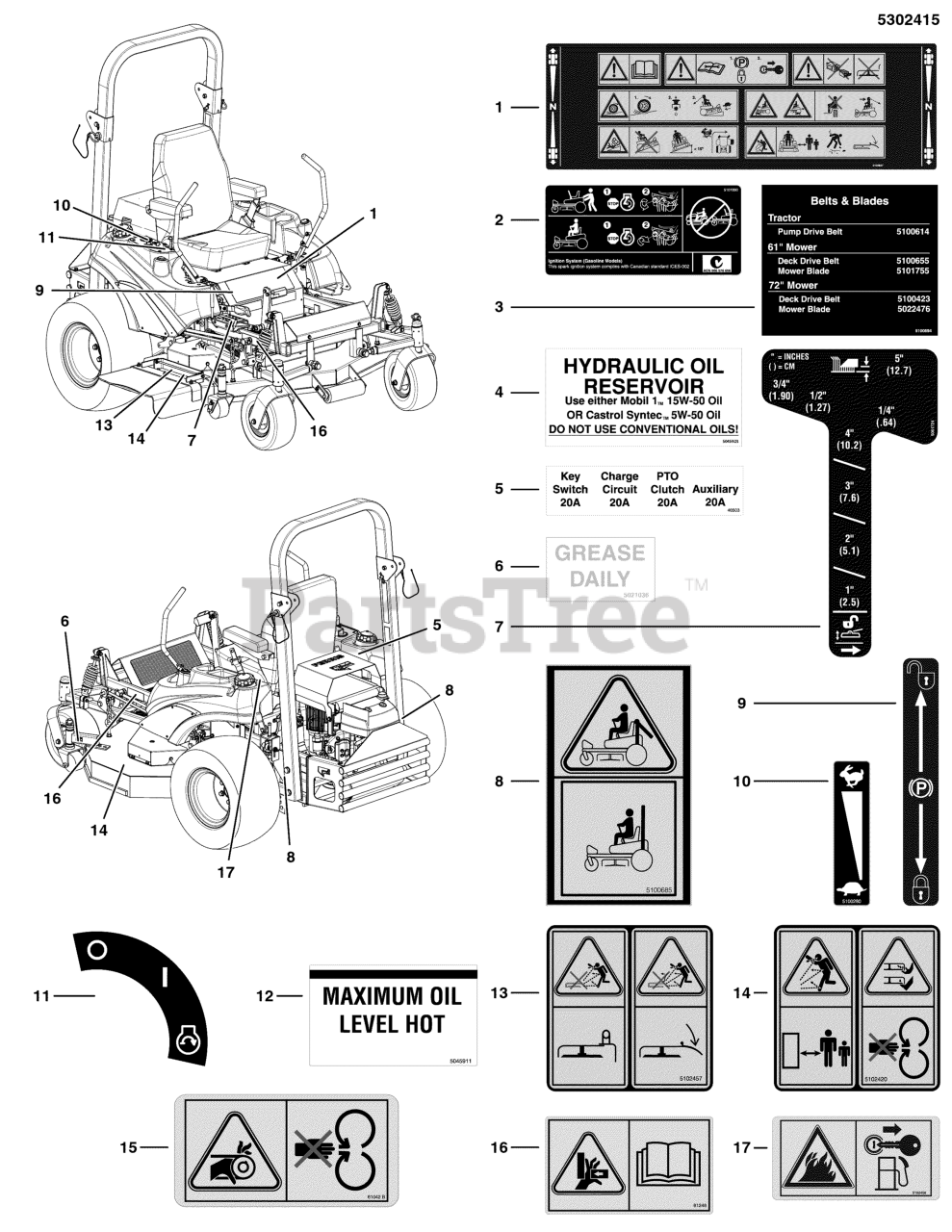

Decal Group - Safety & Operation - ANSI-EXP Parts Diagram

  • Title

1

Ferris 5102627

DECAL, MAIN SAFETY, ANSI CE
(Superseded to 5102627YP)

$26.99

$

Usually ships in 2-12 days

0

2

Ferris 5101990

DECAL, CZT HYRDO RELEASE
(Superseded to 5101990YP)

Note: (Located Under the Seat)

$6.99

$

Usually ships in 2-12 days

0

3

Ferris 5103141

USE 5103401-DECAL, BELT & BLADE, IS3100Z

Note: (Located Under the Seat)

$

$

Not available

4

Ferris 5045923

DECAL, OIL RESERVOIR

Note: (Located On Hydraulic Tank Mounting Bracket)

$

$

Currently unavailable

5

Ferris 5046503

DECAL, FUSE LOCATION
(Superseded to 5046503SM)

$6.49

$

Usually ships in 2-12 days

0

6

Ferris 5021036

DECAL, GREASE DAILY
(Superseded to 5021036SM)

Note: (Models with Swivel Casters Only)

$8.99

$

Usually ships in 2-12 days

0

7

Ferris 5061724

DECAL, HEIGHT CITATION
(Superseded to 5108114)

$15.99

$

In Stock, only 1 left!

0

8

Ferris 5100685

DECAL, WARNING, ROLL BAR, CE
(Superseded to 5100685YP)

$14.99

$

Usually ships in 2-12 days

0

9

Ferris 5102628

DECAL, PARKING BRAKE SYMBOLS
(Superseded to 5102628YP)

$12.99

$

In Stock, only 1 left!

0

10

Ferris 5100280

DECAL, THROTTLE CONTROL
(Superseded to 5100280SM)

$9.49

$

In Stock, only 1 left!

0

11

Ferris 5048970

DECAL, IGNITION SWITCH
(Superseded to 5048970SM)

$11.99

$

In Stock, only 1 left!

0

12

Ferris 5045911

DECAL, MAX OIL LEVEL
(Superseded to 5045911SM)

Note: (Located On Hydraulic Tank)

$7.99

$

Usually ships in 2-12 days

0

13

Ferris 5102457

DECAL, DANGER DISCHARGE ANSI EXPORT

$

$

Currently unavailable

14

Ferris 5102420

DECAL, DANGER, MOWER DECK, ANSI EXP

$

$

Currently unavailable

15

Ferris 5061042

DECAL, CE, DANGER
(Superseded to 5061042SM)

$13.99

$

Usually ships in 2-12 days

0

16

Ferris 5061246

DECAL, PINCH POINT, CE
(Superseded to 5061246YP)

$10.99

$

Usually ships in 2-12 days

0

17

Ferris 5102456

DECAL, FIRE ANSI EXPORT
(Superseded to 5102456YP)

$9.99

$

Usually ships in 2-12 days

0

18

Ferris 5100536

DECAL, SAFETY, CE ROPS
(Superseded to 5100536YP)

Note: (Located on ROPS)

$19.99

$

Usually ships in 2-12 days

0

19

Ferris 5100537

DECAL, SAFETY, CE ROPS, OBS
(Superseded to 5100537YP)

Note: (Located on ROPS)

$14.99

$

Usually ships in 2-12 days

0
