IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Parking Brake Group - Lower Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

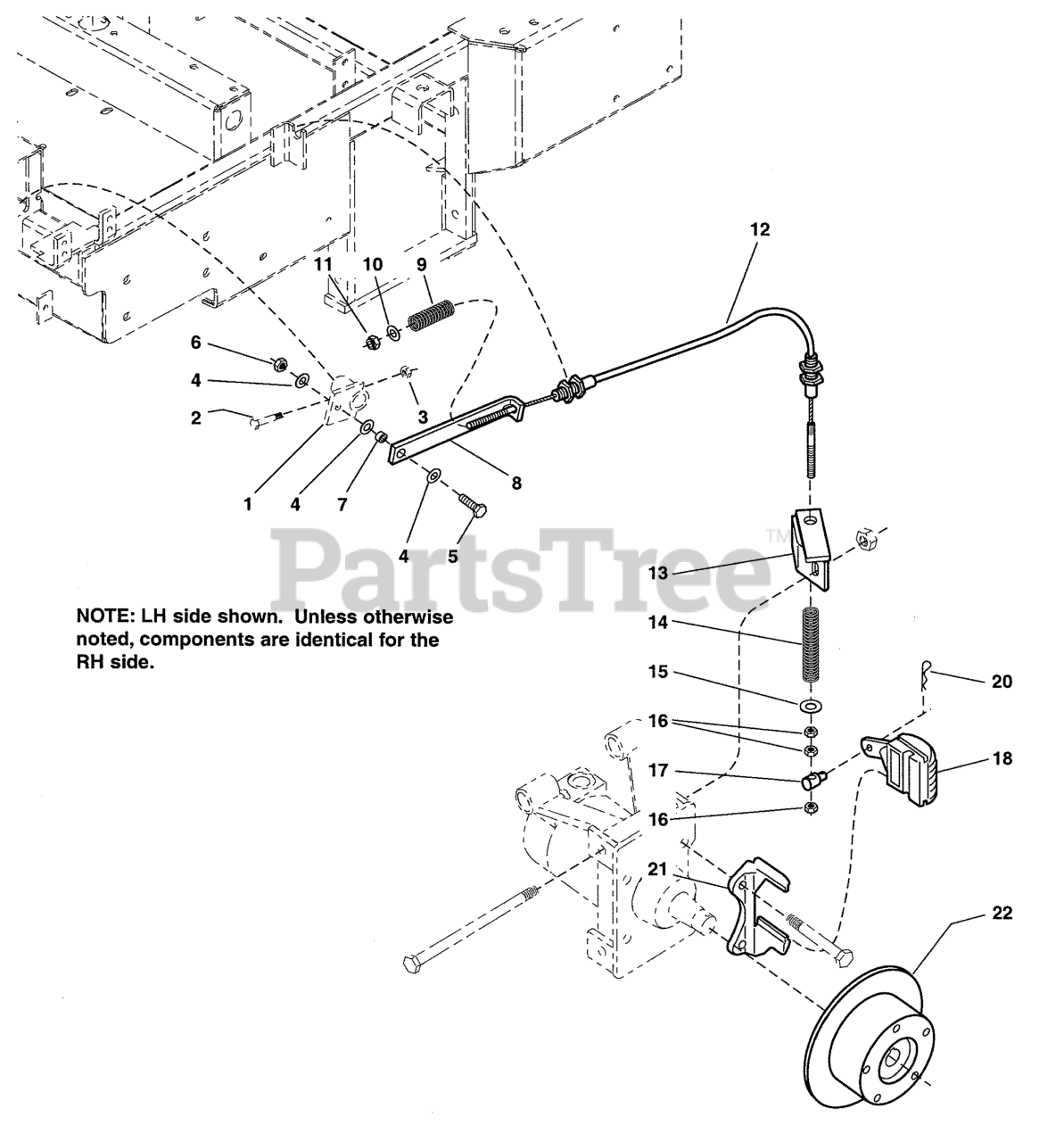

Parking Brake Group - Lower Parts Diagram

  • Title

1

BRAKE LINKAGE PIVOT

$

$

Not available

2

BOLT, 1/4-20 x 1-3/4

$

$

Not available

3

NUT, Hex, Nylon Lock, 1/4-20

$

$

Not available

4

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

6

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

7

Ferris 5041930

SPACER, Pivot
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

8

Ferris 5045777B

LINK, Brake Lock

$

$

Currently unavailable

9

Ferris 5022361

SPRING, Compression
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

12

Ferris 5022209

CABLE, Brake

$

$

Not available

13

Ferris 5045604B

BRACKET, Cable Mount-LH

$26.99

$

Usually ships in 2-12 days

0

14

Ferris 5021494

SPRING, Compression
(Superseded to 5021494SM)

$13.99

$

Usually ships in 2-12 days

0

15

Ferris 5025164

WASHER, Fender, 5/16
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5045947

ADJUSTER, Brake Linkage

$24.99

$

Usually ships in 2-12 days

0

18

Ferris 5022342

BRAKE CALIPER, LH

$208.99

$

Usually ships in 2-12 days

0

19

Ferris 5022341

BRAKE CALIPER, RH

Note: (not shown)

$208.99

$

Usually ships in 2-12 days

0

20

Ferris 5025211

HAIRPIN CLIP
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

21

Ferris 5022340

MOUNT, Brake Caliper

$159.99

$

Usually ships in 2-12 days

0

22

Ferris 5022339

HUB, 8" Brake Disc
(Superseded to 5022339SM)

$311.99

$

Usually ships in 2-12 days

0

23

Ferris 5045605

BRACKET, Cable Mount-RH

Note: (not shown)

$

$

Currently unavailable
