IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Upper Brake & Control Shaft Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

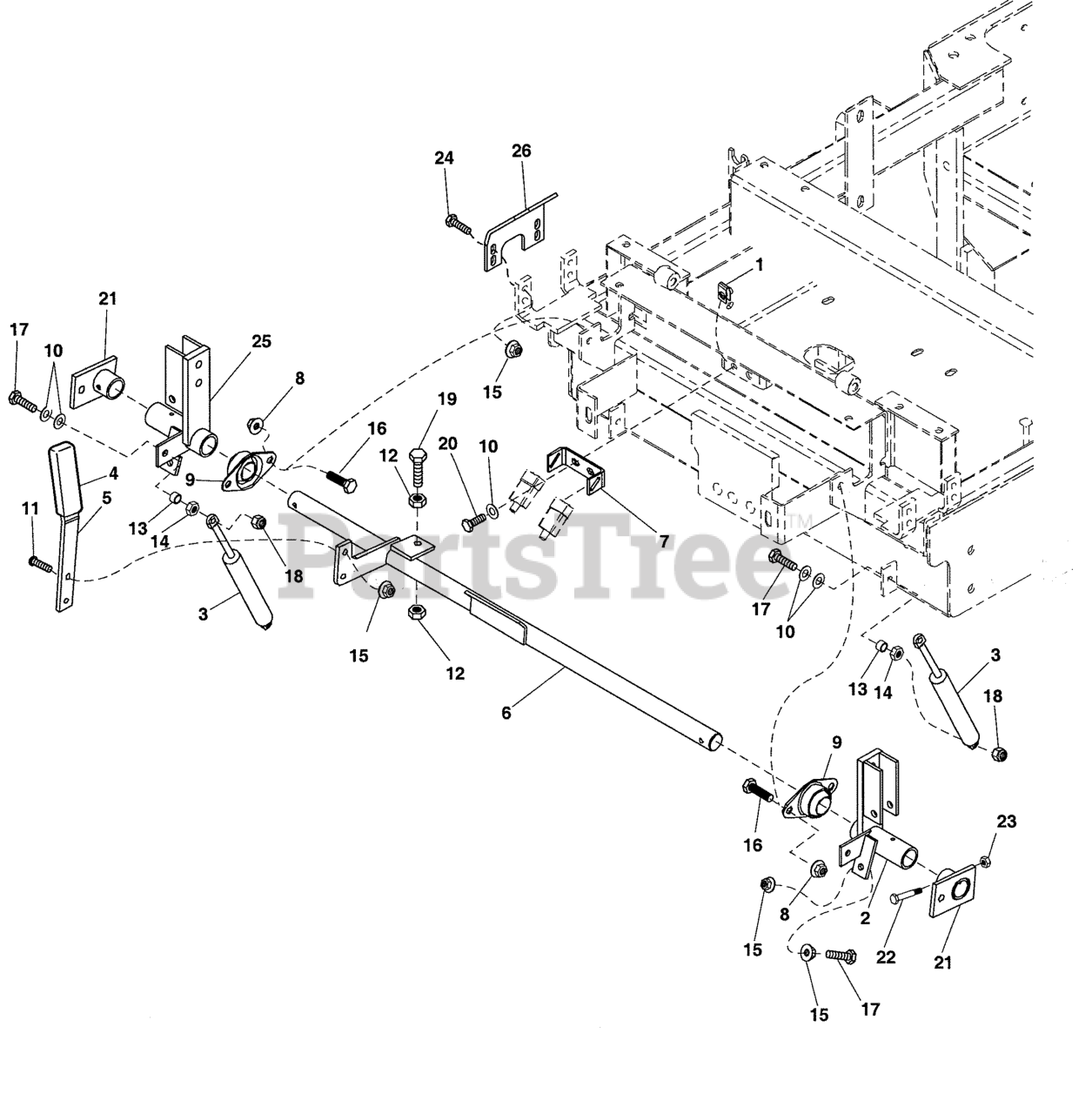

Upper Brake & Control Shaft Group Parts Diagram

  • Title

1

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

2

Ferris 5045688B

CONTROL ARM MOUNT, Left

$

$

Currently unavailable

3

Ferris 5022360

DAMPENER

$216.99

$

Usually ships in 2-12 days

0

4

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, only 1 left!

0

5

Ferris 5045619B

BRAKE LEVER

$20.99

$

Usually ships in 2-12 days

0

6

Ferris 5045788B

BRAKE SHAFT

$125.99

$

Usually ships in 2-12 days

0

7

Ferris 5046067B

BRAKE SWITCH BRACKET

$

$

Currently unavailable

8

Ferris 5025128

NUT, Hex, Serrated Flange 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

9

Ferris 5022379

BEARING, Triangle

$

$

Currently unavailable

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025267X6

CAPSCREW, Button Socket Hd, 5/16-18 x 3/4

$

$

Currently unavailable

12

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5041930

SPACER
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

14

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

In Stock, only 1 left!

0

15

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

16

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025057

NUT, HeX, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 6

0

20

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

21

Ferris 5045781B

BRAKE LINKAGE

$17.99

$

Usually ships in 2-12 days

0

22

Ferris 5025010X14

BOLT, 1/4-20 x 1-3/4
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

23

Ferris 5025287

NUT, Hex, Side Locking, 1/4-20
(Superseded to 5025287SM)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5046081B

CONTROL ARM MOUNT, Right

$

$

Currently unavailable

26

Ferris 5046074B

NEUTRAL PLATE, Right

$

$

Currently unavailable

27

Ferris 5046075B

NEUTRAL PLATE, Left

Note: (not shown)

$

$

Currently unavailable
