IS 5000Z (5901070) - Ferris IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1225 & Below) Engine Accessories Group - Diesel (Later Models) Parts Diagram

IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel

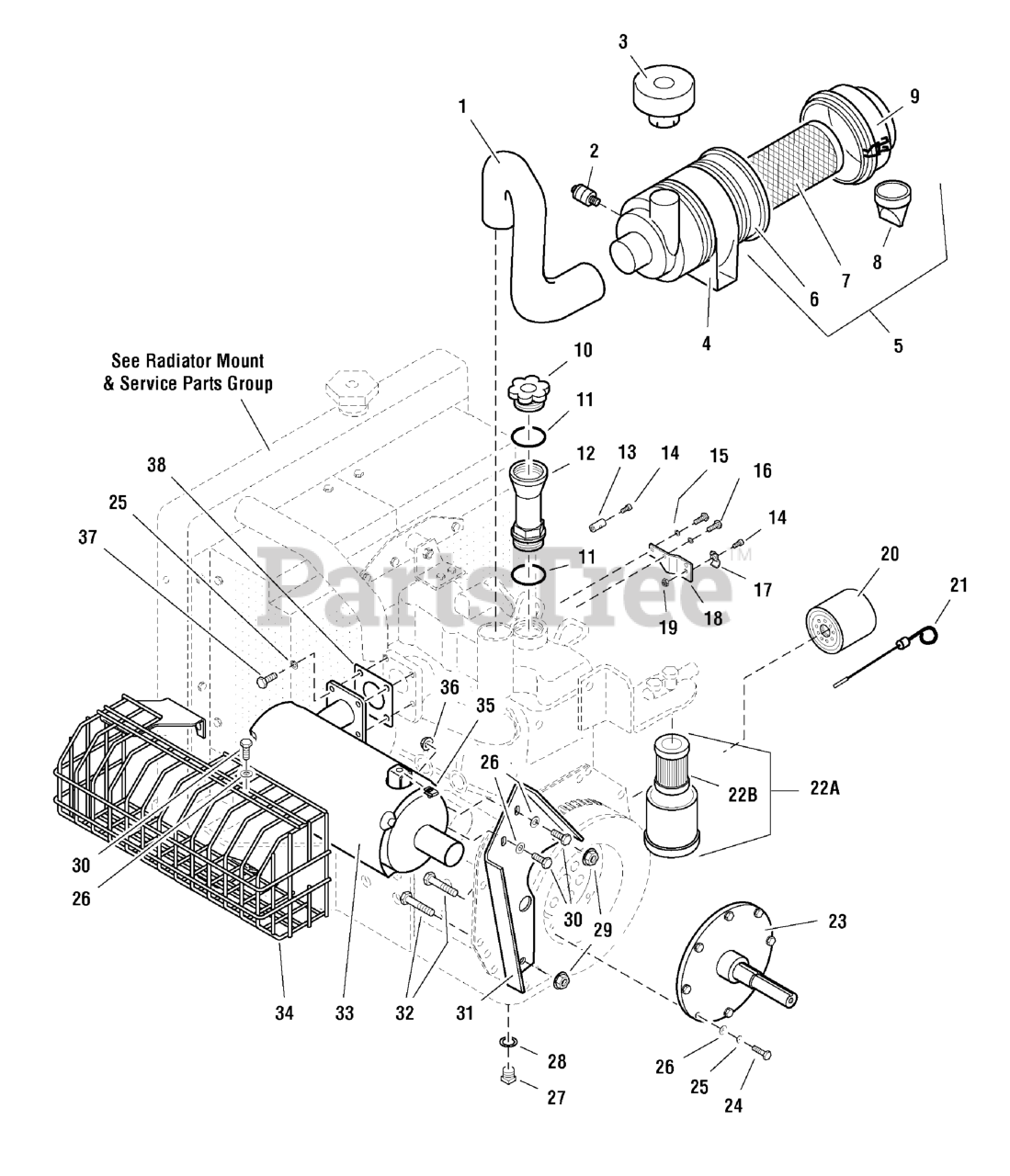

Engine Accessories Group - Diesel (Later Models) Parts Diagram

  • Title

1

Ferris 5022883X33

AIR INLET HOSE

$107.99

$

Usually ships in 2-12 days

0

1

Ferris 5022883X54

HOSE CLAMP
(Superseded to 5022883X54FS)

$4.99

$

Usually ships in 2-12 days

0

2

Ferris 5022883X45

AIR CLEANER INDICATOR

$137.99

$

Usually ships in 2-12 days

0

3

Ferris 5022591

PRE-CLEANER

$154.99

$

In Stock, only 2 left!

0

4

Ferris 5022883X44

AIR CLEANER BRACKET

$115.99

$

Usually ships in 2-12 days

0

5

Ferris 5022883X29

AIR CLEANER ASSEMBLY, Complete

Note: (Includes Ref No. 6 - 9)

$

$

Currently unavailable

6

Ferris 5022883X46

AIR CLEANER HOUSING ASSEMBLY

$459.99

$

Usually ships in 2-12 days

0

7

Ferris 5022883X31

AIR CLEANER ELEMENT

$115.99

$

Usually ships in 2-12 days

0

8

Ferris 5022883X32

AIR CLEANER DUST VALVE
(Superseded to 842473)

$17.99

$

Usually ships in 2-12 days

0

9

Ferris 5022883X30

AIR CLEANER COVER
(Superseded to 842474)

$78.99

$

Usually ships in 2-12 days

0

10

Ferris 5022883X7

OIL FILL CAP

$18.99

$

Usually ships in 2-12 days

0

11

Ferris 5022883X8

OIL FILL O-RING SEAL

$23.99

$

Usually ships in 2-12 days

0

12

Ferris 5022883X6

OIL FILL EXTENSION

$50.99

$

Usually ships in 2-12 days

0

13

Ferris 5047650

BARREL CLAMP

$8.99

$

Usually ships in 2-12 days

0

14

Ferris 5025179X6

SCREW, #10-24 x 3/4
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5025248

BOLT, M6 x 10MM

$

$

Currently unavailable

17

Ferris 5022901

CLAMP
(Superseded to 5022901FS)

$2.49

$

Usually ships in 2-12 days

0

18

Ferris 5047392

THROTTLE BRACKET

$

$

Currently unavailable

19

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5022883X11

OIL FILTER

$40.99

$

Usually ships in 2-12 days

0

21

Ferris 5022883X20

DIPSTICK

$70.99

$

Usually ships in 2-12 days

0

22A

Ferris 5022883X19B

FUEL FILTER ASSEMBLY, Complete

Note: (Includes 22883-19C)

$263.99

$

Usually ships in 2-12 days

0

22B

Ferris 5022883X19C

FILTER ELEMENT

$28.99

$

Usually ships in 2-12 days

0

23

USE 5100040, 5100041, 5025499 & 5101524

$

$

Not available

24

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

25

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

27

Ferris 5022883X21

OIL PAN PLUG

$26.99

$

Usually ships in 2-12 days

0

28

Ferris 5022883X22

WASHER, Oil Pan Plug

$21.99

$

Usually ships in 2-12 days

0

29

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5048600B

MUFFLER SUPPORT

$

$

Currently unavailable

32

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 1 left!

0

33

Ferris 5023125

MUFFLER

$

$

Not available

34

Ferris 5404073A

WELD, MUFFLER GUARD - BLK

Note: (Export models only)

$177.99

$

Usually ships in 2-12 days

0

35

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

Note: (Export models only)

$5.99

$

In Stock, Qty 10

0

36

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

37

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GR 8.8
(Superseded to 5025237X25YP)

Note: (Not an illustrated part)

$3.99

$

Usually ships in 2-12 days

0

38

Ferris 5022883X36

GASKET, EXHAUST MANIFOLD - NET

Note: (Not an illustrated part)

$20.99

$

Usually ships in 2-12 days

0

39

Ferris 5022883X9

FUEL SOLENOID

Note: (Not an illustrated part)

$717.99

$

Usually ships in 2-12 days

0

40

Ferris 5022883X10

WASHER, Fuel Solenoid

Note: (Not an illustrated part)

$22.99

$

Usually ships in 2-12 days

0

41

Ferris 5022883X12

WATER PUMP

Note: (Not an illustrated part)

$695.99

$

Usually ships in 2-12 days

0

42

Ferris 5022883X14

WATER HOSE-UPPER

Note: (Not an illustrated part)

$129.99

$

Usually ships in 2-12 days

0

43

Ferris 5022883X15

WATER HOSE-LOWER

Note: (Not an illustrated part)

$516.99

$

Usually ships in 2-12 days

0

44

Ferris 5022883X16

GASKET, Water Pump

Note: (Not an illustrated part)

$15.99

$

Usually ships in 2-12 days

0

45

Ferris 5022883X17

THERMOSTAT

Note: (Not an illustrated part)

$100.99

$

Usually ships in 2-12 days

0

46

Ferris 5022883X18

GASKET, Thermostat

Note: (Not an illustrated part)

$12.99

$

Usually ships in 2-12 days

0

47

Ferris 5022883X23

STARTER MOTOR

Note: (Not an illustrated part)

$2170.99

$

Usually ships in 2-12 days

0

48

Ferris 5022883X24

ALTERNATOR

Note: (Not an illustrated part)

$1863.99

$

Usually ships in 2-12 days

0

49

Ferris 5022883X25

BELT

Note: (Not an illustrated part)

$82.99

$

Usually ships in 2-12 days

0

50

Ferris 5022883X26

FUEL PUMP,# 295-4070 - NET

Note: (Not an illustrated part)

$158.99

$

Usually ships in 2-12 days

0

51

Ferris 5022883X27

GASKET, Fuel Pump

Note: (Not an illustrated part)

$18.99

$

Usually ships in 2-12 days

0

52

Ferris 5022883X28

GLOW PLUG

Note: (Not an illustrated part)

$144.99

$

Usually ships in 2-12 days

0

53

Ferris 5022883X38

RADIATOR

Note: (Not an illustrated part)

$

$

Currently unavailable

54

Ferris 5022883X39

SWITCH, Oil Pressure
(Superseded to 5022883X39B)

Note: (Not an illustrated part)

$88.99

$

Usually ships in 2-12 days

0

55

Ferris 5022883X40

SWITCH, Water Temperature

Note: (Not an illustrated part)

$245.99

$

Usually ships in 2-12 days

0

56

Ferris 5022883X41

STARTER SOLENOID

Note: (Not an illustrated part)

$179.99

$

Usually ships in 2-12 days

0

57

Ferris 5022883X42

SEAL, REAR MAIN - NET

Note: (Not an illustrated part)

$211.99

$

Usually ships in 2-12 days

0

58

Ferris 5022883X43

SEAL, Front Main

Note: (Not an illustrated part)

$35.99

$

Usually ships in 2-12 days

0

59

Ferris 5022883X47

INJECTOR ASSEMBLY

Note: (Not an illustrated part)

$572.99

$

Usually ships in 2-12 days

0

60

Ferris 5022883X48

WASHER, 4-HOLE

Note: (Not an illustrated part)

$18.99

$

Usually ships in 2-12 days

0

61

Ferris 5022883X49

WASHER, SEALING

Note: (Not an illustrated part)

$13.99

$

Usually ships in 2-12 days

0

62

Ferris 5022883X50

WASHER, CRUSH

Note: (Not an illustrated part)

$8.49

$

Usually ships in 2-12 days

0
