IS 5000Z (5901070) - Ferris IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1225 & Below) Gearbox Mount Group Parts Diagram

IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel

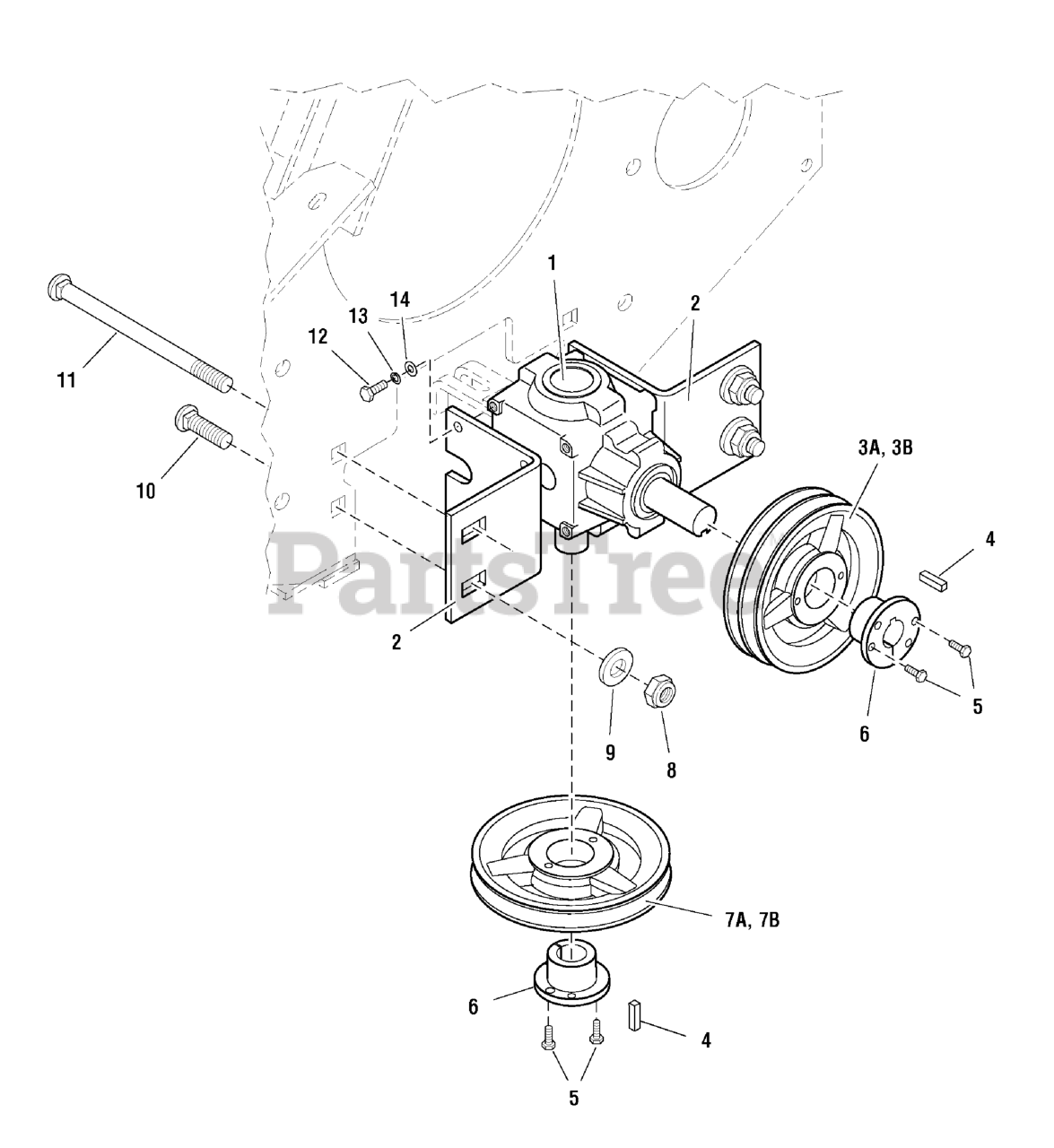

Gearbox Mount Group Parts Diagram

  • Title

1

Ferris 5022378

GEARBOX
(Superseded to 5022378FS)

$984.99

$

Usually ships in 2-12 days

0

2

Ferris 5046349B

GEARBOX MOUNT BRACKET

$21.99

$

Usually ships in 2-12 days

0

3A

Ferris 5022908

PULLEY, Gearbox Input
(Superseded to 5022908FS)

Note: (Diesel model)

$186.99

$

Usually ships in 2-12 days

0

3B

Ferris 5022384

PULLEY, Gearbox Input

Note: (Gas model)

$180.99

$

Usually ships in 2-12 days

0

4

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

6

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 1 left!

0

7A

Ferris 5022794

PULLEY, Spindle
(Superseded to 5022794FS)

Note: (Diesel model)

$97.99

$

Usually ships in 2-12 days

0

7B

Ferris 5020815

PULLEY, Spindle
(Superseded to 5020815SM)

Note: (Gas model)

$111.99

$

Usually ships in 2-12 days

0

8

Ferris 5025038

NUT, 1/2-13 Hex
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

9

Ferris 5044913

WASHER, Frame Retaining
(Superseded to 5044913SM)

$6.99

$

Usually ships in 2-12 days

0

10

Ferris 5025324X16

CARRIAGE BOLT, 1/2-13 x 2

$2.49

$

Usually ships in 2-12 days

0

11

Ferris 5025334

CARRIAGE BOLT, 1/2-13 x 7

$10.99

$

Usually ships in 2-12 days

0

12

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
