IS 5000Z (5901070) - Ferris IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1225 & Below) Hood, Bumper & Shield Group - Diesel (Early Models) Parts Diagram

IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel

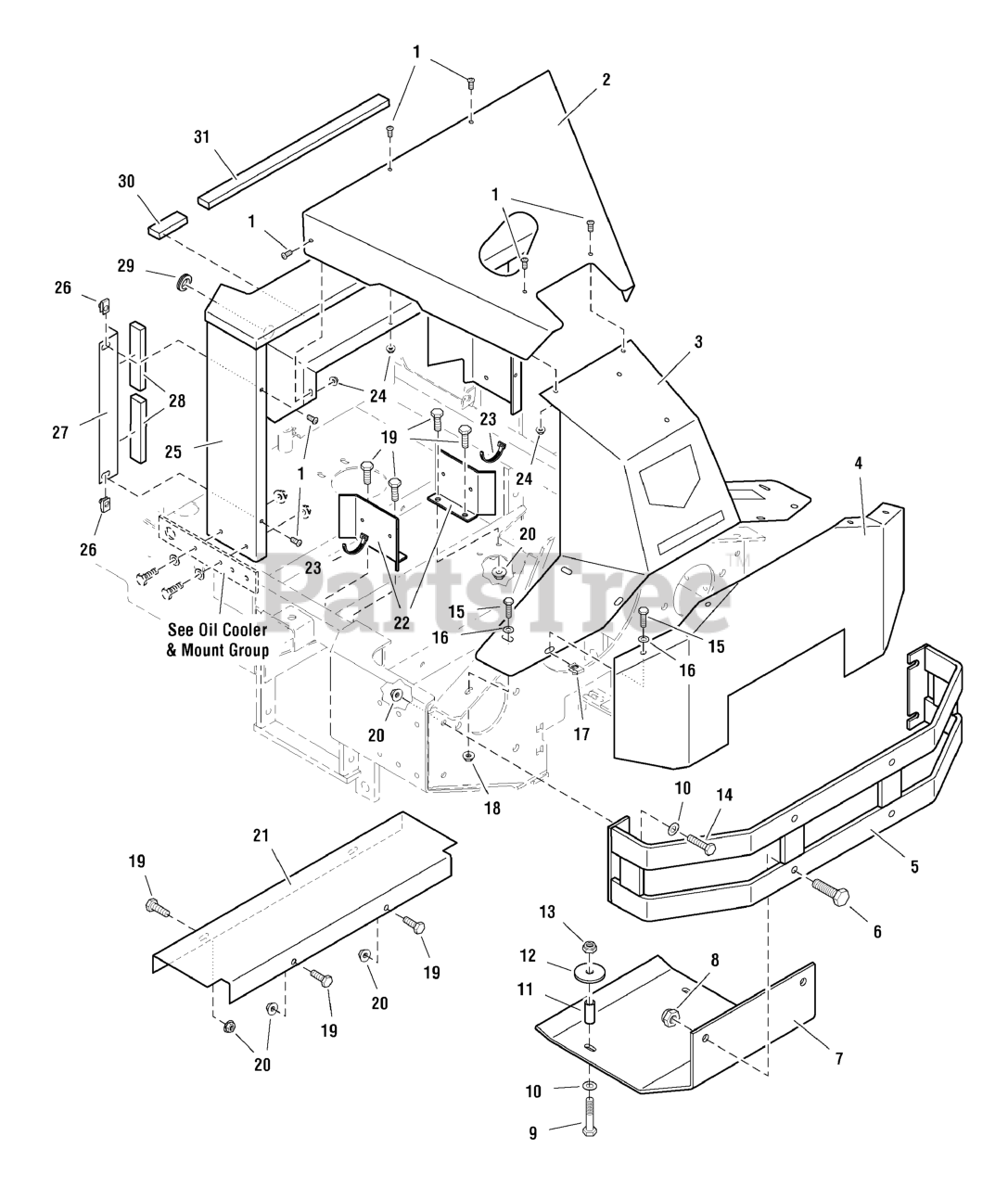

Hood, Bumper & Shield Group - Diesel (Early Models) Parts Diagram

  • Title

1

Ferris 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.49

$

In Stock, only 3 left!

0

2

Ferris 5047555B

HOOD

$501.99

$

Usually ships in 2-12 days

0

3

Ferris 5047552B

REAR HOOD SUPPORT

$330.99

$

Usually ships in 2-12 days

0

4

Ferris 5045784B

REAR SHIELD

$

$

Not available

5

Ferris 5047578B

BUMPER

$421.99

$

Usually ships in 2-12 days

0

6

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

7

Ferris 5047581B

SKID SHIELD

$110.99

$

Usually ships in 2-12 days

0

8

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

9

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5044992

SPACER, .38 x .50 x 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

12

Ferris 5025305

WASHER, 3/8 x 1-3/4
(Superseded to 5025305SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 1 left!

0

14

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

15

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

18

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

19

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

20

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5047545B

DEBRIS SHIELD

$83.99

$

Usually ships in 2-12 days

0

22

Ferris 5047587B

SUPPORT PLATE

$

$

Currently unavailable

23

Ferris 5021029

TIE WRAP, 11"
(Superseded to 5021029SM)

$

$

Not available

24

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5047436B

RADIATOR SHROUD

$

$

Currently unavailable

26

Ferris 5022665

BODY CLIP, 1/4-20
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5047749B

RADIATOR SEAL ANGLE

$

$

Currently unavailable

28

Ferris 5050913X7

FOAM SEAL, 7"

$

$

Currently unavailable

29

Ferris 5021077

GROMMET, 1/2"

$

$

Currently unavailable

30

Ferris 5050913X2

FOAM SEAL, 2"

$

$

Currently unavailable

31

Ferris 5050913X16

FOAM SEAL, 16"

$

$

Currently unavailable
