IS 5000Z (5901071) - Ferris IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1226 & Above) Rear Suspension Group Parts Diagram

IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel

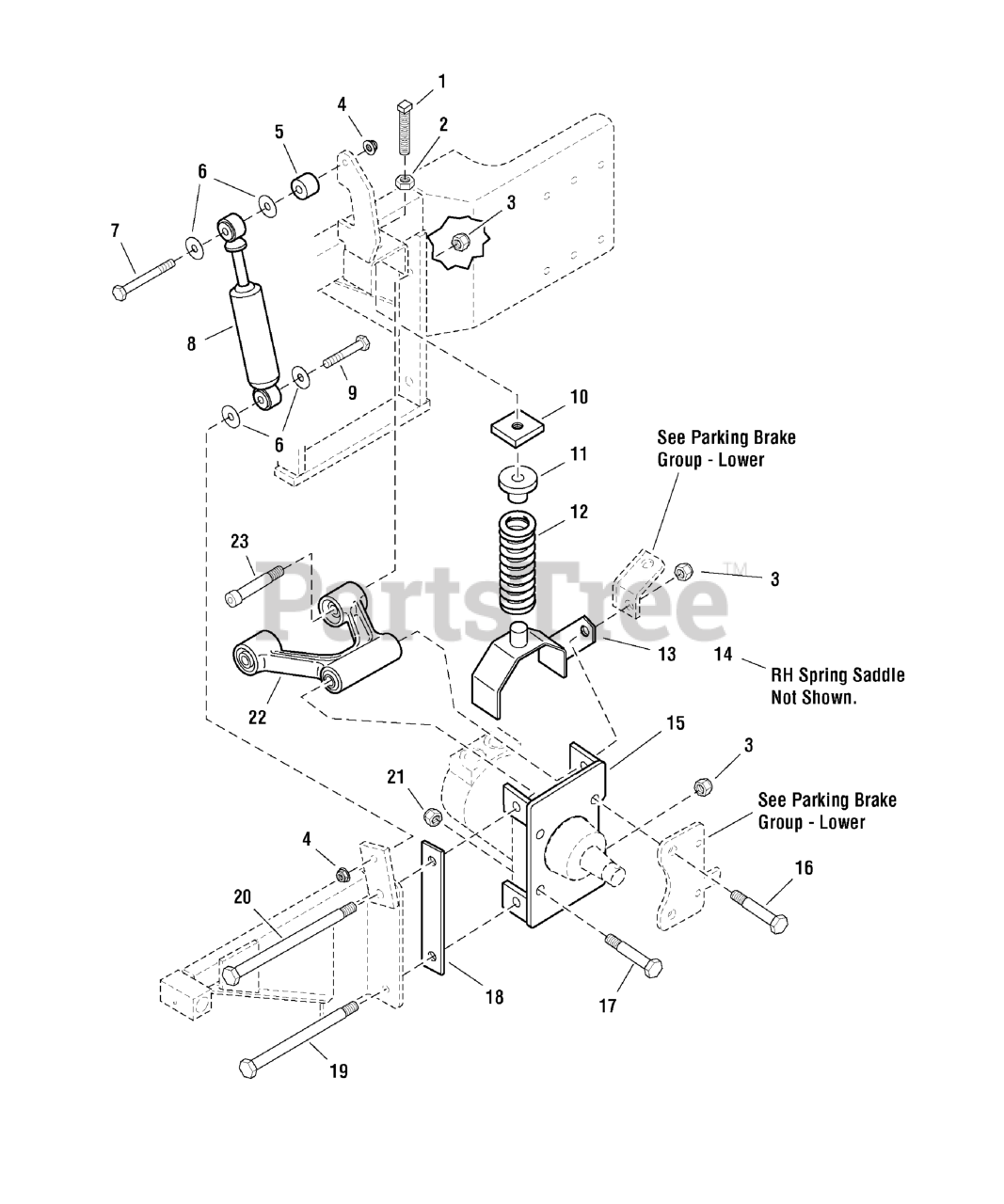

Rear Suspension Group Parts Diagram

  • Title

1

Ferris 5025298

SET SCREW, Square Head, 1/2-13 x 3

$

$

Currently unavailable

2

Ferris 5025301

NUT, 1/2-13 Hex Jam
(Superseded to 5025301SM)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

4

Ferris 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5043815

SPACER, .39 x 1.00 x .75
(Superseded to 5043815YP)

$10.99

$

Usually ships in 2-12 days

0

6

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

7

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5600269

KIT, SHOCK W/OUT COIL

$195.99

$

Usually ships in 2-12 days

0

9

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 2 left!

0

10

Ferris 5045904

SPRING COMPRESSION PLATE

$14.99

$

Usually ships in 2-12 days

0

11

Ferris 5045898

SPRING RETAINER

$

$

Currently unavailable

12

Ferris 5061181

SPRING, Compression

$80.99

$

Usually ships in 2-12 days

0

13

Ferris 5045601B

SPRING SADDLE-LH

$42.99

$

Usually ships in 2-12 days

0

14

Ferris 5045602B

SPRING SADDLE-RH

Note: (Not Shown)

$42.99

$

Usually ships in 2-12 days

0

15

Ferris 5045588B

WHEEL MOTOR MOUNT

$

$

Currently unavailable

16

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

17

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

18

Ferris 5046059B

SPACER PLATE

$15.99

$

Usually ships in 2-12 days

0

19

Ferris 5025017X52

BOLT, 1/2-13 x 6-1/2
(Superseded to 5025017X52SM)

$10.99

$

In Stock, only 2 left!

0

20

Ferris 5025488X60

BOLT, 1/2-13 X 7-1/2 GD8, CZ
(Superseded to 5025488X60FS)

$13.99

$

Usually ships in 2-12 days

0

21

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

22

Ferris 5101617

ASSM, A-ARM WITH BEARINGS
(Superseded to 5101617FS)

$373.99

$

Usually ships in 2-12 days

0

23

Ferris 5025294

BOLT, Allen Head, 1/2-13 x 3

$6.49

$

Usually ships in 2-12 days

0
