IS 5000Z (5901074) - Ferris IS5000Z Series 61" Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1225 & Below) Motion Control Group - Upper Parts Diagram

IS5000Z Series 61" Zero-Turn Mower, 31hp Caterpillar Diesel

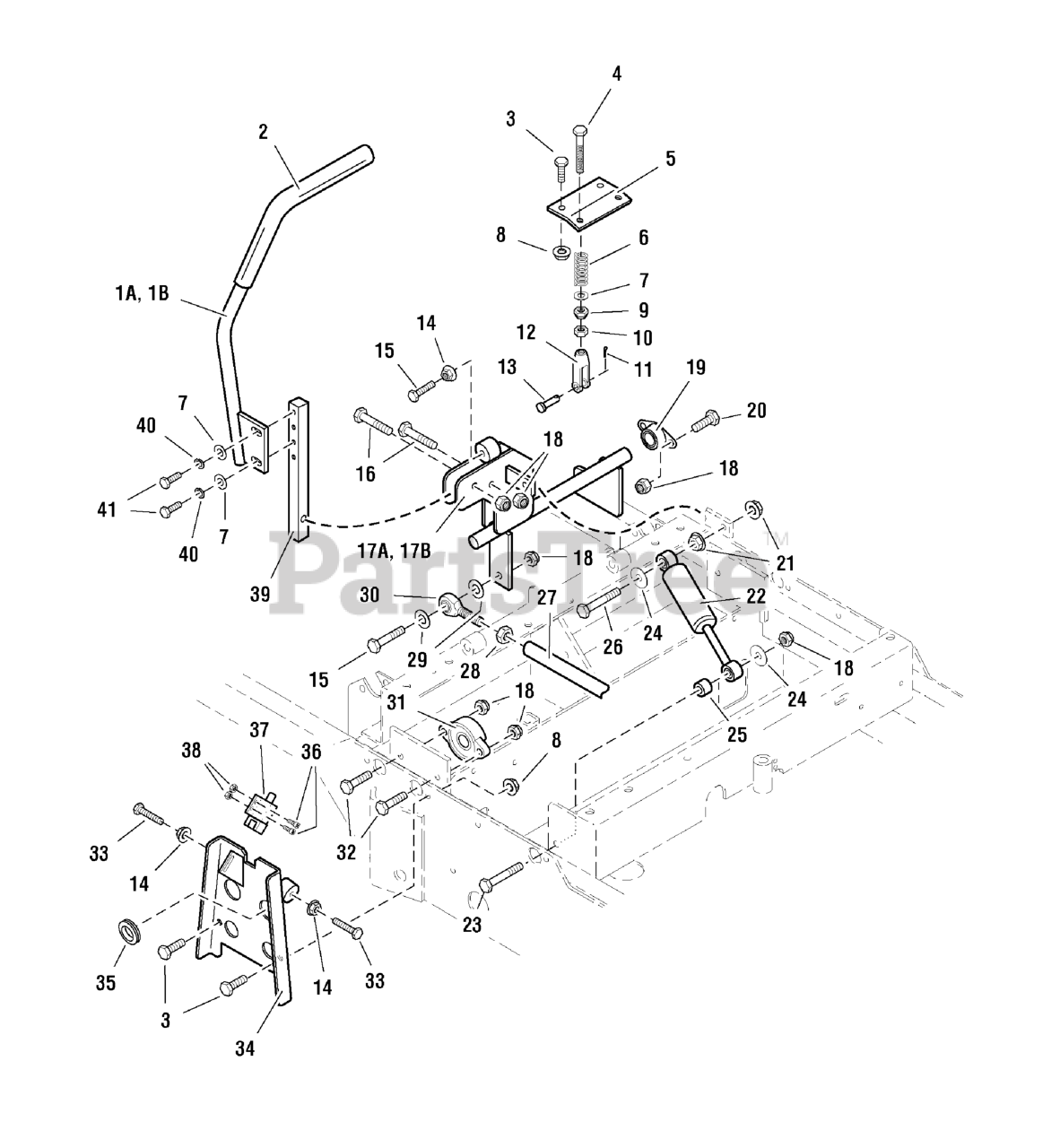

Motion Control Group - Upper Parts Diagram

  • Title

1A

Ferris 5047410B

CONTROL HANDLE - LH

$

$

Currently unavailable

1B

Ferris 5047411B

CONTROL HANDLE - RH
(Superseded to 5400912B)

Note: (Not Shown)

$35.99

$

Usually ships in 2-12 days

0

2

Ferris 5022068

GRIP, Foam
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

3

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

4

Ferris 5047137

REVERSE RETURN BOLT

$

$

Currently unavailable

5

Ferris 5047401B

NEUTRAL RETURN PLATE

$

$

Currently unavailable

6

Ferris 5022645

SPRING, Compression
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

10

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025211

HAIRPIN CLIP
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

13

Ferris 5025213X8

CLEVIS PIN, 5/16 x 1
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

14

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

15

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

16

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 1 left!

0

17A

Ferris 5047375B

MOTION CONTROL SHAFT - LH

$111.99

$

Usually ships in 2-12 days

0

17B

Ferris 5047374B

MOTION CONTROL SHAFT - RH

Note: (Not Shown)

$

$

Currently unavailable

18

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 4 left!

0

19

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

20

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5600269

KIT, SHOCK W/OUT COIL

$195.99

$

Usually ships in 2-12 days

0

23

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

25

Ferris 5047408

SPACER, .39 X .75 X .50, CZ

$

$

Currently unavailable

26

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

27

Ferris 5046393B

CONTROL ROD

$72.99

$

Usually ships in 2-12 days

0

28

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 5021124

BALL JOINT, 3/8-24 Male
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

31

Ferris 5021499

BEARING, Flange
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

32

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

33

Ferris 5025055X16

BOLT, 5/16-18 x 2 TFL
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

34

Ferris 5047390B

NEUTRAL LOCK PLATE

$111.99

$

Usually ships in 2-12 days

0

35

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

36

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

37

SWITCH (see electrical group)

$

$

Not available

38

Ferris 5025029

NUT, #10-24 Hex
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

39

Ferris 5047004A

MOUNT, CONTROL ARM - BLK

Note: (9.0" Total Length, 4 Adjustment Holes)

$

$

Currently unavailable

40

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 1 left!

0

41

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0
