IS 500Z (5900958) - Ferris IS500Z Series 61" Zero-Turn Mower, 27hp Briggs & Stratton Rear Suspension Group Parts Diagram

IS500Z Series 61" Zero-Turn Mower, 27hp Briggs & Stratton

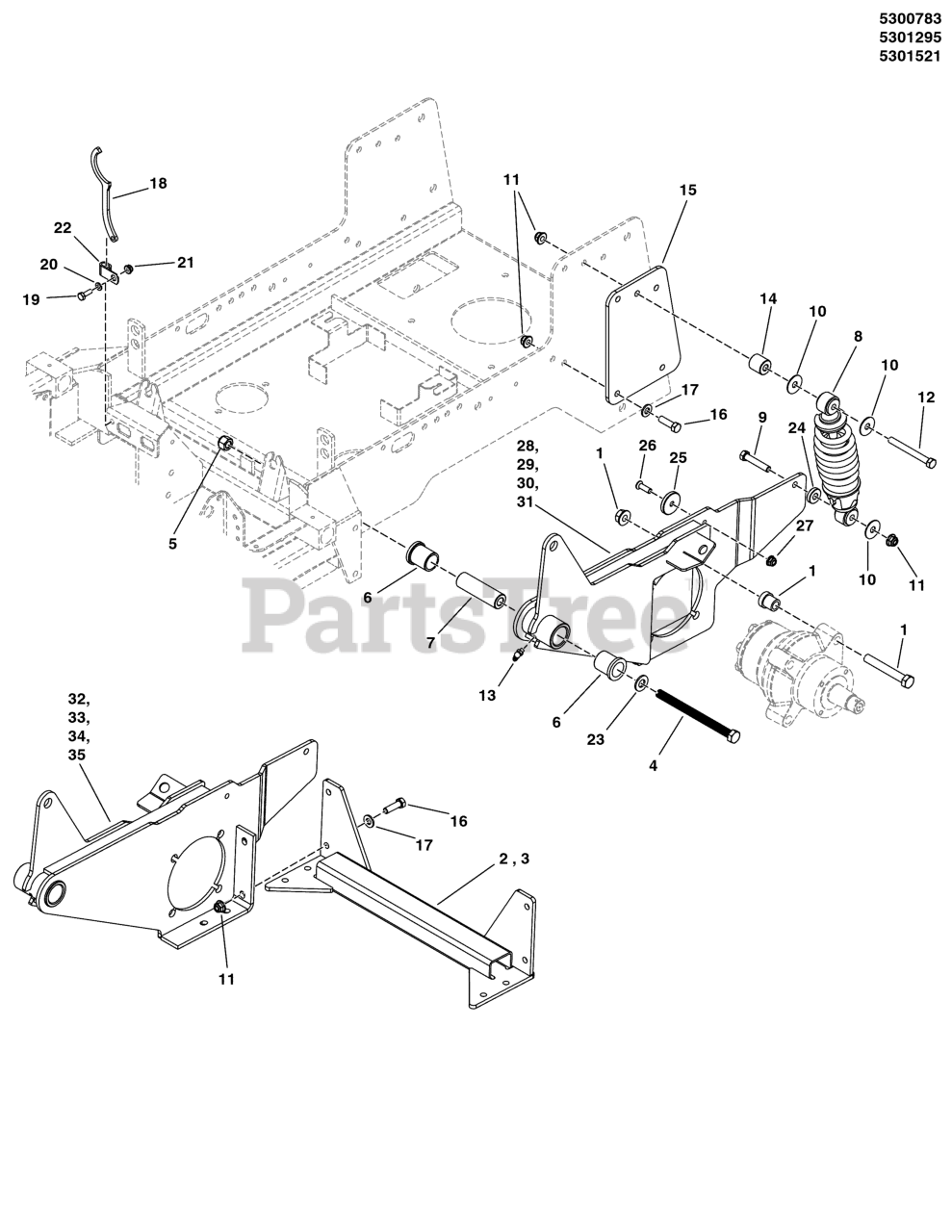

Rear Suspension Group Parts Diagram

  • Title

1

Refer to Hydraulic Components Service Group

$

$

Not available

2

Ferris 5600256

KIT, TIE BAR
(Superseded to 5600256YP)

Note: (44" & 52" Models)

$207.99

$

Usually ships in 2-12 days

0

3

Ferris 5404478A

WELD, TIE BAR - BLK

Note: (61" Models)

$160.99

$

Usually ships in 2-12 days

0

4

Ferris 5025488X52

BOLT, 1/2-13 X 6-1/2" GD8 YZ
(Superseded to 5025488X52YP)

$8.49

$

In Stock, only 1 left!

0

5

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

6

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

7

Ferris 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

8

Ferris 5023436

SHOCK ABSORBER
(Superseded to 5023436SM)

$210.99

$

In Stock, only 1 left!

0

9

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 6

0

10

Ferris 5025165

WASHER, 3/8" FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

11

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0

12

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 2 left!

0

13

Ferris 5020020

GREASE FITTING, 45 DEGREE
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5100896

SPACER, .390 X 1.00 X 1.00 - YZ
(Superseded to 5100896SM)

$8.49

$

Usually ships in 2-12 days

0

15

Ferris 5402456B

PLATE, FRAME SUPPORT - IS500 - RED

$45.99

$

Usually ships in 2-12 days

0

16

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

17

Ferris 5025293

WASHER, 3/8" GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

18

Ferris 5022853

WRENCH, SPANNER, CZ
(Superseded to 5022853SM)

$15.99

$

Usually ships in 2-12 days

0

19

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

20

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5025430

CLAMP, 5/16", DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

24

Ferris 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, only 4 left!

0

25

Ferris 5102701

SPACER, .34 X 1.54 X .25 UHMW
(Superseded to 5102701YP)

Note: (44" & 52" Models)

$3.99

$

In Stock, only 1 left!

0

26

Ferris 5025594

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ
(Superseded to 5025594YP)

Note: (44" & 52" Models)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (44" & 52" Models)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5402523B

WELD, MOTOR MOUNT, LH

Note: (44" Models)

$421.99

$

Usually ships in 2-12 days

0

29

Ferris 5403827B

WELD, MOTOR MOUNT, LH

Note: (52" Models)

$

$

Currently unavailable

30

Ferris 5404229B

WELD, MOTOR MOUNT, LH

Note: (61" Models S/N: 2013963421 & Below)

$256.99

$

Usually ships in 2-12 days

0

31

Ferris 5407435B

WELD, MOTOR MOUNT, LH

Note: (61" Models S/N: 2013963422 & Above)

$242.99

$

Usually ships in 2-12 days

0

32

Ferris 5402524B

WELD, MOTOR MOUNT, RH

Note: (44" Models)

$421.99

$

Usually ships in 2-12 days

0

33

Ferris 5403826B

WELD, MOTOR MOUNT, RH

Note: (52" Models)

$

$

Currently unavailable

34

Ferris 5404228B

WELD, MOTOR MOUNT, RH

Note: (61" Models S/N: 2013963421 & Below)

$256.99

$

Usually ships in 2-12 days

0

35

Ferris 5407436B

WELD, MOTOR MOUNT, RH

Note: (61" Models S/N: 2013963422 & Above)

$119.99

$

Usually ships in 2-12 days

0
