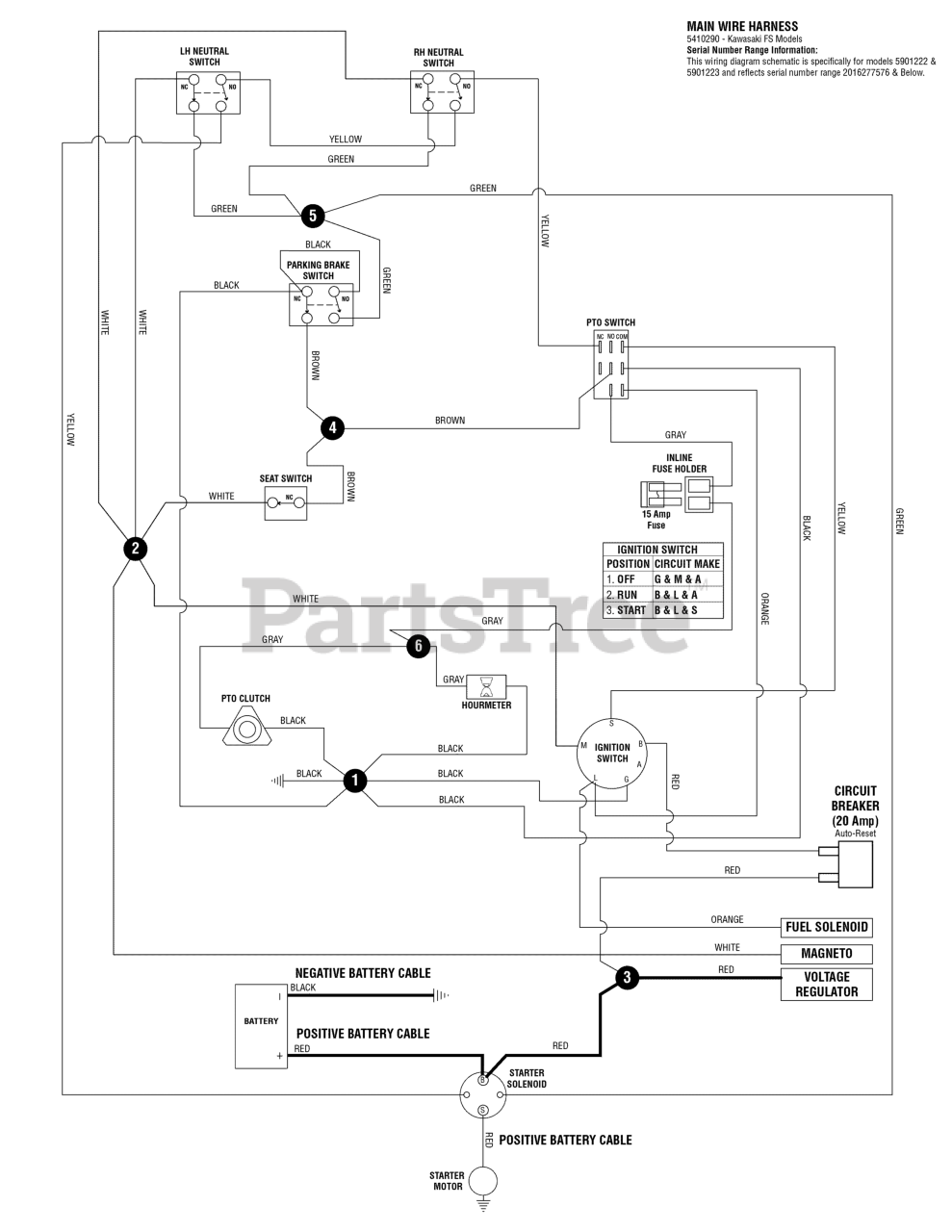

IS 600Z (5901222) - Ferris IS600Z Series 44" Zero-Turn Mower, 19hp Kawasaki, Side-Discharge Electrical Schematic - Charging Circuit (S/N: 2016277576 & Below) Parts Diagram

IS600Z Series 44" Zero-Turn Mower, 19hp Kawasaki, Side-Discharge
