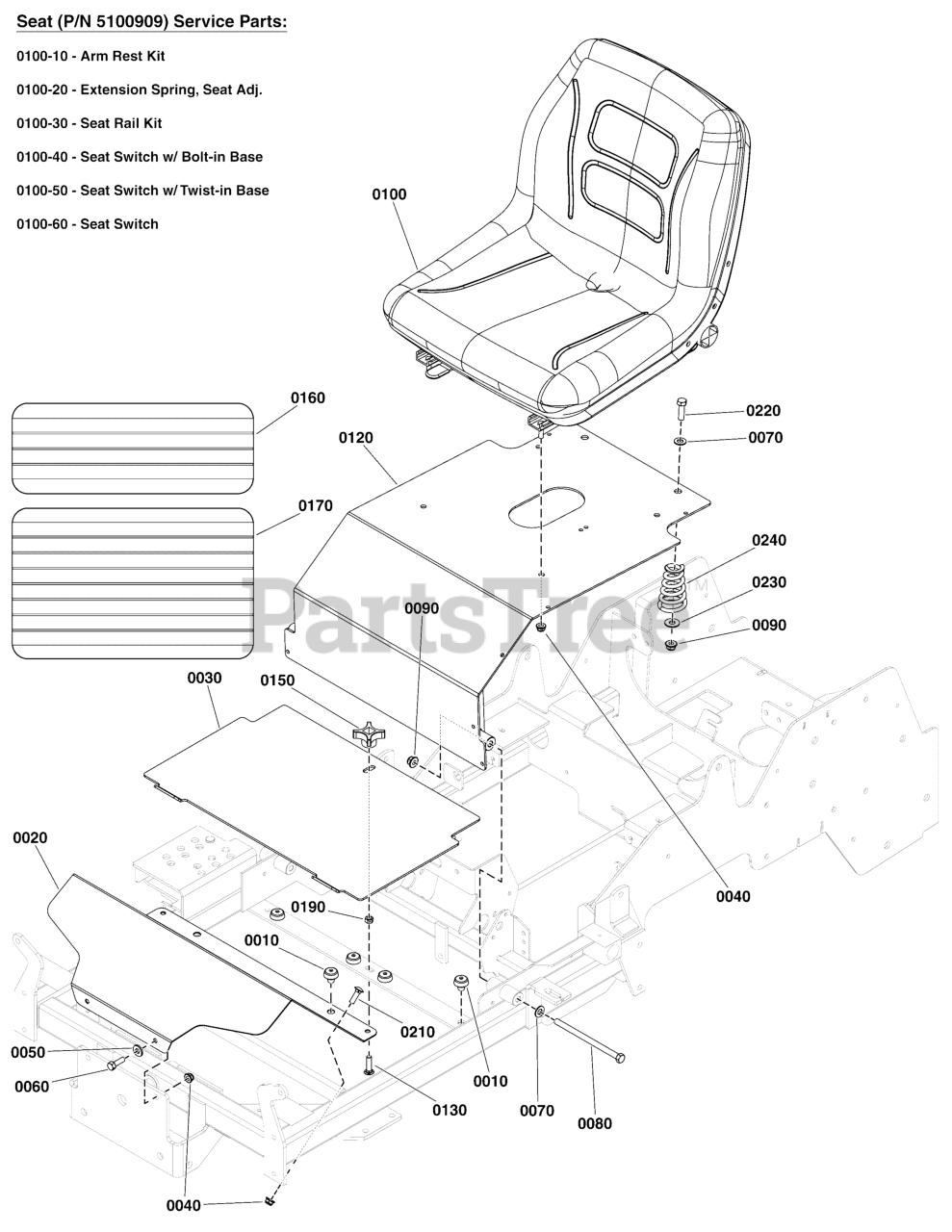

IS 600Z (5901699) - Ferris IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge Seat Mount & Floor Group Parts Diagram

IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge

Seat Mount & Floor Group Parts Diagram

  • Title
0010

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

0020

Ferris 84007982

PLATE, Floor

$59.99

$

Usually ships in 2-12 days

0

0030

Ferris 5410256B

PLATE, FLOOR PAN, REMOVABLE. IS600 - RED
(Superseded to 5410256BFS)

$104.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0050

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 20+

0

0060

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0070

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

0090

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0100

Ferris 5100909

SEAT, NO ARM REST
(Superseded to 5100909SM)

$551.99

$

Usually ships in 2-12 days

0

0100-10

Ferris 1686907

ARM REST KIT (SET OF TWO) (SV)
(Superseded to 1686907SM)

Note: (SV)

$139.99

$

Usually ships in 2-12 days

0

0100-20

Ferris 5100652

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$

$

Currently unavailable

0100-30

Ferris 5061599X1

KIT, SEAT RAILS (COMPLETE)(SV)
(Superseded to 5061599X1SM)

Note: (SV)

$192.99

$

Usually ships in 2-12 days

0

0100-40

Ferris 5100540

SWITCH, NC, W/ BOLT-IN BASE
(Superseded to 5100540YP)

Note: (SV)

$32.99

$

In Stock, only 1 left!

0

0100-50

Ferris 5100541

SWITCH, NC, W/ TWIST-IN BASE

Note: (SV)

$29.99

$

Usually ships in 2-12 days

0

0100-60

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0120

Ferris 5601055

ASSM, SEAT PLATE W/DECALS, IS600Z-DOM (5415897B)

$296.99

$

Usually ships in 2-12 days

0

0130

Ferris 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X10YP)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 1 left!

0

0160

Ferris 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

0170

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

0190

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

0210

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0220

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

0230

Ferris 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

0240

Ferris 5108276

SPRING, SEAT, BLACK E-COAT
(Superseded to 84004561)

$7.99

$

In Stock, only 2 left!

0
