IS 600Z (5901730) - Ferris IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge Wheel & Tire Group Parts Diagram

IS600Z Series 44" Zero-Turn Mower, 25hp Briggs & Stratton, Side-Discharge

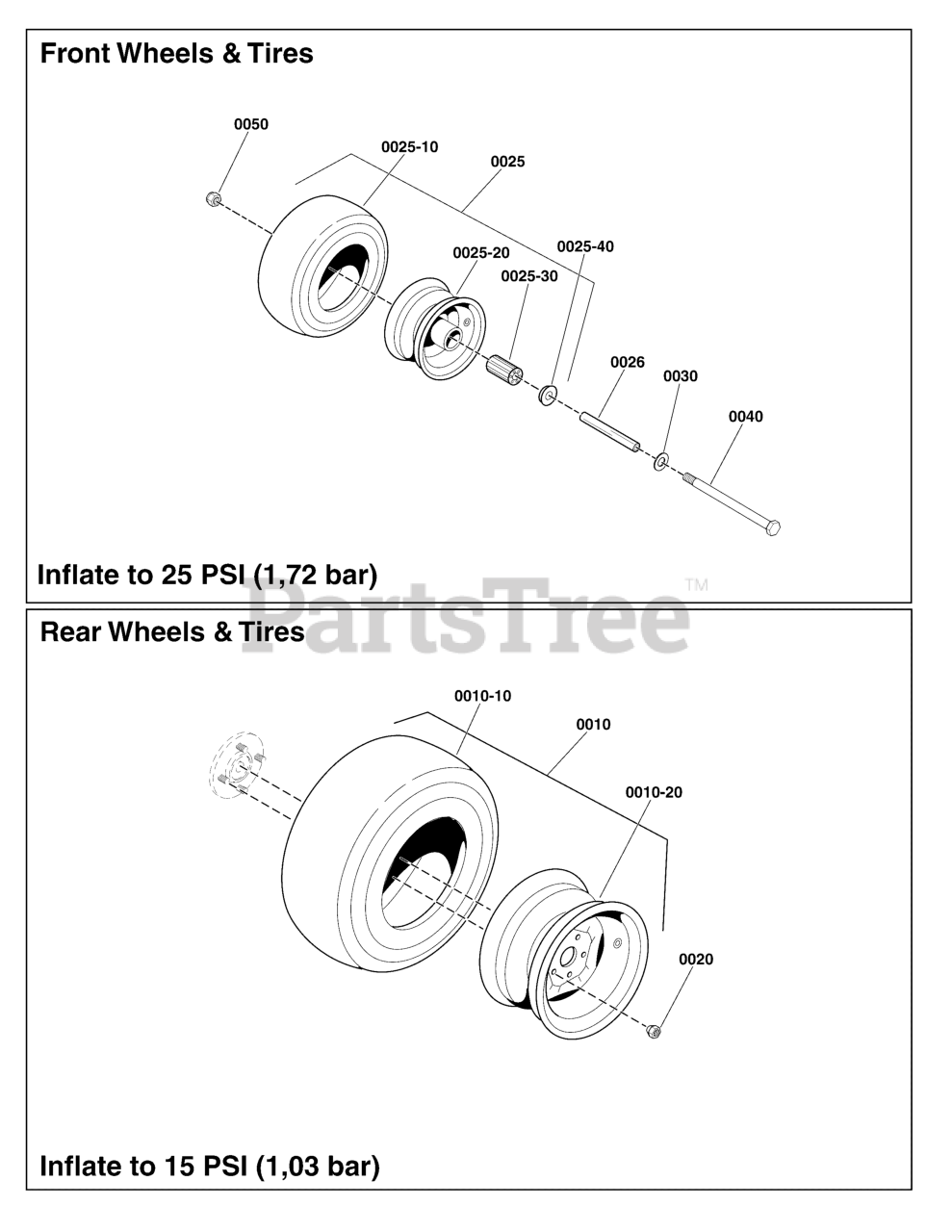

Wheel & Tire Group Parts Diagram

  • Title

0010

Ferris 5103610

TIRE ASM, 20X8.00-10, 4 BOLT
(Superseded to 5103610FS)

$207.99

$

Usually ships in 2-12 days

0

0010-10

Ferris 5101293X1

TIRE, 20 X 8.00-10 NHS, 4 PR TURF MASTER

Note: (One per tire)

$

$

Currently unavailable

0010-20

Ferris 5101661X1

WHEEL, 10 X 7, 4/4 BC, 1.12" POS OFFSET

Note: (One per tire)

$201.99

$

Usually ships in 2-12 days

0

0020

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

Note: (Torque tire lug nut to 90 ft-lbs (122 Nm)

$3.49

$

In Stock, Qty 9

0

0025

Ferris 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

$127.99

$

In Stock, only 1 left!

0

0025-10

Ferris 5022433X1

TIRE, FRONT, 11 X 4.0 - 5 (SV)

Note: (One per tire)

$70.99

$

Usually ships in 2-12 days

0

0025-20

Ferris 5101418X2

WHEEL FOR 11X4.0-5 TIRE ASSM

Note: (One per tire)

$

$

Currently unavailable

0025-30

Ferris 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)

Note: (Two per tire)

$27.99

$

Usually ships in 2-12 days

0

0025-40

Ferris 5021043

RETAINER, BEARING (TWO PER TIRE)(SV)

Note: (Two per tire)

$6.99

$

Usually ships in 2-12 days

0

0026

Ferris 5045996

AXLE, Front Caster
(Superseded to 5045996SM)

$15.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 2 left!

0

0040

Ferris 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, only 1 left!

0

0050

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 7

0
