ISX 2200 (5902079) - Ferris ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki Motion Control Group - Handles and Dampeners Parts Diagram

ISX2200 Series 60" Zero-Turn Mower, 26hp Kawasaki

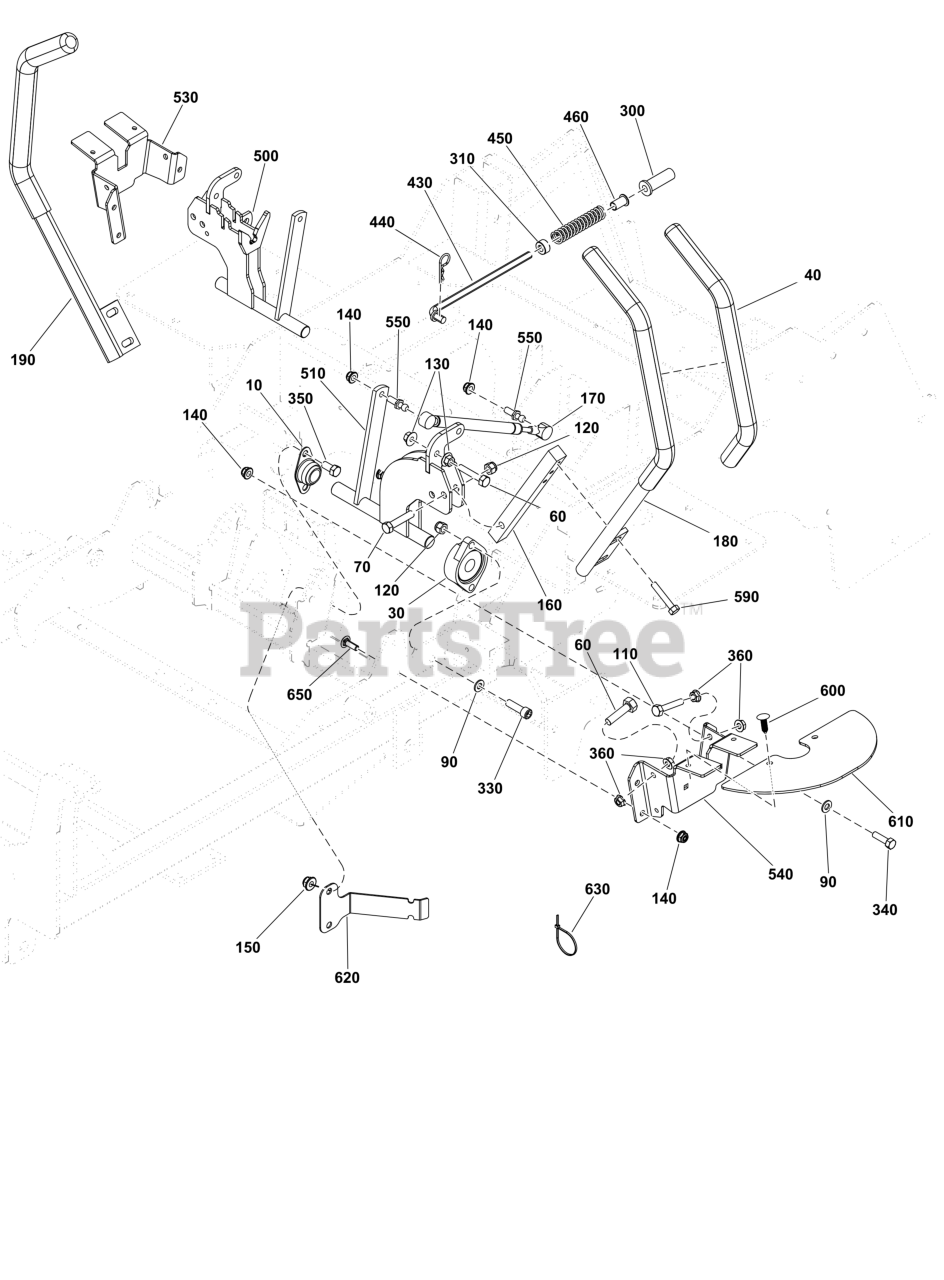

Motion Control Group - Handles and Dampeners Parts Diagram

  • Title

10

Ferris 5021098SM

BEARING, BRONZE FLANG

$13.99

$

In Stock, Qty 5

0

30

Ferris 5021499SM

BEARING, FLANGE

$55.99

$

In Stock, only 2 left!

0

40

Ferris 5104722FS

GRIP

$10.99

$

Usually ships in 2-12 days

0

60

Ferris 5025055X10YP

BOLT, 5/16-18 X 1-1/4

$3.49

$

In Stock, only 1 left!

0

70

Ferris 5025013X14SM

BOLT, 3/8-16 X 1-3/4"

$3.99

$

In Stock, Qty 5

0

90

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 20+

0

110

Ferris 5025055X14SM

BOLT, 5/16-18 X 1-3/4

$3.99

$

Usually ships in 2-12 days

0

120

Ferris 5025096SM

NUT, 3/8-16 HEX NYLON

$3.49

$

In Stock, Qty 6

0

130

Ferris 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

Usually ships in 2-12 days

0

140

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

150

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 13

0

160

Ferris 5103106AYP

MOUNT, CONTROL ARM -

$54.99

$

Usually ships in 2-12 days

0

170

Ferris 5100940SM

DAMPNER, CONTROL

$55.99

$

Usually ships in 2-12 days

0

180

Ferris 84004629

CONTROL, HANDLE

Note: (Includes ref # 40).

$49.99

$

Usually ships in 2-12 days

0

190

Ferris 84004630

CONTROL, HANDLE

Note: (Includes ref # 40).

$49.99

$

In Stock, only 1 left!

0

300

Ferris 5104375YP

BUSHING, FLANGED, 3/8

$5.99

$

Usually ships in 2-12 days

0

310

Ferris 5010546SM

COLLAR, 3/8" SET

$5.99

$

Usually ships in 2-12 days

0

330

Ferris 5025327SM

BOLT, 3/8-16 X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

340

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, Qty 6

0

350

Ferris 5025013X6SM

BOLT, 3/8-16 X 3/4" G

$3.99

$

Usually ships in 2-12 days

0

360

Ferris 5025127SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, Qty 7

0

430

Ferris 5100947SM

ROD, NEUTRAL

$7.99

$

Usually ships in 2-12 days

0

440

Ferris 5025210YP

PIN, HAIR, .0915 X 1-7/8

$3.99

$

In Stock, only 1 left!

0

450

Ferris 5022645SM

SPRING, REVERSE RETUR

$9.49

$

In Stock, only 1 left!

0

460

Ferris 5023260SM

BUSHING, NYLON

$6.49

$

In Stock, only 2 left!

0

500

Ferris 5416664AYP

SHAFT-CONTROL

$62.99

$

Usually ships in 2-12 days

0

510

Ferris 5416663AYP

SHAFT-CONTROL

$64.99

$

Usually ships in 2-12 days

0

530

Ferris 5416170AYP

PLATE

$42.99

$

Usually ships in 2-12 days

0

540

Ferris 5416171AYP

PLATE

$42.99

$

Usually ships in 2-12 days

0

550

Ferris 5101307SM

10MM BALL STUD, 5/16-

$5.49

$

Usually ships in 2-12 days

0

590

Ferris 703354

SCREW, 5/16-18

$5.49

$

In Stock, Qty 12

0

600

Ferris 5025431SM

PUSH RIVET (TREE TYPE

$4.49

$

Usually ships in 2-12 days

0

610

Ferris 5401248SM

GUARD, RUBBER MOTION

$8.49

$

Usually ships in 2-12 days

0

620

Ferris 5413137AYP

BRACKET, HARNESS MOUNT, 2100 - BLK

$9.99

$

Usually ships in 2-12 days

0

630

Ferris 5021030SM

TIE WRAP, 5-1/2" LONG

$2.99

$

In Stock, only 3 left!

0

650

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

Usually ships in 2-12 days

0
