ISX 2200 (5902092) - Ferris ISX2200 Series 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

ISX2200 Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

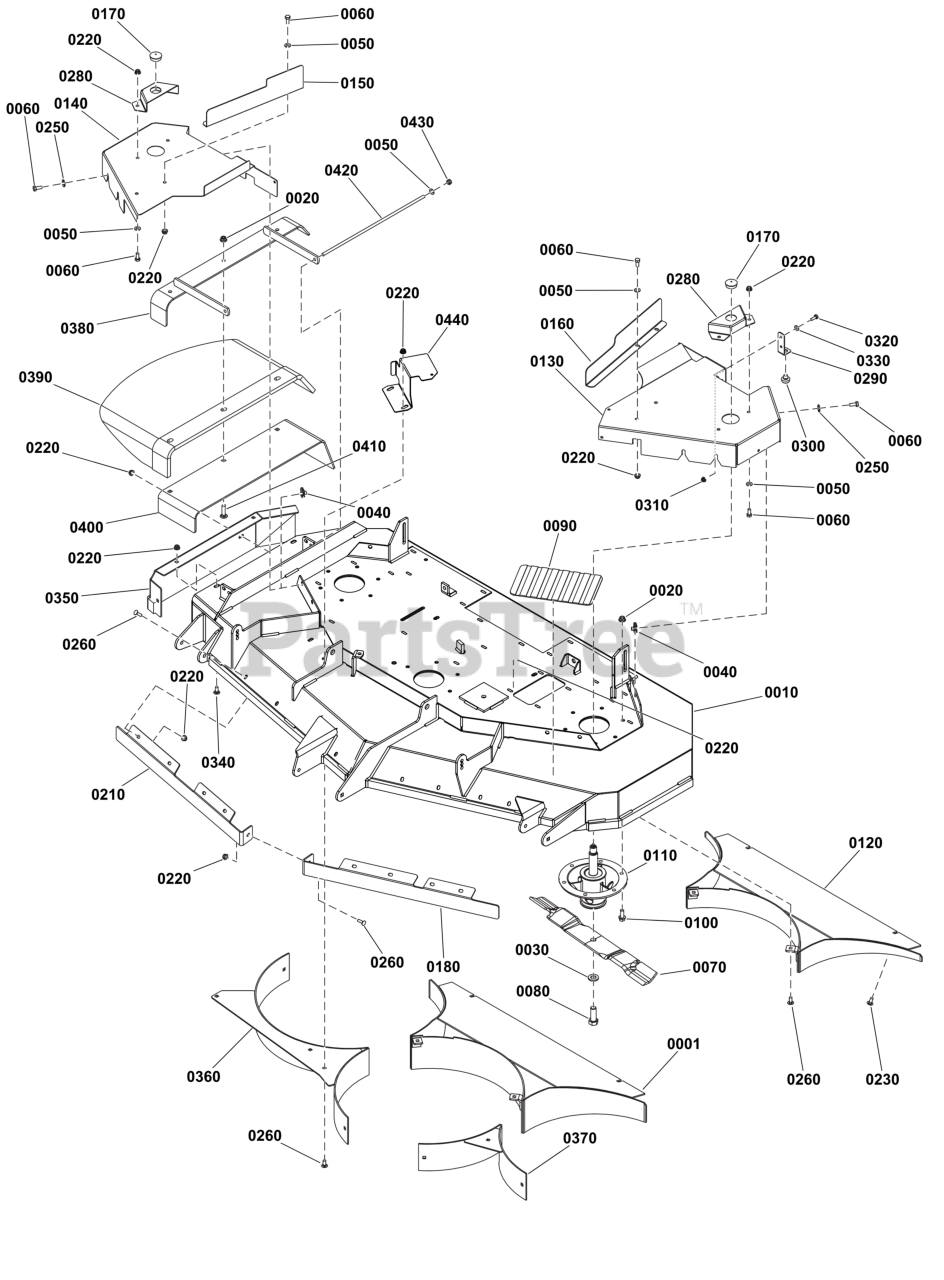

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

0001

Ferris 5420814AA

WELD, REAR BAFFLE, TALL, 3300CE-61 - BLK

$

$

Currently unavailable

0010

Ferris 5601523

DECK SHELL W/DECALS, 2200-61 SRDCE

Note: (Includes Safety decals.)

$

$

Currently unavailable

0020

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 17

0

0030

Ferris 5025477SM

WASHER, 5/8" YZ

$3.99

$

In Stock, Qty 12

0

0040

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, Qty 10

0

0050

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 20+

0

0060

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, Qty 6

0

0070

Ferris 5103305S

BLADE, SET, MULCH, 61 DECK

Note: (Set of 3 blades)

$84.99

$

Usually ships in 2-12 days

0

0080

Ferris 770136

BOLT

Note: (Torque blade mounting bolt to: 120 ft-lbs (163 Nm))

$4.49

$

In Stock, Qty 20+

0

0090

Ferris 5101005SM

SAFETY WALK

$15.99

$

In Stock, only 1 left!

0

0100

Ferris 5025390X8FS

BOLT

Note: (Torque spindle mounting bolt to: 30 ft-lbs (41 Nm))

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 5104744YP

ASSEMBLY-SPINDLE

$198.99

$

Usually ships in 2-12 days

0

0120

Ferris 5420813AAFS

BAFFLE

$192.99

$

Usually ships in 2-12 days

0

0130

Ferris 5416399BFS

GUARD, PULLEY

$67.99

$

Usually ships in 2-12 days

0

0140

Ferris 5416398BFS

GUARD, RH

$64.99

$

Usually ships in 2-12 days

0

0150

Ferris 5414962BFS

GUARD, PULLEY

$17.99

$

Usually ships in 2-12 days

0

0160

Ferris 5414963BFS

GUARD, LH

$18.99

$

Usually ships in 2-12 days

0

0170

Ferris 5023484SM

PLUG, PANEL, 1.25 - B

$3.99

$

In Stock, only 1 left!

0

0180

Ferris 5414791BFS

BAFFLE

$32.99

$

Usually ships in 2-12 days

0

0210

Ferris 5414758BFS

BAFFLE

$34.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 703448

BOLT, 3/8-16X.75 G5

$4.49

$

In Stock, Qty 20+

0

0250

Ferris 5025292SM

WASHER, 5/16" GD.9 FL

$3.99

$

In Stock, only 4 left!

0

0260

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

Usually ships in 2-12 days

0

0280

Ferris 5416400BFS

GUARD

$23.99

$

Usually ships in 2-12 days

0

0290

Ferris 5419137B

BRACKET, SPNDL GUARD, 61 3IN1 - RED

$

$

Currently unavailable

0300

Ferris 197546GS

MOUNT-VIBRATION

$7.99

$

Usually ships in 2-12 days

0

0310

Ferris 5025391FS

NUT

$3.99

$

Usually ships in 2-12 days

0

0320

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 13

0

0330

Ferris 84007033

WASHER

$4.49

$

Usually ships in 2-12 days

0

0450

Ferris 703814

BOLT, RD HD, 3/8-16X1

$4.49

$

In Stock, only 4 left!

0

0350

Ferris 5420807B

WELD, PLATE, BLOCK OFF, 61 - RED

$

$

Currently unavailable

0360

Ferris 5421093AA

WELD, FRONT BAFFLE, RH, 61 - BLK

$

$

Currently unavailable

0370

Ferris 5421097AA

WELD, FRONT BAFFLE, LH, 61 - BLK

$

$

Currently unavailable

0380

Ferris 84008047

FRAME, Chute

$91.99

$

Usually ships in 2-12 days

0

0390

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

In Stock, only 1 left!

0

0400

Ferris 84008077

PLATE, Support

$129.99

$

Usually ships in 2-12 days

0

0410

Ferris 5025146X12YP

BOLT, 3/8-16 X 1-1/2

$3.99

$

In Stock, only 1 left!

0

0420

Ferris 5061300FS

ROD

$11.99

$

Usually ships in 2-12 days

0

0430

Ferris 5025045SM

NUT, 5/16-24 HEX NYLO

$3.49

$

In Stock, Qty 6

0

0440

Ferris 5419362B

GUARD, FRONT CUTTER DECK, 61" CE - RED

$

$

Currently unavailable
