ISX 3300 (5902036) - Ferris ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton CE Guarding Group Parts Diagram

ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton

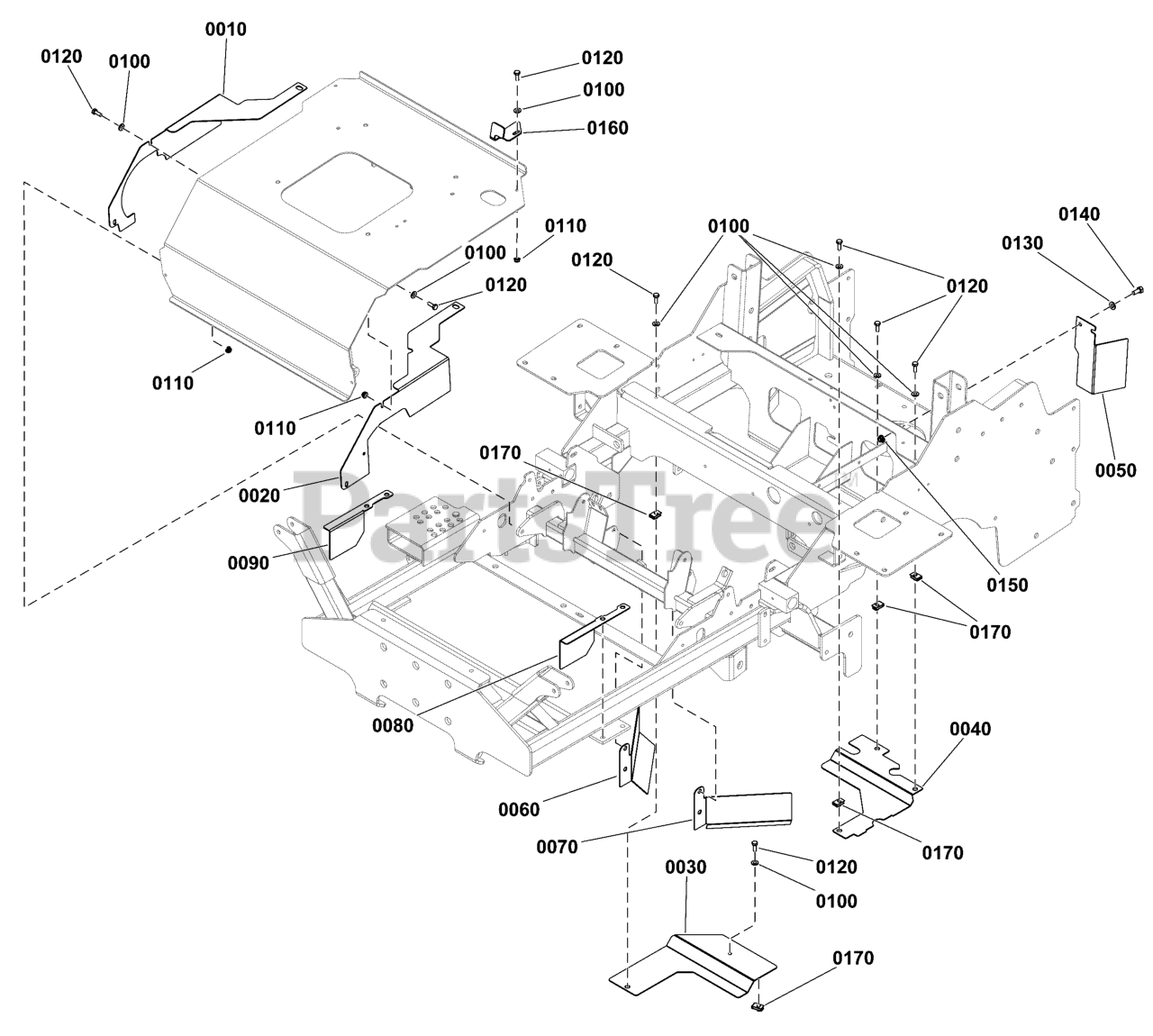

CE Guarding Group Parts Diagram

  • Title

0010

Ferris 5420709B

PLATE, GUARD, SEAT PLTFRM RH IS3200 - RED

$

$

Currently unavailable

0020

Ferris 5420710B

PLATE, GUARD, SEAT PLTFRM LH IS3200 - RED

$

$

Currently unavailable

0030

Ferris 5419343AA

PLATE, FAN GUARD-RH, 3200-CE HYD - BLK

$

$

Currently unavailable

0040

Ferris 5419263AA

GUARD, DEBRIS, IS3200Z-CE HYD - BLK

$

$

Currently unavailable

0050

Ferris 5416300B

PLATE, GUARD, LH CE, IS3200 - RED

$

$

Currently unavailable

0060

Ferris 5416378B

PLATE, CRADLE BELT GUARD, RH - RED

$

$

Currently unavailable

0070

Ferris 5416379B

PLATE, CRADLE BELT GUARD, LH - RED

$

$

Currently unavailable

0080

Ferris 5416395B

PLATE, FRAME GUARD, RH - RED

$

$

Currently unavailable

0090

Ferris 5416396B

PLATE, FRAME GUARD, LH - RED

$

$

Currently unavailable

0100

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0110

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

0130

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0140

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

0150

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0160

Ferris 80080168AA

SEAT LATCH, 3200, CE - BLK

$

$

Currently unavailable

0170

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0
