ISX 3300 (5902036) - Ferris ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton Deck Lift Group - Hydraulic Lift Parts Diagram

ISX3300 Series Zero-Turn Mower, 40hp Briggs & Stratton

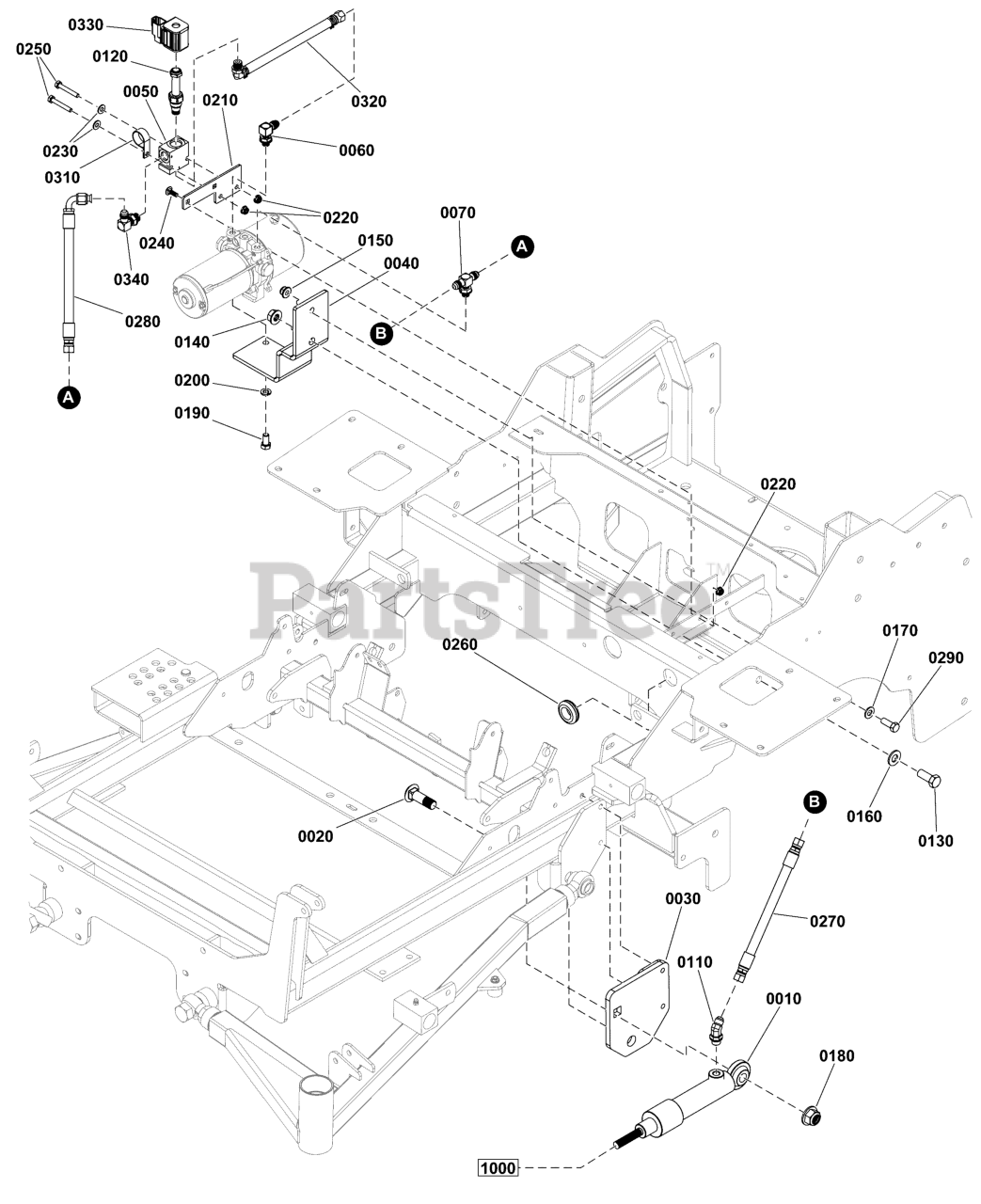

Deck Lift Group - Hydraulic Lift Parts Diagram

  • Title

0010

Ferris 5107440

CYLINDER, HYD, DECK LIFT
(Superseded to 5107440FS)

$663.99

$

Usually ships in 2-12 days

0

0020

Ferris 5025658

BOLT, CARRIAGE, 5/8-11 X 2.0" CZ

$

$

Currently unavailable

0030

Ferris 5419191B

WELD, CYLINDER MOUNT, 3200 CE - RED
(Superseded to 5419191BFS)

$62.99

$

Usually ships in 2-12 days

0

0040

Ferris 5419181B

PLATE, PUMP MOUNT, 3200-HYD - RED
(Superseded to 5419181BFS)

$25.99

$

Usually ships in 2-12 days

0

0050

Ferris 5107782

MANIFOLD, #6 PORTS, BO8-2-A6T
(Superseded to 5107782FS)

$99.99

$

Usually ships in 2-12 days

0

0060

Ferris 5107791

FITTING, 90 DEG, 6801-6-4 NWO

$

$

Currently unavailable

0070

Ferris 5107789

FITTING, HYD, TEE, 6803-6-6-4 NWO

$

$

Currently unavailable

0110

Ferris 5107822

FITTING, HYD, ELB, 6802-6-6-NWO, 45 DEG

$

$

Currently unavailable

0120

Ferris 5107780

VALVE, HYD, N.O. DSL08INR
(Superseded to 5107780FS)

$227.99

$

Usually ships in 2-12 days

0

0130

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 9

0

0150

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 14

0

0160

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

0170

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0180

Ferris 5025403

NUT, 5/8-11 HEX NYLOCK FLANGE
(Superseded to 5025403YP)

$6.99

$

In Stock, only 4 left!

0

0190

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 3 left!

0

0210

Ferris 5419233B

PLATE, MANIFOLD MOUNT, 3200-HYD - RED
(Superseded to 5419233BFS)

$13.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

0230

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0240

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 3 left!

0

0250

Ferris 5025010X14

BOLT, 1/4 X 20 X 1-3/4 GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

0260

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

0270

Ferris 5107761

HOSE ASM, 24", IS3200 DECK LIFT
(Superseded to 5107761FS)

$96.99

$

Usually ships in 2-12 days

0

0280

Ferris 5107762

HOSE ASM, 11" X 90 DEG, IS3200 DECK LIFT
(Superseded to 5107762FS)

$110.99

$

Usually ships in 2-12 days

0

0290

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

0310

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0320

Ferris 5421800

ASSY, RETURN HOSE, 3300CE-HYD

$

$

Currently unavailable

0330

Ferris 5107781

COIL, VALVE, HYD, CCP012H

$

$

Currently unavailable

0340

Ferris 5102933

FITTING, 90DEG, #6 JIC TO #6 ORING MALE
(Superseded to 5102933FS)

$9.99

$

Usually ships in 2-12 days

0

1000

Refer to: Deck Lift Group - Foot Pedal and Linkages

$

$

Not available
